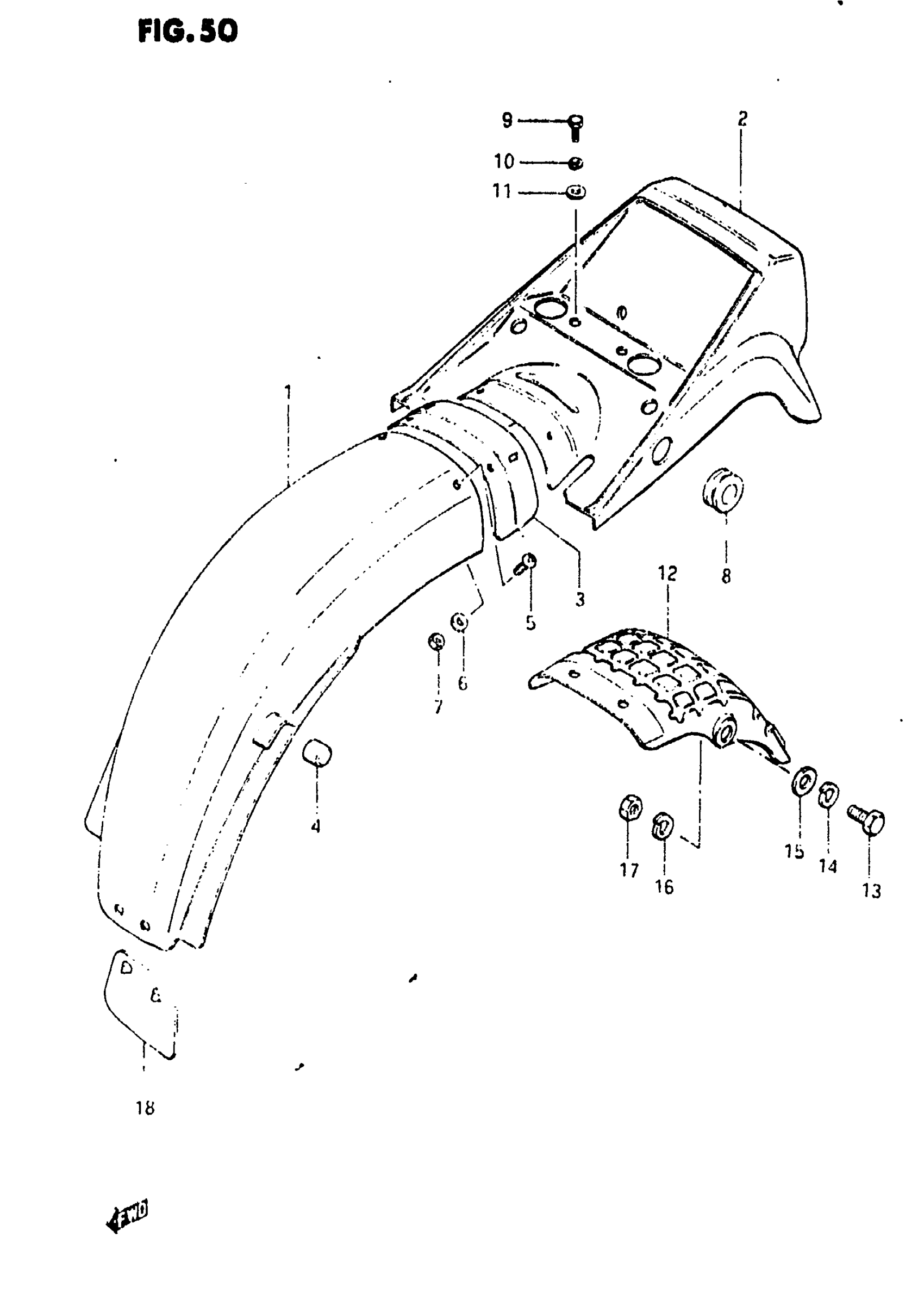

Suzuki GS650M (1983) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-34202

Unavailable

2

BODY, REAR FENDER REAR

63113-34320

Unavailable

3

JOINT, REAR FENDER

63255-34200

Unavailable

4

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

5

SCREW This part replaces 02142-05128.

02142-05127

$1.97

6

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

7

NUT This part replaces 08310-11058.

08310-00057

$1.84

8

GROMMET

45522-49200

$4.58

9

BOLT This part replaces 01107-06208.

01500-06207

$2.28

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

WASHER This part replaces 09160-06007.

09160-06084

$1.78

12

REINFORCEMENT

63120-34301

Unavailable

13

BOLT This part replaces 01107-08258.

01500-08257

$2.50

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

NUT This part replaces 08310-12088.

08310-00087

$2.13

18

MUD GUARD

63411-31900

Unavailable
