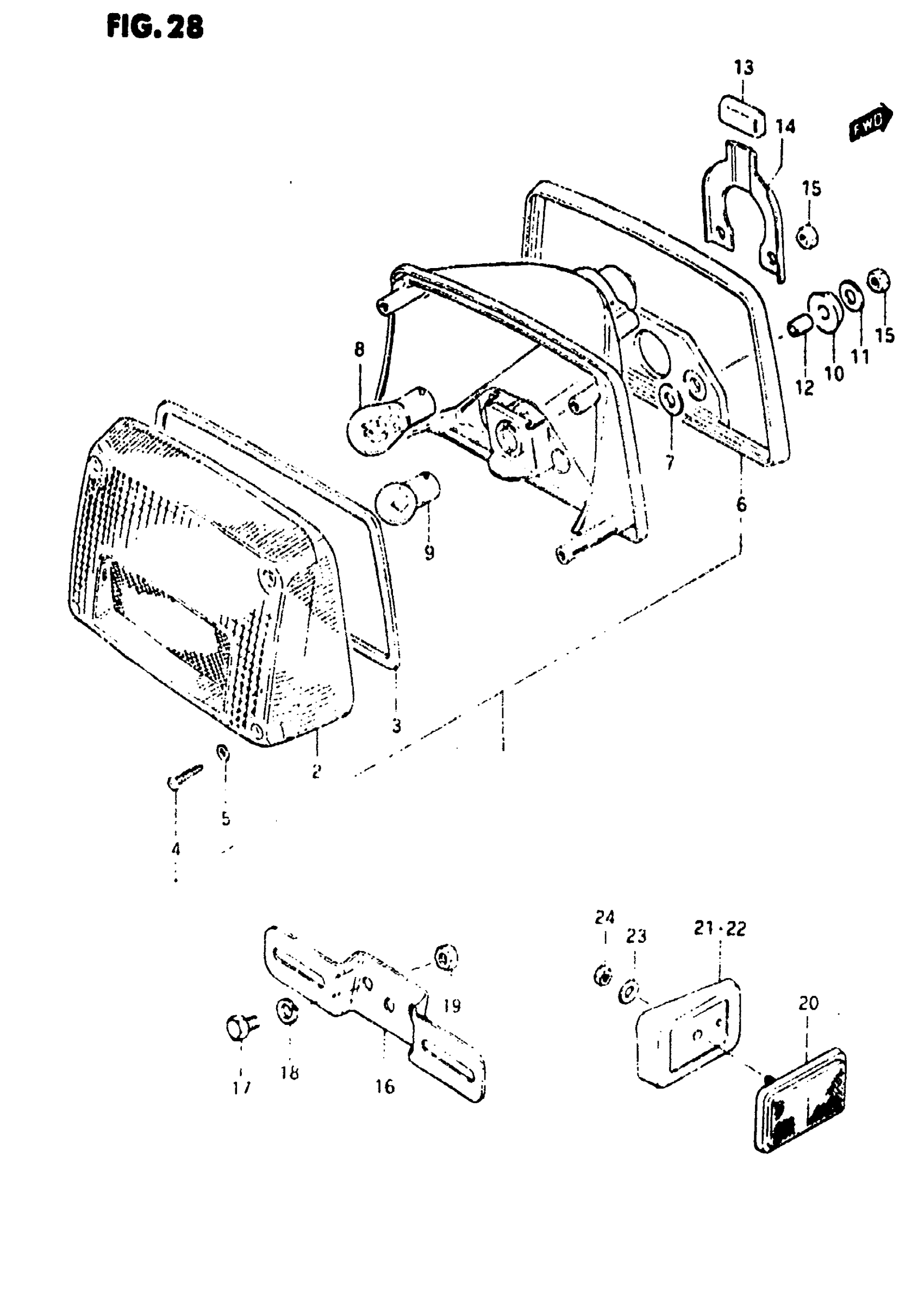

Suzuki GS650M (1983) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP, REAR COMBINATION | Includes Item(s) 2 - 9

35710-34310

Unavailable

2

LENS

35712-49031

$67.73

3

GASKET

35713-49030

Unavailable

4

SCREW This part replaces 35627-49030.

03511-0416A

$1.78

5

GASKET

35627-43010

$2.28

6

CUSHION

35733-34310

Unavailable

7

WASHER

35727-34310

Unavailable

8

BULB (12V,23/8W)

09471-12035

$4.49

9

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

Unavailable

10

CUSHION

35764-26451

Unavailable

11

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

12

SPACER (6.5X9X10.5) This part replaces 09180-06090.

09180-06264

$2.23

13

CUSHION

35764-34300

Unavailable

14

PLATE

35793-34300

Unavailable

15

NUT This part replaces 08316-26068.

08316-2006A

$2.63

16

BRACKET, LICENSE PLATE

35927-34330

Unavailable

17

BOLT This part replaces 01517-06128.

01550-06127

$2.30

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

.NUT This part replaces 08310-11068.

08310-00067

$2.13

20

REFLEX REFLECTOR, REAR SIDE This part replaces 35970-49310.

35970-08A30

Unavailable

21

SPACER, RH

35977-47730

Unavailable

22

SPACER, LH

35978-47730

Unavailable

23

WASHER

09160-05013

$1.49

24

NUT This part replaces 08310-11058.

08310-00057

$1.84
