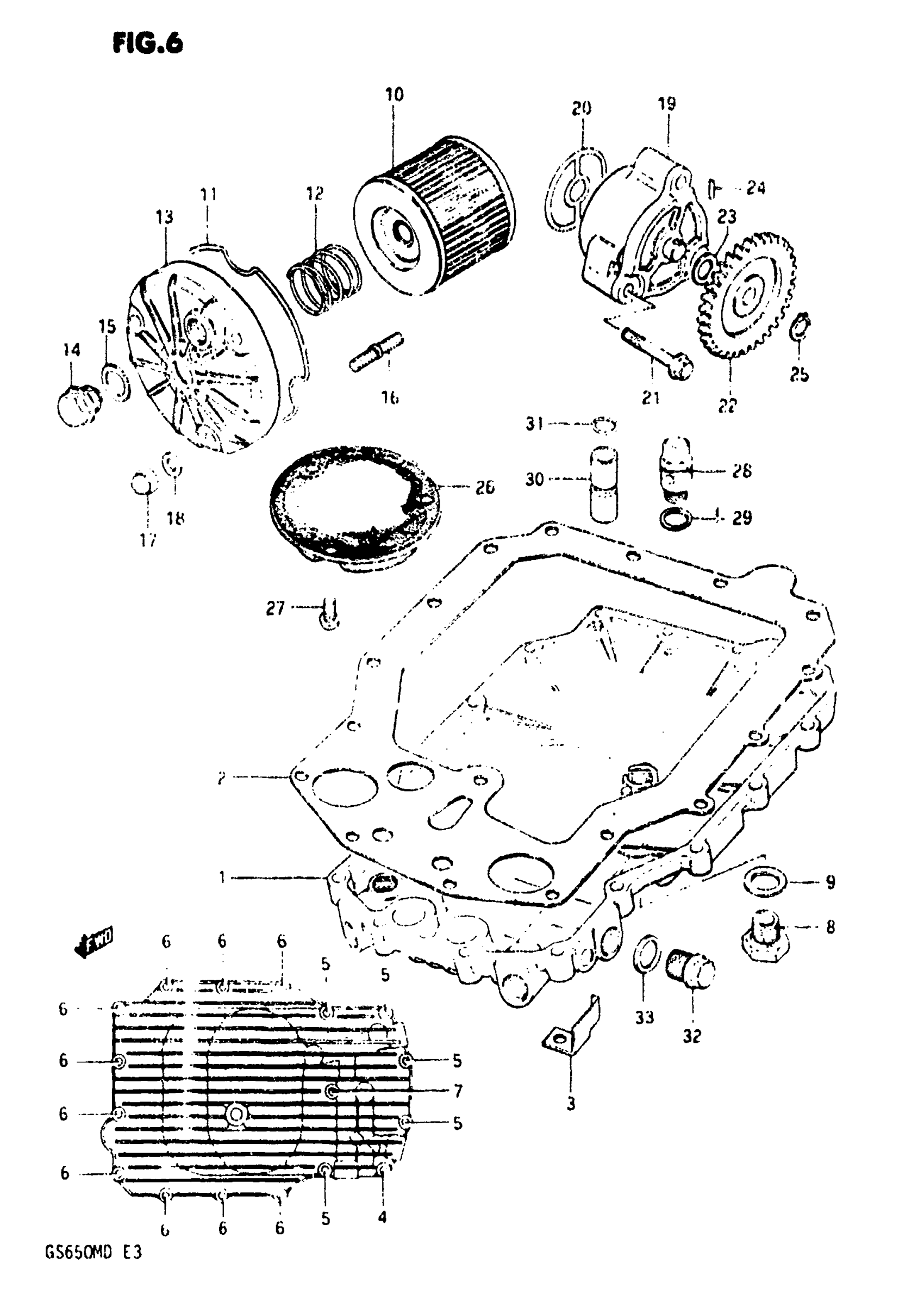

Suzuki GS650M (1983) OIL PUMP - OIL FILTER Diagram

#

Description
Price

1

PAN, OIL

11510-34310

Unavailable

2

GASKET,OIL PAN( This part replaces 11489-34201.

11489-34210

Unavailable

3

PLATE

11515-34310

Unavailable

4

BOLT This part replaces 09100-06033.

64455-07L00

$1.59

5

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

6

BOLT This part replaces 01517-06255.

01550-0625A

$1.97

7

BOLT This part replaces 01517-06355.

01550-0635A

$2.32

8

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

9

GASKET

09168-14004

$1.83

10

FILTER, ENGINE OIL

16510-45040

$5.96

11

O RING

16518-45000

$5.70

12

SPRING

09440-32004

$2.92

13

NO DESCRIPTION AVAILABLE This part replaces 16512-33300.

16512-33311

Unavailable

14

PLUG This part replaces 09247-14012.

09247-14026

$3.76

15

GASKET

09168-14004

$1.83

16

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

17

NUT This part replaces 08313-11065.

08313-1006A

$1.84

18

.WASHER This part replaces 08322-21065.

08322-0106B

$2.26

19

PUMP, ENGINE OIL

16400-34310

Unavailable

20

O RING This part replaces 16491-49200.

16491-31300

$13.90

21

BOLT This part replaces 01517-06408.

01550-06407

$2.69

22

GEAR, OIL PUMP DRIVEN | NT:33

16331-49000

Unavailable

23

WASHER

08221-10185

$2.15

24

PIN

09261-04009

$1.56

25

CIRCLIP

08331-31109

$1.78

26

STRAINER, ENGINE OIL

16520-34200

Unavailable

27

SCREW This part replaces 02112-06128.

02112-06127

$1.84

28

VALVE ASSY, OIL RELIEF This part replaces 16440-33300.

16440-11D00

$59.07

29

WASHER

08212-14181

Unavailable

30

BYPASS, OIL REGULATOR

16449-34200

Unavailable

31

O RING, OIL GALLERY This part replaces 09280-12005.

09280-12012

$4.64

32

PLATE

09247-16002

Unavailable

33

WASHER

09168-16002

$1.91
