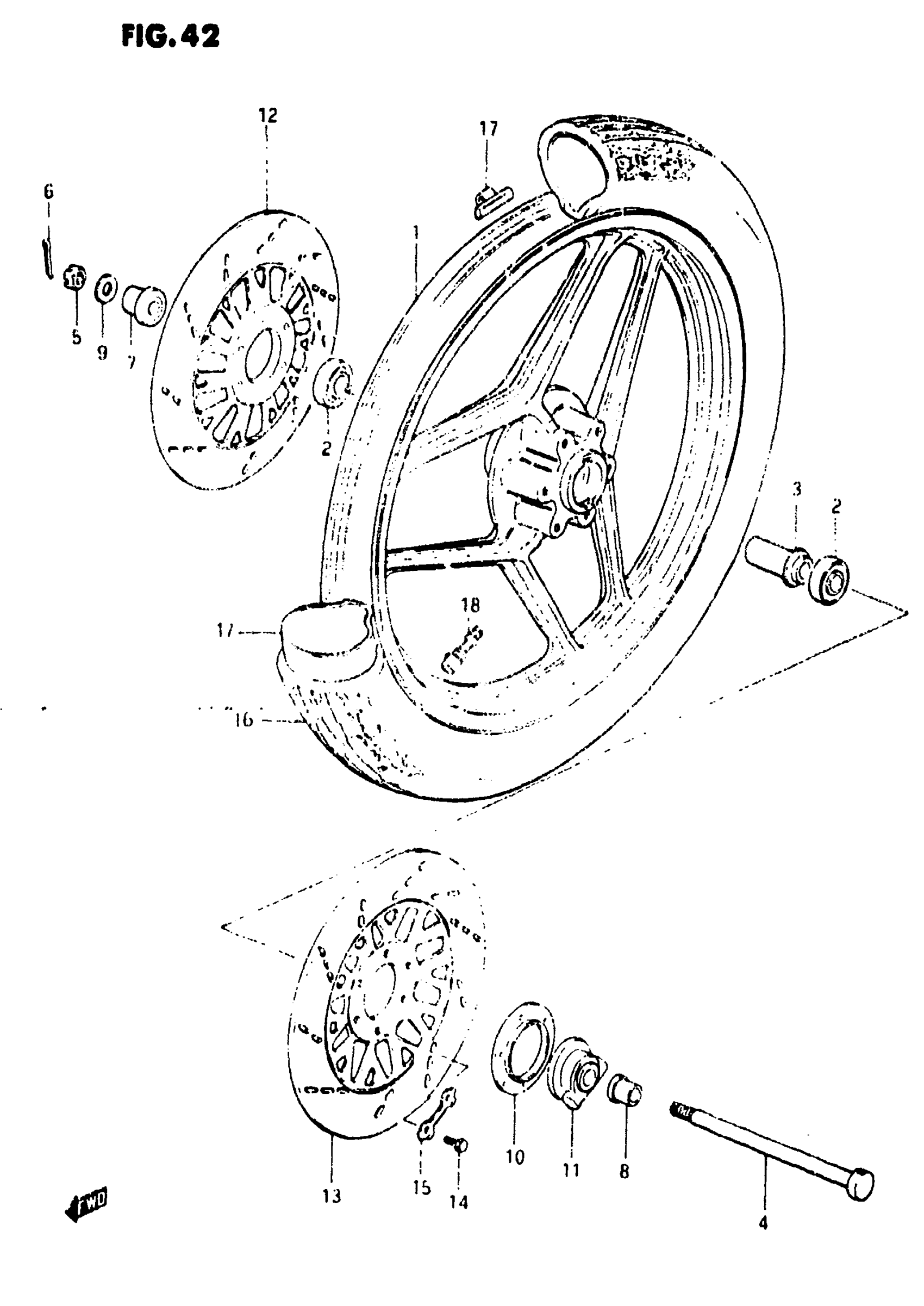

Suzuki GS650M (1983) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (1.85-19)

54111-34300-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING, RH

54740-18410

$20.45

8

SPACER, AXLE (15X22X30)

09180-15034

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

DUST SEAL

54871-45010

Unavailable

11

BOX ASSY,SPEEDO This part replaces 54600-18401.

54600-18403

Unavailable

12

DISK, FRONT BRAKE RH

59211-45260

Unavailable

13

DISK, FRONT BRAKE LH

59221-45260

Unavailable

14

BOLT

09100-08175

Unavailable

15

WASHER This part replaces 09169-08029.

09169-08016

$2.41

16

TIRE (3.25H19T/L) | BS

55100-34331

Unavailable

17

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

$7.05

17

BALANCER (30G)

55412-45100

Unavailable

17

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

$1.49

18

VALVE, TUBLESS This part replaces 55220-45100.

43130-24A40

$22.08
