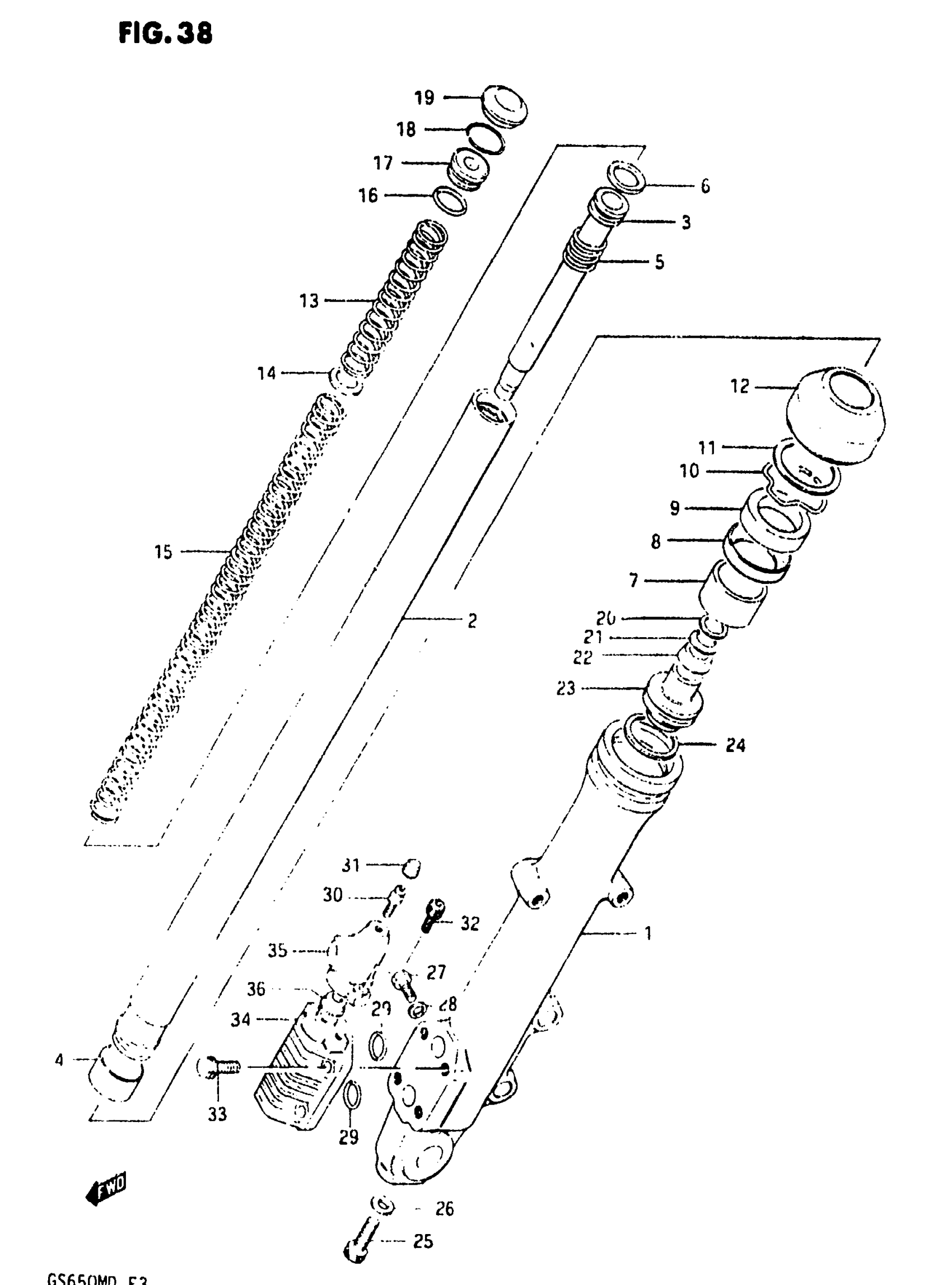

Suzuki GS650M (1983) FRONT RIGHT DAMPER Diagram

#

Description
Price

0

FRONT RH DAMPER | Includes Item(s) 1 - 36

51103-34370

Unavailable

1

OUTER TUBE RH

51130-34330

Unavailable

2

INNER TUBE

51110-34370

Unavailable

3

CYLINDER

51146-34370

Unavailable

4

PISTON

51121-34210

Unavailable

5

SPRING REBOUND

51177-34210

Unavailable

6

RING PISTON

51196-34210

Unavailable

7

BUSH, GUIDE This part replaces 51152-34210.

51152-25D00

$17.61

8

SPACER, SEAL This part replaces 51168-34210.

51168-38A00

$6.72

9

SEAL, OIL This part replaces 51153-09310.

51153-03B30

$18.51

10

RING BACK UP

51158-34320

Unavailable

11

CIRCLIP INTERNAL

51556-34320

Unavailable

12

DUSTSEAL This part replaces 51571-45200.

51571-34320

Unavailable

13

SPRING A

51171-34370

Unavailable

14

GUIDE, SPRING

51172-34370

$3.37

15

SPRING B

51184-34370

Unavailable

16

O RING

51117-34210

Unavailable

17

SEAT, SPRING

51175-34210

Unavailable

18

RING, STOPPER

51169-34210

Unavailable

19

CAP

51189-34210

Unavailable

20

VALVE C

51126-34310

Unavailable

21

VALVE SPRING

51127-34310

Unavailable

22

OIL LOCK PIECE VALVE

51125-34310

Unavailable

23

PIECE, OIL LOCK This part replaces 51195-34320.

51195-34370

Unavailable

24

PISTON RING

51123-34320

Unavailable

25

BOLT

51147-48130

$4.34

26

O RING This part replaces 51148-31030.

51148-36011

$3.56

27

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

28

GASKET

51183-31030

$3.77

29

O-RING (D:2.4,ID:15.8) This part replaces 51799-11420.

09280-15007

$1.70

30

SCREW

51778-11420

Unavailable

31

BLEEDER CAP

51779-11420

Unavailable

32

BOLT This part replaces 51797-11420.

07130-05167

$3.15

33

BOLT This part replaces 51796-11420.

07130-06167

$3.16

34

MODULATOR VALVE SET

51700-34840

Unavailable

35

MODULATOR PLUNGER SET RH

51700-11840

Unavailable

36

SEPARTOR

51777-11420

Unavailable
