1983 Suzuki GS650M Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1983 Suzuki GS650M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

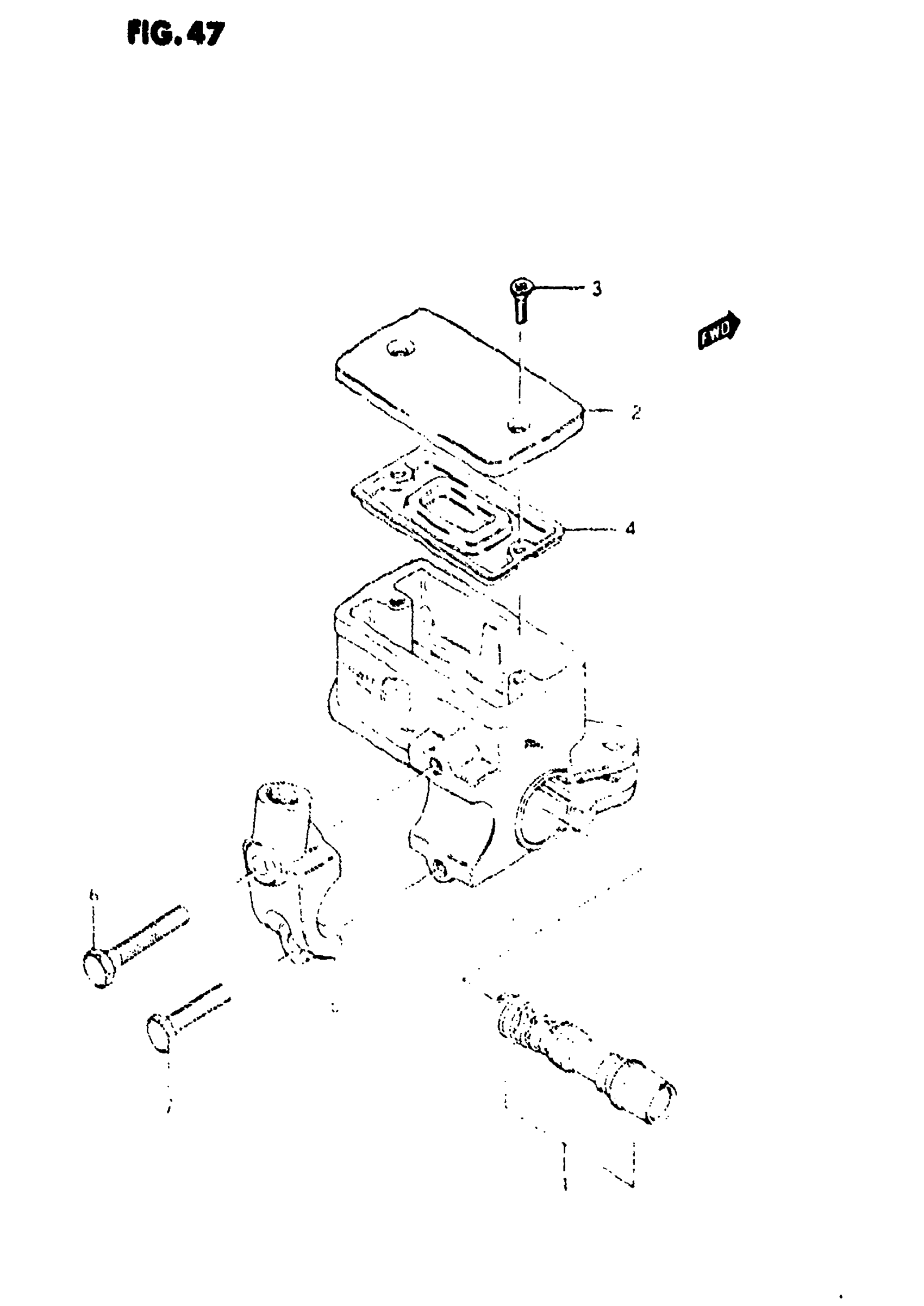

1983 Suzuki GS650M Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 7 This part replaces 59600-34240.

59600-34260

1
Out of stock

1

CUP SET MASTER This part replaces 59600-49830.

59600-49831

1
Out of stock

2

CAP This part replaces 59669-49330.

59669-49350

1
Out of stock

3

SCREW This part replaces 59691-49300.

59691-49310

2
Out of stock

4

DIAPHRAGM,MASTE This part replaces 59667-49300.

59667-49301

1
Out of stock

5

HOLDER

59671-49000

1
Out of stock

6

BOLT, UPPER

59694-49001

1
Out of stock

7

BOLT, LOWER

59693-49001

1
Out of stock
