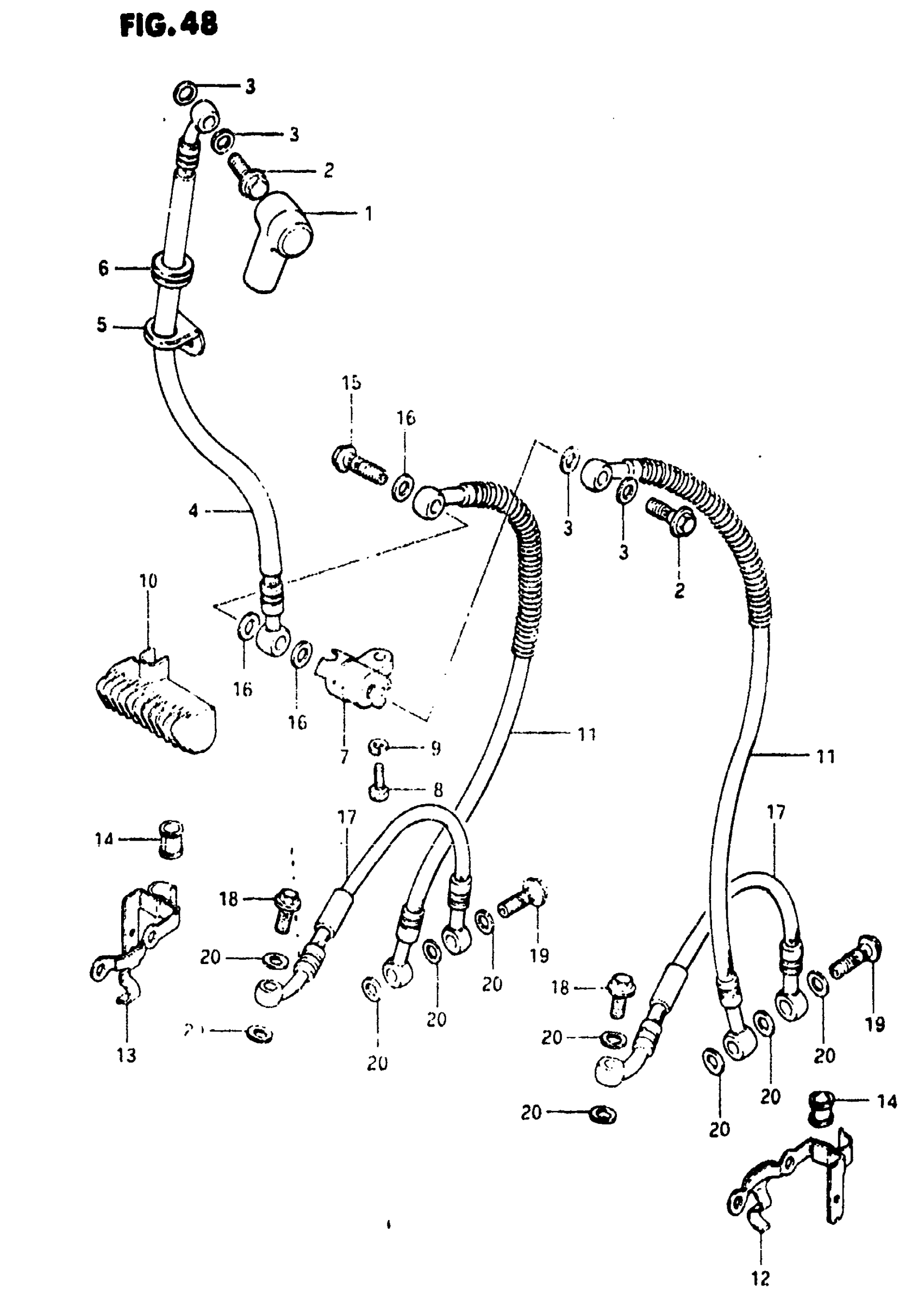

Find the part on the Front Brake Hose diagram for your 1983 Suzuki GS650M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS650M Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT, MASTER CYLINDER

59711-49001

1

$7.70

In stock

2

UNION This part replaces 09360-10009.

09360-10017

2
Out of stock

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock

4

HOSE, BRAKE NO.1

59480-34320

1
Out of stock

5

GUIDE, HOSE

59243-31010

1
Out of stock

6

GROMMET This part replaces 09308-14007.

09308-14009

1
Out of stock

7

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

1
Out of stock

8

1

$2.48

In stock

9

1

$2.28

In stock

10

COVER

59495-34300

1
Out of stock

11

HOSE, BRAKE NO.2

59240-47700

2
Out of stock

12

CLAMP, LH

59270-34350

1
Out of stock

13

CLAMP, RH

59260-34350

1
Out of stock

14

BUSHING

59244-49000

2
Out of stock

15

1

$7.38

In stock

16

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

3
Out of stock

17

HOSE, ANTI DIVE

59520-45910

2
Out of stock

18

UNION This part replaces 09360-10009.

09360-10017

2
Out of stock

19

2

$7.38

In stock

20

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

10
Out of stock
