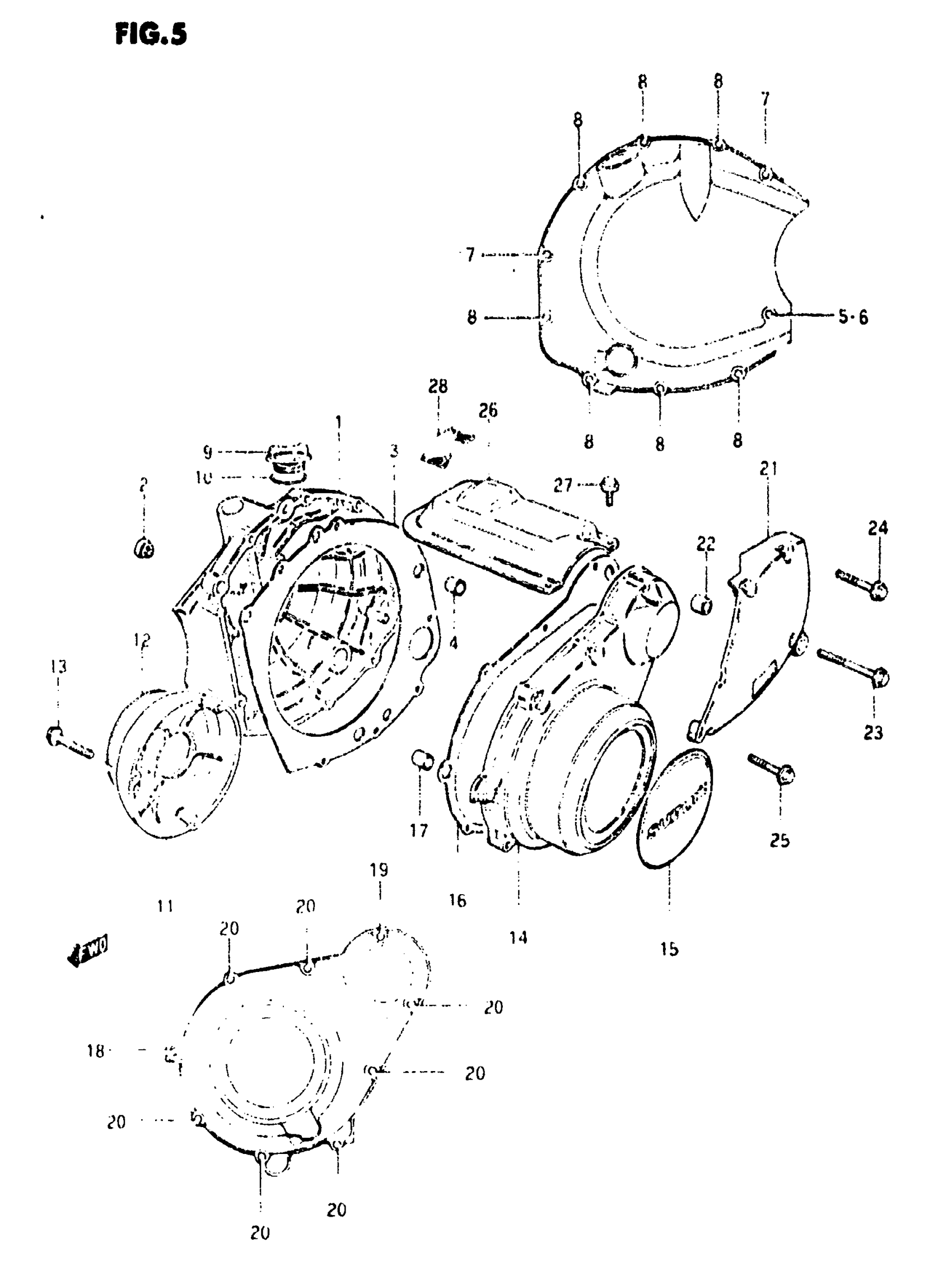

Suzuki GS650M (1983) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-34310

Unavailable

2

LENS, OIL LEVEL (DD:30)

11971-33210

$18.20

3

GASKET,CLUTCH C This part replaces 11482-34200.

11482-34210

Unavailable

4

PIN

04211-09129

$1.65

5

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

6

BOLT This part replaces 01547-06655.

01547-0665B

$3.18

7

BOLT This part replaces 01547-06405.

01547-0640B

$2.75

8

BOLT This part replaces 01547-06305.

01547-06307

$2.03

9

PLUG SET This part replaces 09259-30006.

09200-30821

Unavailable

10

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

$2.76

11

COVER, CONTACT BREAKER

11381-45412

Unavailable

12

EMBLEM This part replaces 68235-34210.

68235-34200

Unavailable

13

BOLT This part replaces 01547-05305.

01547-0530B

$2.56

14

COVER, GENERATOR

11351-34310

Unavailable

15

EMBLEM This part replaces 68233-34210.

68233-34200

Unavailable

16

GASKET,MAGNETO This part replaces 11483-34200.

11483-34210

Unavailable

17

PIN This part replaces 09206-13001.

04211-13189

$2.19

18

BOLT This part replaces 01547-06455.

01547-0645B

$2.73

19

BOLT, WATER PUMP This part replaces 01547-06355.

01547-0635B

$2.73

20

BOLT This part replaces 01547-06305.

01547-06307

$2.03

21

COVER, SECONDARY DRIVE UNIT

11360-34310

Unavailable

22

PIN

04211-09129

$1.65

23

BOLT This part replaces 01547-06405.

01547-0640B

$2.75

24

BOLT This part replaces 01547-06305.

01547-06307

$2.03

25

BOLT (6x25)

01547-06255

Unavailable

26

COVER, STARTER MOTOR

11382-33300

Unavailable

27

BOLT This part replaces 01547-05088.

01547-05087

$1.72

28

DAMPER

11362-34200

Unavailable
