1982 Suzuki GS650GL Transmission Diagram

← All diagrams

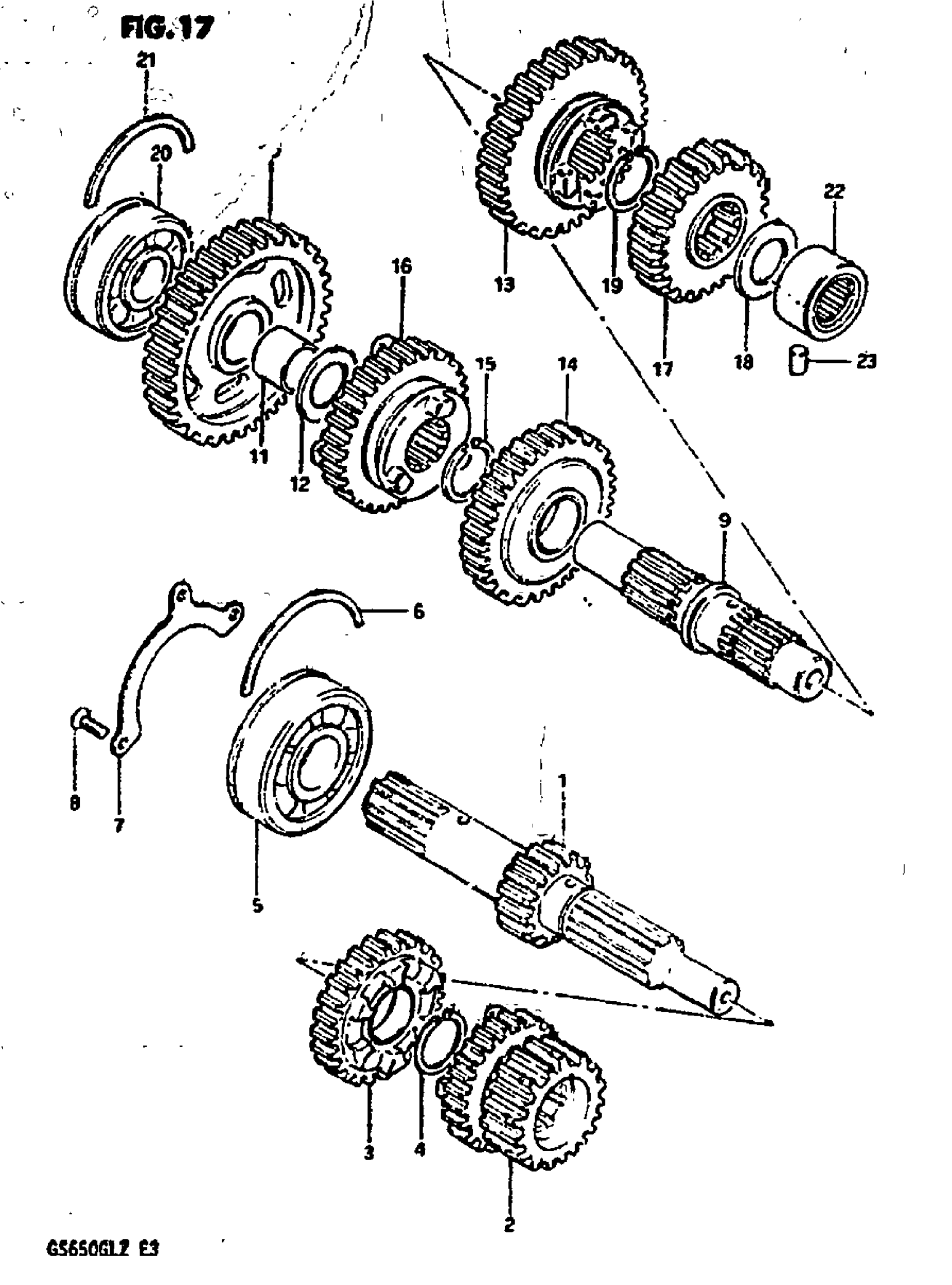

Find the part on the Transmission diagram for your 1982 Suzuki GS650GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS650GL Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:14)

24121-34201

1
Out of stock

2

GEAR, 2/3 DRIVE (NT:18/21) This part replaces 24221-34200.

24221-34201

1
Out of stock

3

GEAR, 4TH DRIVE (NT:24)

24240-34200

1
Out of stock

4

CIHCLIP

09380-25010

1
Out of stock

5

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

6

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

7

HOLDER, BEARING

24741-45000

1
Out of stock

8

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

9

DRIVESHAFT

24131-34200

1
Out of stock

10

GEAR, 1ST DRIVEN (NT:36)

24311-34200

1
Out of stock

11

BUSH

09300-20023

1
Out of stock

12

WASHER, SEC DRIVEN This part replaces 08211-20321.

09181-20223

1
Out of stock

13

GEAR, 2ND DRIVEN (NT:32)

24320-34200

1
Out of stock

14

GEAR, 3RD DRIVEN (NT:29)

24330-34200

1
Out of stock

15

CIRCLIP

09380-25010

1
Out of stock

16

GEAR, 4TH DRIVEN (NT:27)

24341-34200

1
Out of stock

17

GEAR, REDUCTION (NT:24)

24351-34200

1
Out of stock

18

WASHER

24359-34200

1
Out of stock

19

CIRCLIP

09380-25010

1
Out of stock

20

BEARING, RH

09262-20055

1
Out of stock

21

C RING

09390-47003

1
Out of stock

22

BEARING, LH

09263-20038

1
Out of stock

23

PIN

04221-07129

1
Out of stock
