1982 Suzuki GS650GL Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1982 Suzuki GS650GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

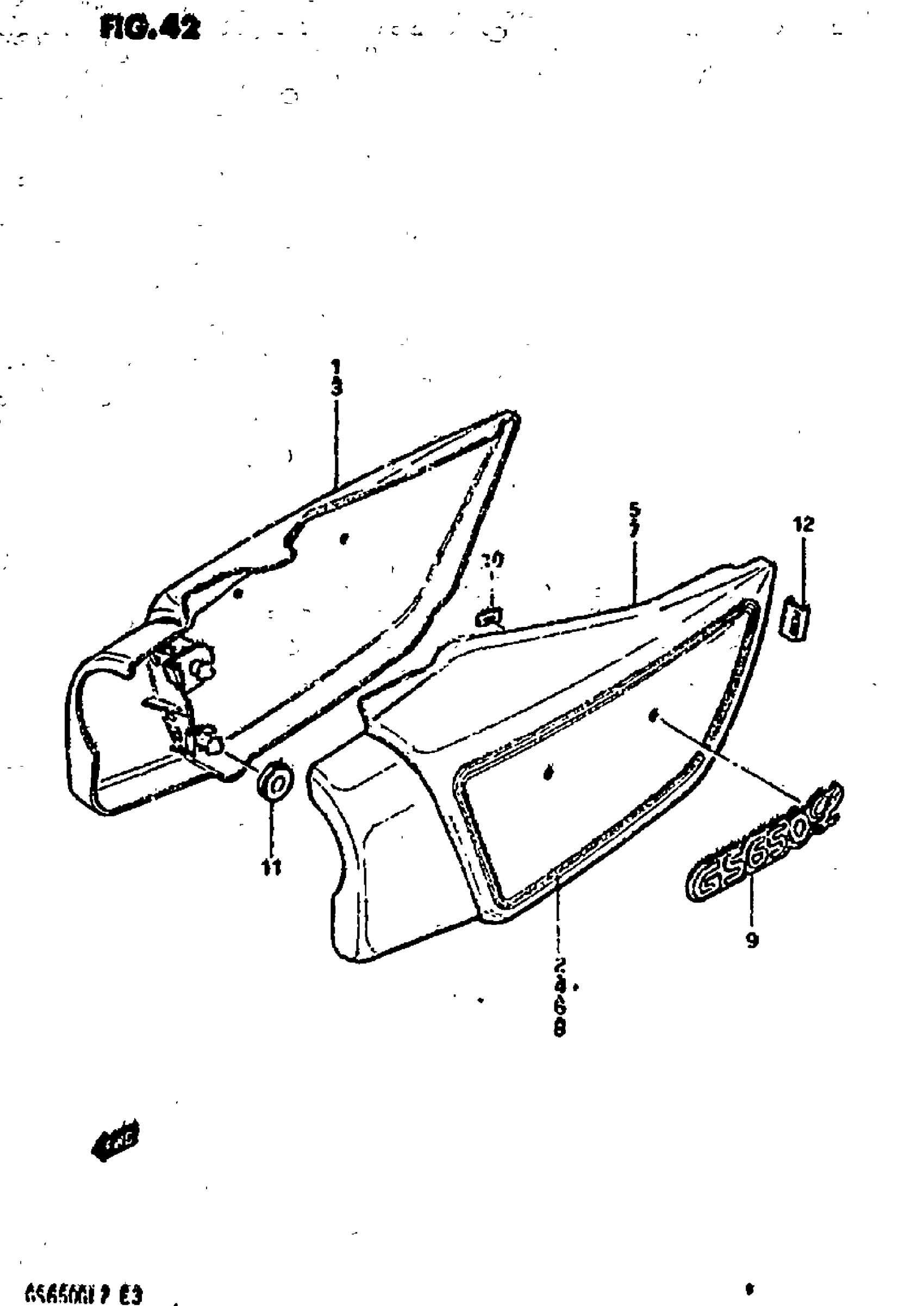

1982 Suzuki GS650GL Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME, R | Includes Item(s) 2 This part replaces 47100-34820-12E.

47110-34400

1
Out of stock

2

TAPE, RH

68136-34410-81M

1
Out of stock

3

COVER,FRAME, R | Includes Item(s) 4 This part replaces 47100-34820-12S.

47110-34400

1
Out of stock

4

TAPE, RH

68136-34410-78V

1
Out of stock

5

COVER,FRAME LH | Includes Item(s) 6 This part replaces 47200-34820-12E.

47210-34400

1
Out of stock

6

TAPE, LH

68146-34410-81M

1
Out of stock

7

COVER,FRAME LH | Includes Item(s) 8 This part replaces 47200-34820-12S.

47210-34400

1
Out of stock

8

TAPE, LH

68146-34410-78V

1
Out of stock

9

EMBLEM This part replaces 68131-34400.

68131-34410

2
Out of stock

10

NUT

09148-03002

4
Out of stock

11

CUSHION

09320-08018

4
Out of stock

12

CUSHION

47117-45000

2
Out of stock
