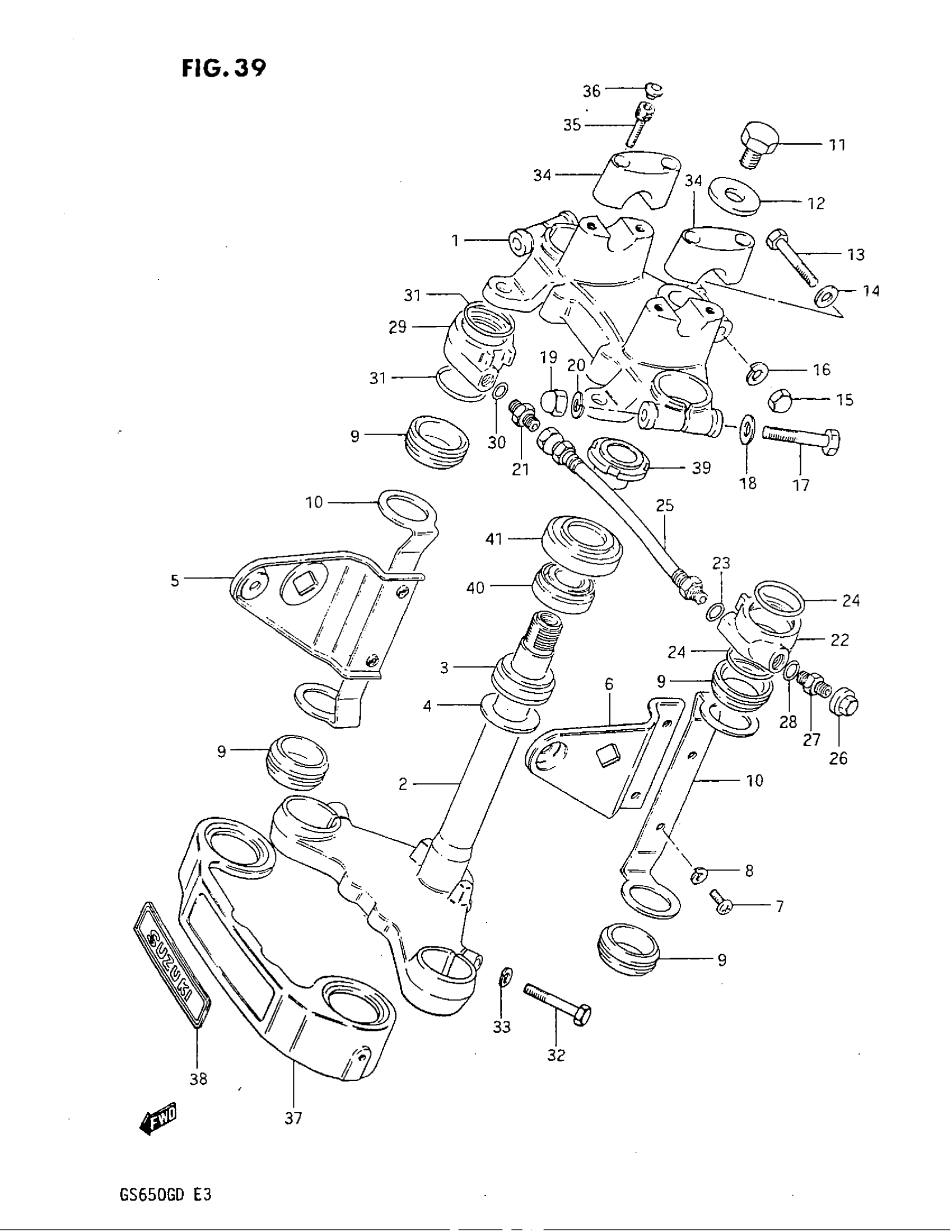

Suzuki GS650G (1983) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING | BLACK

51311-34280-291

Unavailable

2

STEM, STEERING | BLACK; Includes Item(s) 3 - 4

51410-34280

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE | BLACK This part replaces 51530-34220-291.

51500-34820-291

Unavailable

6

BRACKET, HEADLAMP LH | BLACK

51540-34220-291

Unavailable

7

SCREW This part replaces 02112-06088.

02112-06087

$1.49

8

LOCK WASHER This part replaces 08321-31068.

08321-01067

$2.13

9

CUSHION

51553-34280

$5.50

10

HOLDER, LAMP STAY | BLACK

51531-34210-291

Unavailable

11

BOLT This part replaces 51352-09300.

51352-31305

Unavailable

12

WASHER This part replaces 51356-09300.

51356-43530

$6.55

13

BOLT This part replaces 01107-08508.

01500-08507

$3.05

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13

15

NUT This part replaces 08313-11085.

08313-1008B

$2.80

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

18

WASHER This part replaces 08322-21108.

08322-01107

$2.15

19

NUT

09145-10002

Unavailable

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

CONNECTOR

51437-33300

Unavailable

22

JOINT AIR, LH

51432-34280

Unavailable

23

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

24

O RING B

51436-33300

Unavailable

25

TUBE, JOINT

51433-34280

Unavailable

26

CAP This part replaces 51294-33300.

51294-45440

Unavailable

27

VALVE, AIR | Includes Item(s) 28

51293-45440

Unavailable

28

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

29

JOINT AIR, RH

51431-34280

Unavailable

30

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

31

O RING B

51436-33300

Unavailable

32

BOLT This part replaces 01107-10408.

01500-10407

$3.55

33

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

34

CLAMP, HANDLEBAR UPPER | BLACK

56211-34370-291

Unavailable

35

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

36

CAP

09250-06004

$1.49

37

COVER, FRONT FORK

51871-34501

Unavailable

38

EMBLEM

68211-34510

Unavailable

39

NUT, STEERING STEM

51631-34200

Unavailable

40

BEARING

09265-25008

Unavailable

41

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15
