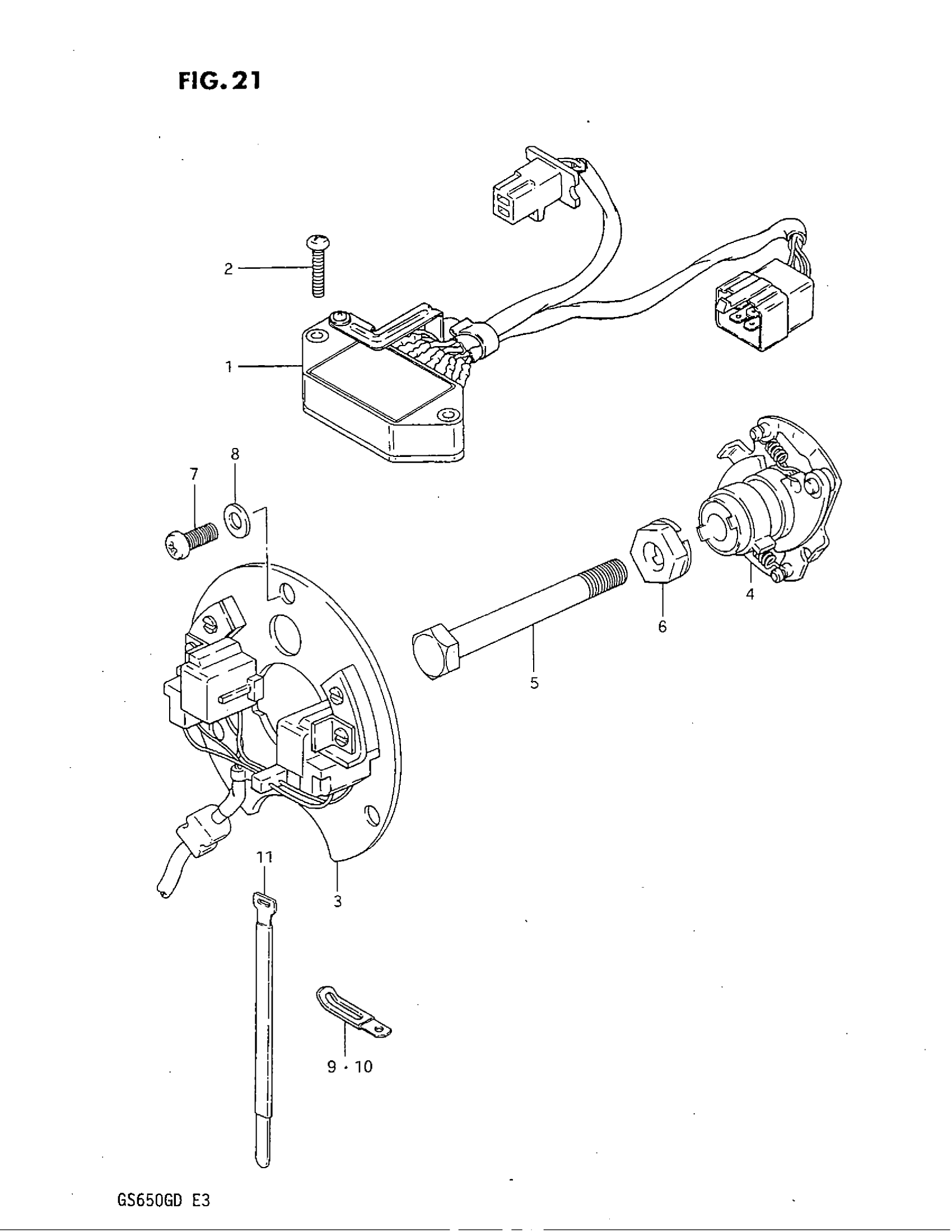

Suzuki GS650G (1983) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITER UNIT

32900-34210

Unavailable

2

SCREW This part replaces 02112-06258.

02112-06257

$1.78

3

NO DESCRIPTION AVAILABLE This part replaces 33110-34210.

33110-34220

Unavailable

4

GOVERNOR ASSY, ADVANCE

33120-34210

Unavailable

5

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

6

WASHER

33465-47000

Unavailable

7

SCREW

09125-05024

$1.72

8

WASHER This part replaces 09160-05027.

08322-01057

$2.13

9

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

10

CLAMP This part replaces 09404-08401.

09404-08420

$3.16

11

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
