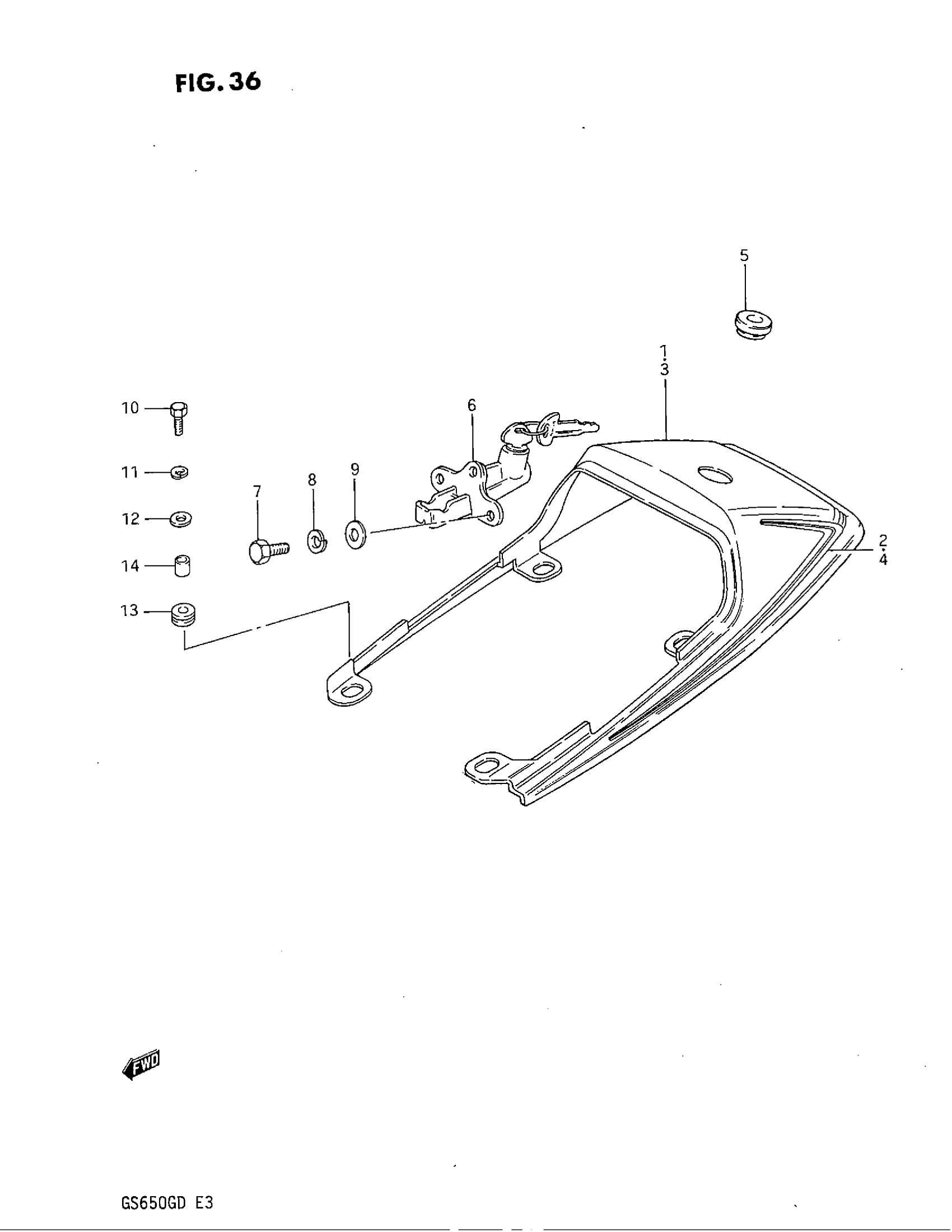

Suzuki GS650G (1983) SEAT TAIL COVER Diagram

#

Description
Price

1

COVER, SEAT TAIL (BLACK) | Includes Item(s) 2

45500-34220-019

Unavailable

2

TAPE SET

68160-34220-76D

Unavailable

3

COVER, SEAT TAIL (RED) | Includes Item(s) 4

45500-34220-05L

Unavailable

4

TAPE SET

68160-34220-73D

Unavailable

5

GROMMET

45522-49200

$4.58

6

LOCK ASSY, SEAT

95700-49830

Unavailable

7

BOLT This part replaces 01107-06128.

01500-06127

$1.97

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

BOLT This part replaces 01107-06208.

01500-06207

$2.28

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER This part replaces 09160-06012.

09160-06054

$1.62

13

CUSHION This part replaces 09320-10011.

09320-10072

$2.32

14

SPACER

09180-07004

$2.30
