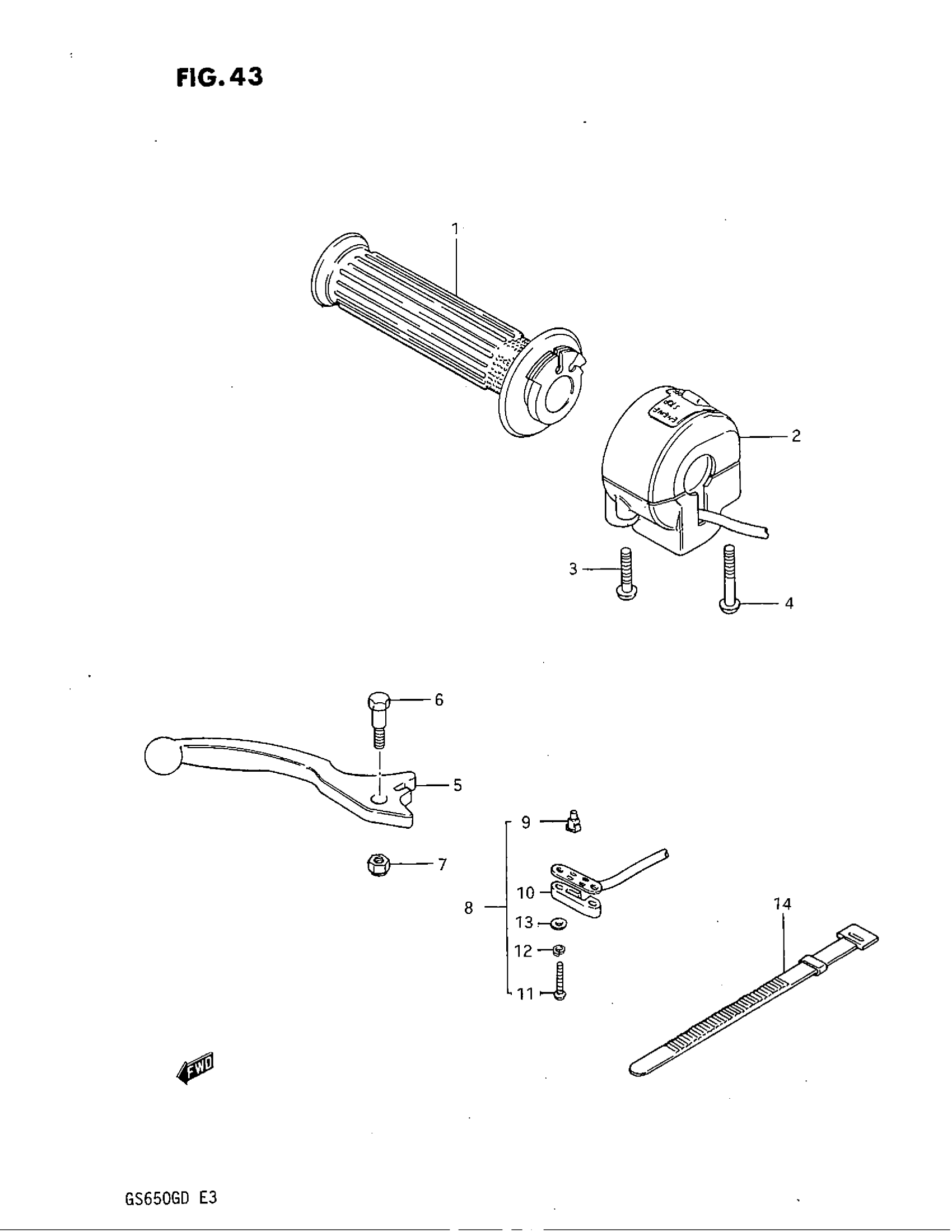

Suzuki GS650G (1983) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-44011.

57110-49510

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 37200-34530.

37200-345V0

Unavailable

2

SWITCH ASSY, HANDLE (OPT) | Includes Item(s) 3 - 4

37200-34510

Unavailable

3

SCREW This part replaces 02112-05258.

02112-05257

$1.49

4

SCREW This part replaces 02112-05358.

02112-05357

$1.49

5

LEVER, BRAKE

57420-49101

$34.15

6

BOLT

57431-18621

$8.28

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

8

SWITCH ASSY, ST | Includes Item(s) 9 - 13 This part replaces 57460-49300.

57460-45500

$35.23

9

HOLDER

57465-18601

$4.34

10

COVER

57481-33010

$5.84

11

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

13

WASHER This part replaces 08322-21038.

08322-01037

$1.93

14

BAND (L:120)

09407-12402

$3.04
