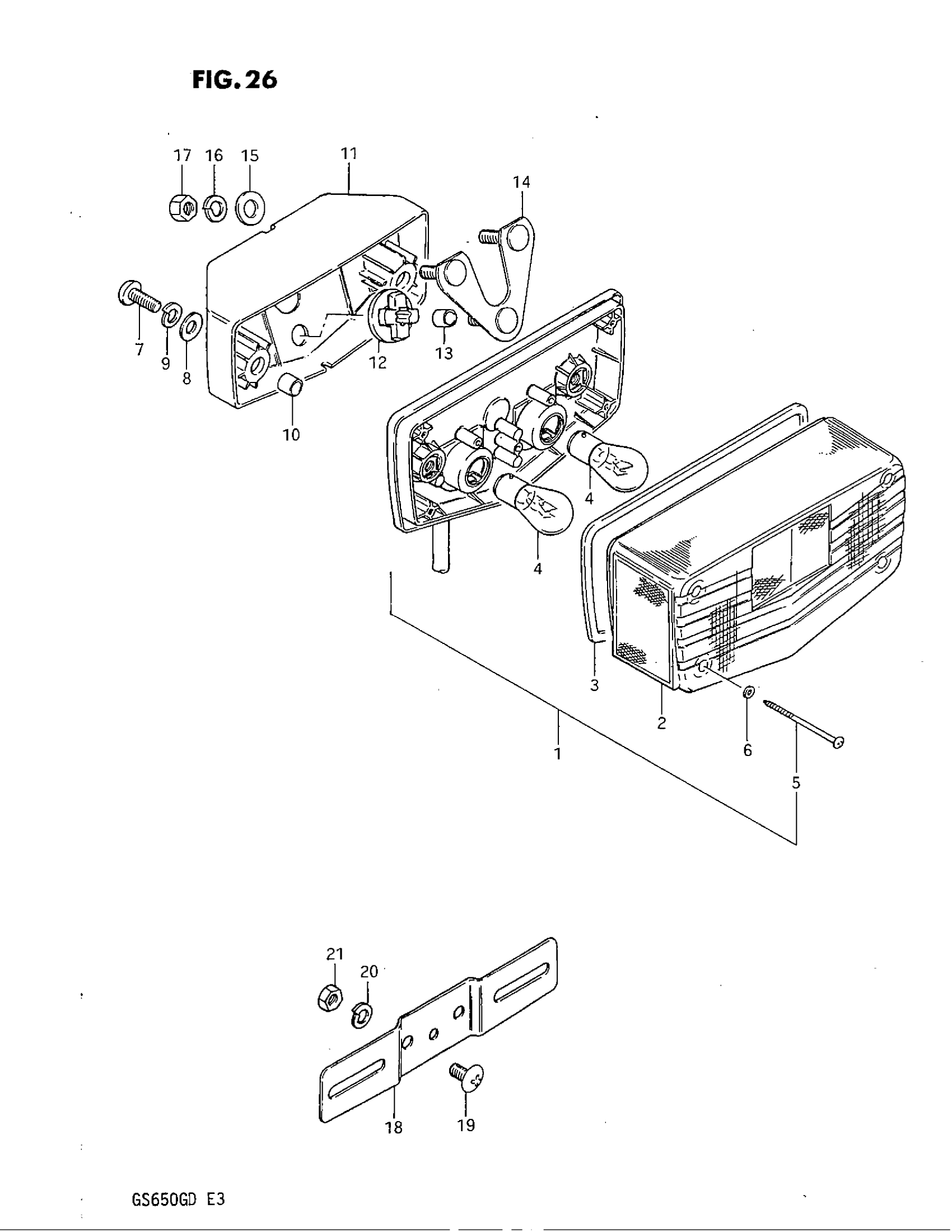

Suzuki GS650G (1983) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP, REAR COMBINATION | Includes Item(s) 2 - 10

35720-11430

Unavailable

2

LENS

35712-44130

Unavailable

3

GASKET

35713-44130

Unavailable

4

BULB (12V,32/3CP)

09471-12035

$4.49

5

SCREW

35723-44130

$2.22

6

GASKET

35627-43010

$2.28

7

SCREW This part replaces 02112-06208.

02112-06207

$1.78

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

SPACER

35766-44130

Unavailable

11

BRACKET ASSY | Includes Item(s) 12 - 14

35730-44130

Unavailable

12

CUSHION

35765-44130

Unavailable

13

SPACER

35767-44130

Unavailable

14

PLATE

35727-44130

Unavailable

15

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

.NUT This part replaces 08310-11068.

08310-00067

$2.13

18

PLATE, LICENCE

35927-44130

Unavailable

19

SCREW

02142-06167

$1.49

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

.NUT This part replaces 08310-11068.

08310-00067

$2.13
