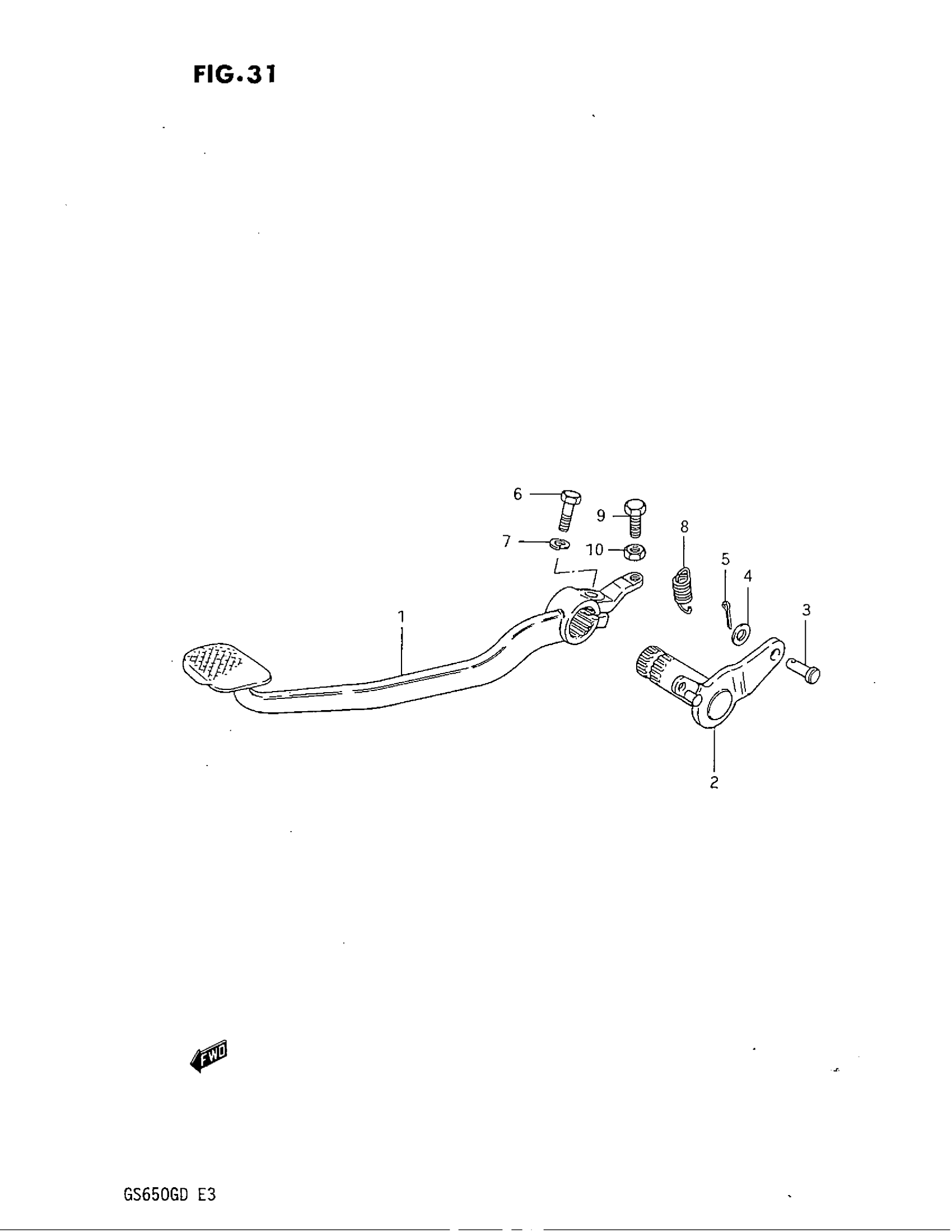

Suzuki GS650G (1983) REAR BRAKE Diagram

#

Description

Price

1

PEDAL, BRAKE

43110-34200

Unavailable

2

ARM, BRAKE PEDAL ROD

43120-34200

Unavailable

3

PIN

09200-06029

Unavailable

4

WASHER This part replaces 08322-21068.

08322-01067

$2.13

5

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

6

BOLT This part replaces 01107-08258.

01500-08257

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

SPRING

09443-14013

$2.98

9

BOLT This part replaces 01107-06208.

01500-06207

$2.28

10

.NUT This part replaces 08310-11068.

08310-00067

$2.13
