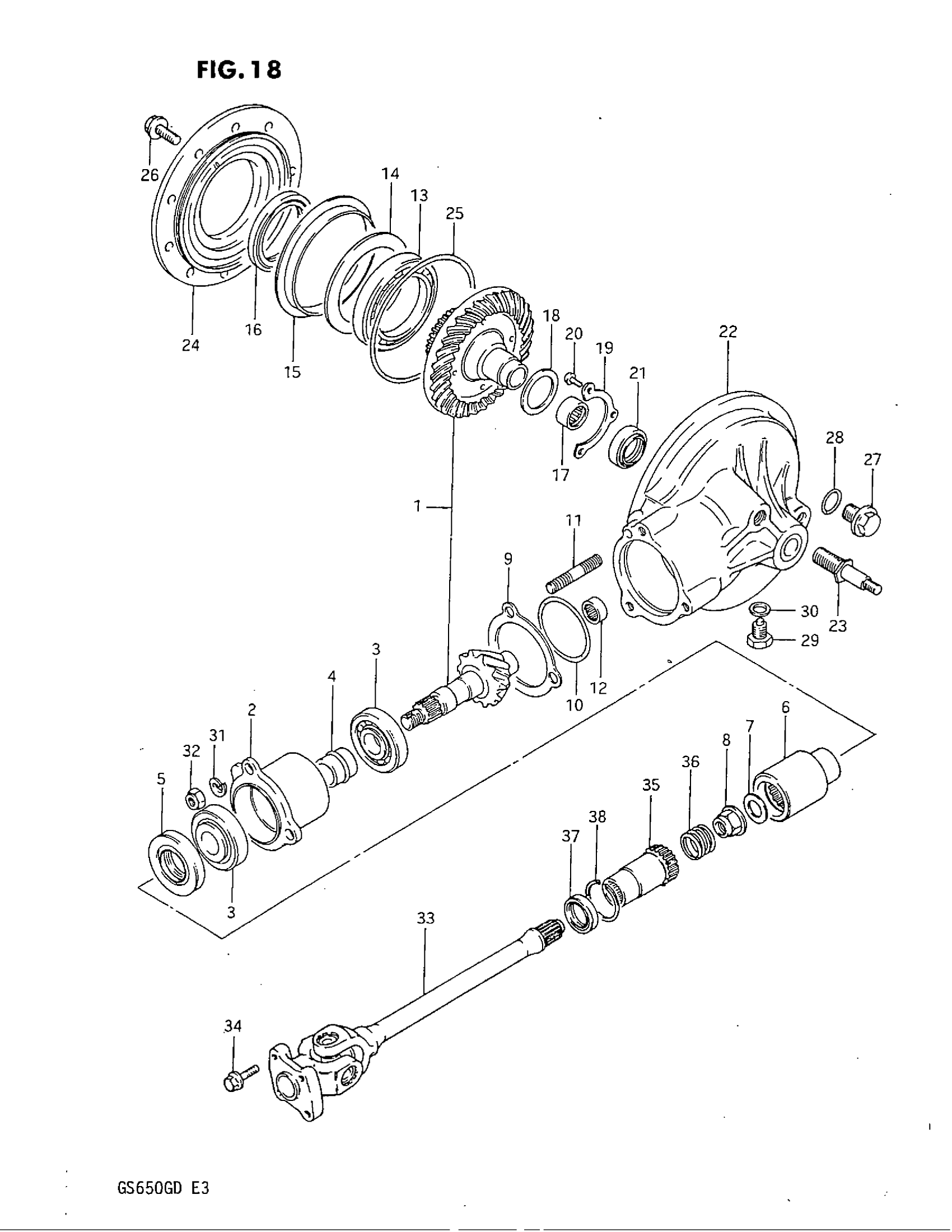

Suzuki GS650G (1983) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

FINAL GEAR & CASE SET | Includes Item(s) 1 - 30

27300-34821

Unavailable

1

FINAL GEAR SET (NT:11/34)

27300-34810

Unavailable

2

HOUSING, DRIVE BEVEL GEAR

27441-34200

Unavailable

3

BEARING, REAR This part replaces 09265-25014.

09265-25024

$60.80

4

SPACER

09180-25059

Unavailable

5

OIL SEAL

09283-32017

Unavailable

6

COUPLING, FINAL DRIVE GEAR

27172-45100

Unavailable

7

WASHER

09160-14021

$6.63

8

NUT

09159-14010

$14.12

9

SHIM (T:0.15)

27445-45100

Unavailable

9

SHIM (T:0.30)

27445-45102

Unavailable

9

SHIM (T:0.35)

27445-45101

Unavailable

9

SHIM (T:0.40)

27445-45103

Unavailable

10

O RING

09280-63004

$4.75

11

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

12

BEARING

09263-16018

Unavailable

13

BEARING, RH

09262-70001

$140.93

14

SHIM (T:0.35)

27327-34200

Unavailable

14

SHIM (T:0.40)

27327-34210

Unavailable

14

SHIM (T:0.50)

27327-34220

Unavailable

14

SHIM (T:0.60)

27327-34230

Unavailable

15

PLATE

27328-34200

$7.37

16

OIL SEAL, RH

09289-70001

$51.76

17

BEARING, LH

09263-32007

$81.08

18

SHIM (T:1.05)

27326-34201

Unavailable

18

SHIM (T:1.10)

27326-34211

Unavailable

18

SHIM (T:1.20)

27326-34221

Unavailable

18

SHIM (T:1.25)

27326-34231

Unavailable

18

SHIM (T:1.35)

27326-34241

Unavailable

19

HOLDER, BEARING

27329-34200

Unavailable

20

SCREW This part replaces 02112-06128.

02112-06127

$1.84

21

OIL SEAL, LH

09283-30028

$9.60

22

CASE, FINAL GEAR

27450-34202

Unavailable

23

STUD BOLT

09108-10025

Unavailable

24

NO DESCRIPTION AVAILABLE This part replaces 27460-34201.

27460-34202

Unavailable

25

O RING

09280-00015

$11.03

26

BOLT This part replaces 01517-08258.

01550-08257

$2.81

27

PLUG, OIL FILLER

09247-18001

$8.83

28

O RING

09280-18004

$5.18

29

PLUG, OIL DRAIN This part replaces 09247-14014.

09247-14036

$6.17

30

GASKET

09168-14004

$1.83

31

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

32

NUT

09159-10027

$3.10

33

SHAFT, PROPELLER

27100-34200

Unavailable

34

BOLT

09103-08050

Unavailable

35

COUPLING, PROPELLER SHAFT

27171-45101

Unavailable

36

SPRING

09440-27005

Unavailable

37

OIL SEAL

09283-30026

$10.40

38

CIRCLIP

09381-40003

$4.64
