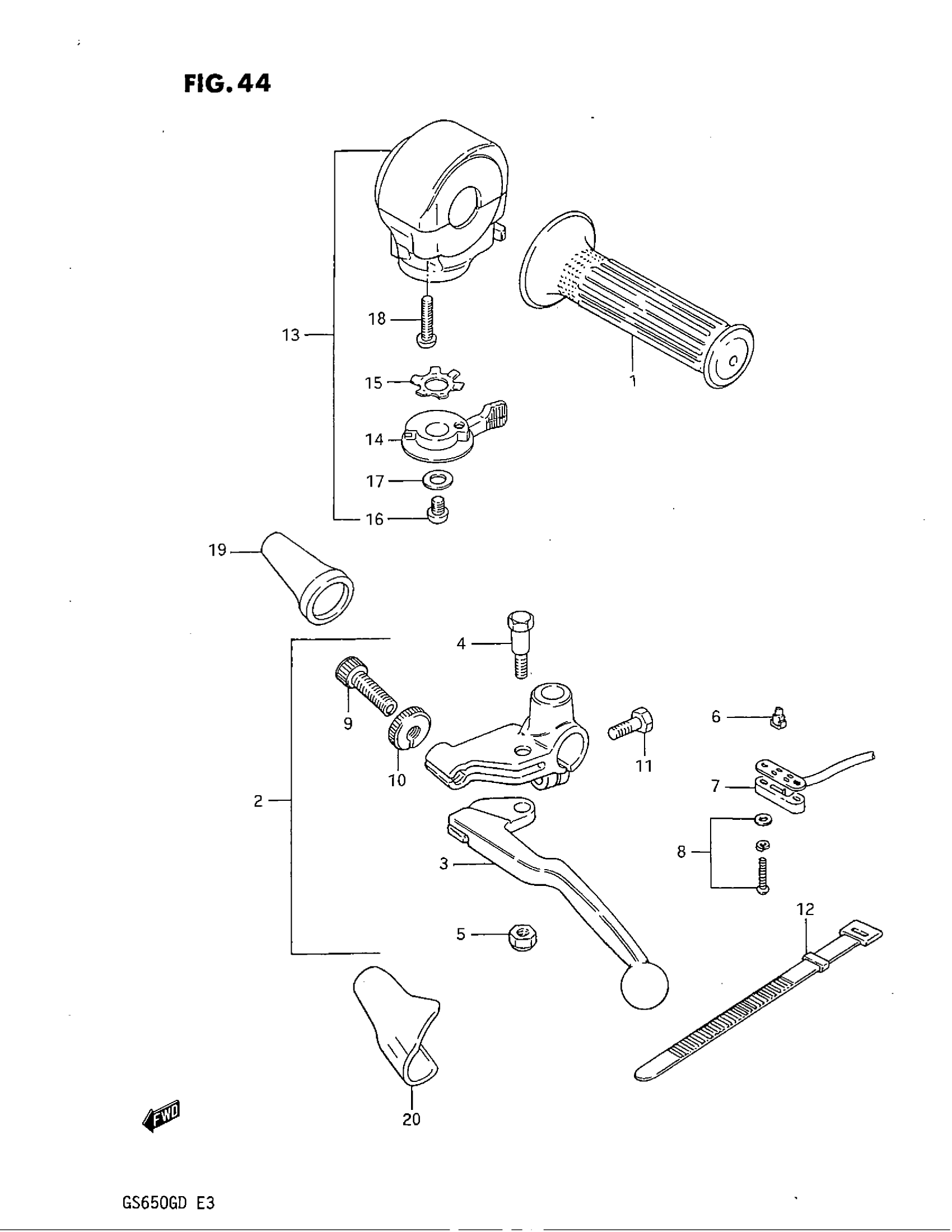

Suzuki GS650G (1983) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP This part replaces 57211-45030.

57211-24201

Unavailable

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 11 This part replaces 57500-49112.

57500-49301

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT This part replaces 57431-11011.

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

CONTACT

57465-18601

$4.34

7

COVER

57481-33010

$5.84

8

SCREW

57484-49110

$1.98

9

ADJUSTER, CABLE

57441-11010

$5.62

10

NUT

57442-11010

$2.79

11

BOLT

57451-49100

Unavailable

12

BAND (L:120)

09407-12402

$3.04

13

SWITCH ASSY, HANDLE LH | Includes Item(s) 14 - 18 This part replaces 37400-09320.

37400-33420

Unavailable

14

LEVER, STARTER

37571-45110

Unavailable

15

WASHER

37573-45110

Unavailable

16

SCREW This part replaces 02112-06088.

02112-06087

$1.49

17

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

18

SCREW This part replaces 02112-05258.

02112-05257

$1.49

19

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

20

COVER

57661-31000

$7.25
