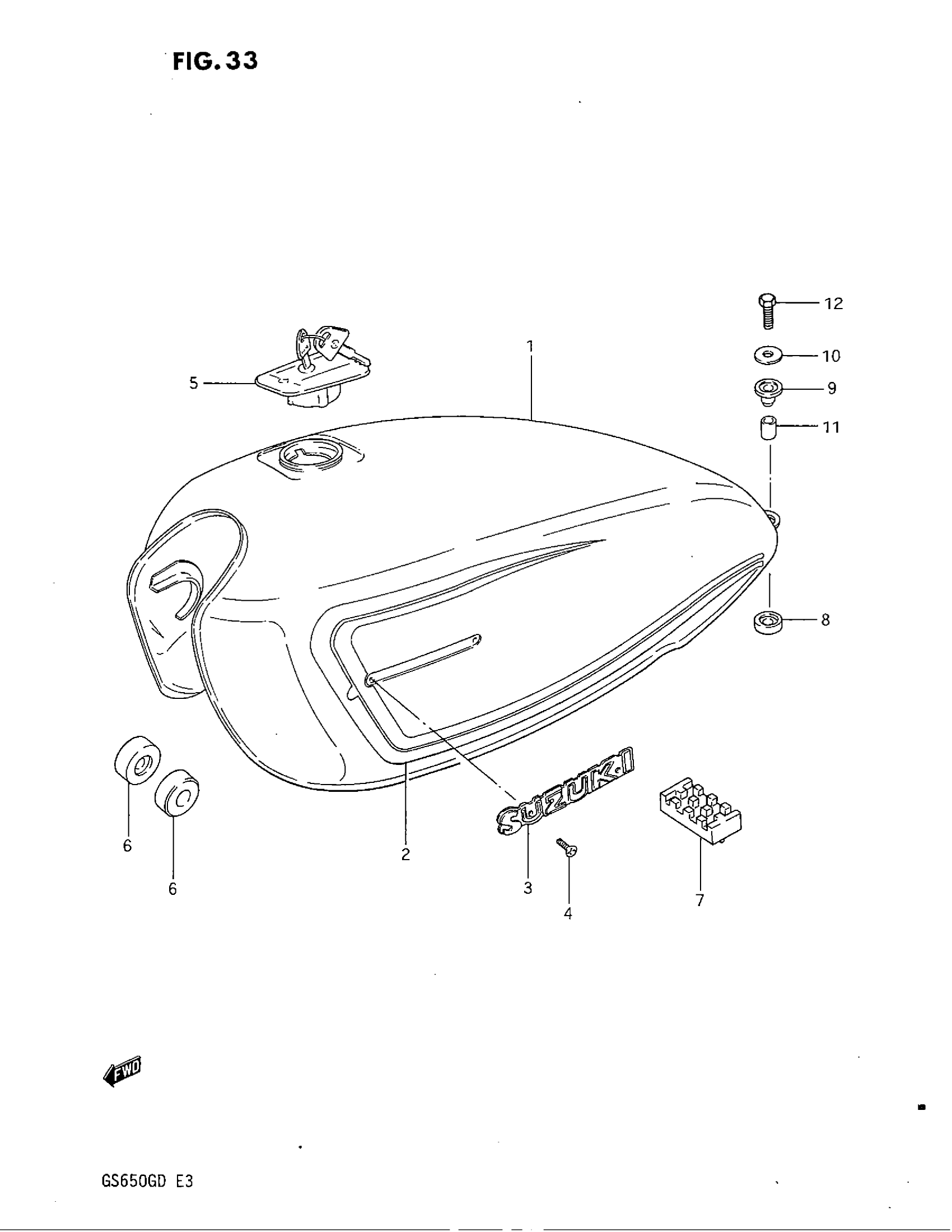

Suzuki GS650G (1983) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-34220-019.

44110-34212-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-34220-05L.

44110-34212-13L

Unavailable

2

TAPE SET

68110-34220-81P

Unavailable

3

EMBLEM

68111-44600

Unavailable

4

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

5

CAP SET,FUEL TA This part replaces 44200-49016-KEY.

44200-49811

$144.42

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

8

CUSHION, REAR LOWER

09320-14013

$2.11

9

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

10

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

11

SPACER This part replaces 09180-06072.

09180-06271

$2.35

12

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48
