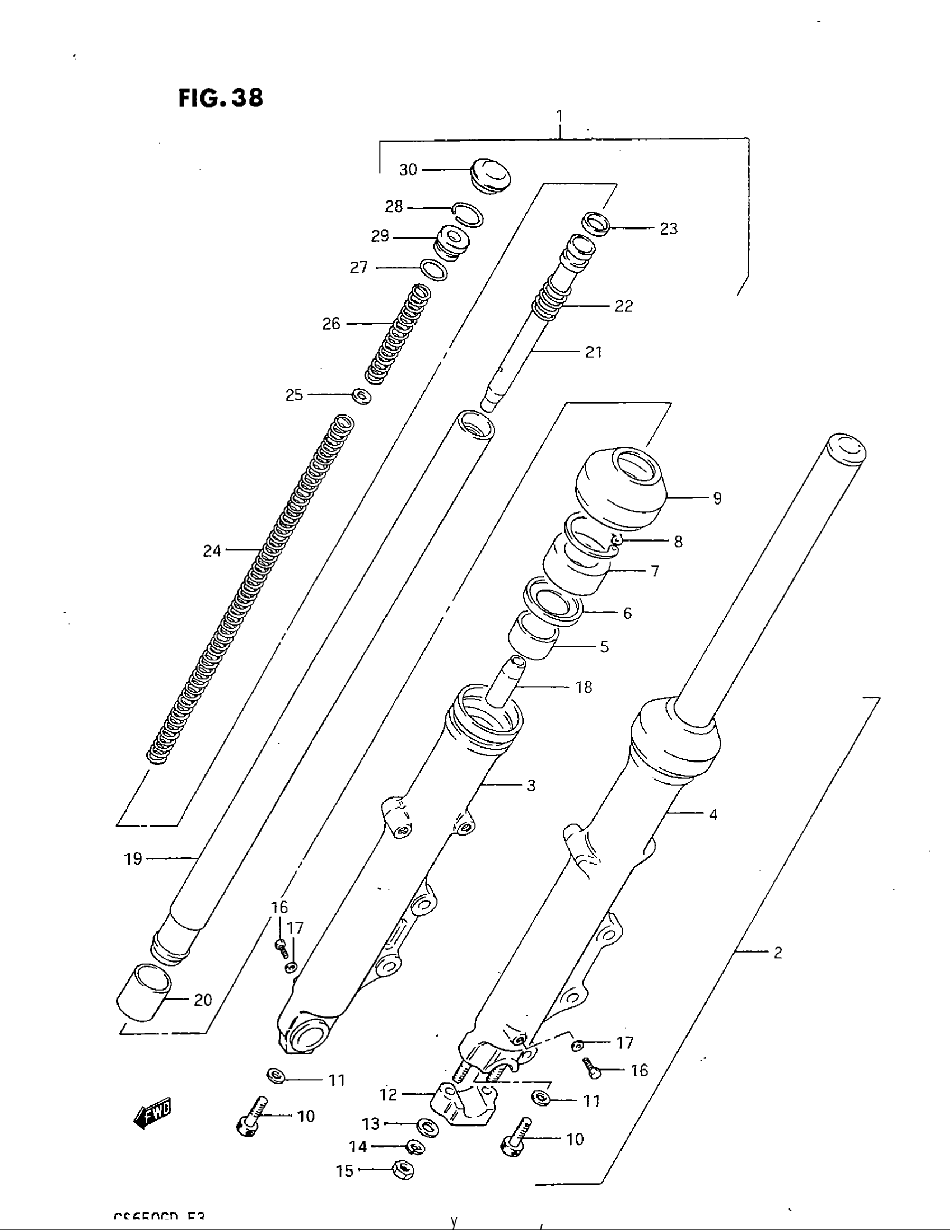

Suzuki GS650G (1983) FRONT FORK Diagram

#

Description
Price

1

DUMPER ASSY, RH

51103-34280

Unavailable

2

DUMPER ASSY, LH | Includes Item(s) 3 - 30

51104-34280

Unavailable

3

OUTER TUBE, RH

51130-34200

Unavailable

4

OUTER TUBE, LH

51140-34200

Unavailable

5

GUIDE, TUBE

51152-45400

$15.10

6

SPACER, SEAL This part replaces 51168-45031.

51168-30B00

$6.31

7

SEAL, OIL This part replaces 51153-33300.

51153-19D10

$22.96

8

RING, STOPPER This part replaces 51156-45440.

51156-01A00

$4.34

9

DUST SEAL This part replaces 51571-34200.

51571-20520

Unavailable

10

BOLT

51147-48130

$4.34

11

O RING This part replaces 51148-31030.

51148-36011

$3.56

12

HOLDER, AXLE

51132-31030

Unavailable

13

WASHER This part replaces 08322-21088.

08322-01087

$2.13

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

NUT This part replaces 08310-11088.

08310-00087

$2.13

16

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

17

GASKET

51183-31030

$3.77

18

PIECE, OIL LOCK

51195-45030

Unavailable

19

INNER TUBE

51110-34280

Unavailable

20

PISTON

51121-45400

Unavailable

21

PIPE, SEAT This part replaces 51146-34200.

51146-47600

Unavailable

22

SPRING

51177-45030

Unavailable

23

RING, PISTON

51196-31230

Unavailable

24

SPRING B

51184-34280

Unavailable

25

GUIDE, SPRING

51192-47200

Unavailable

26

SPRING A

51171-34200

Unavailable

27

O RING This part replaces 51117-31030.

51181-31030

$4.37

28

RING, STOPPER

51169-47400

$2.90

29

SEAT, SPRING

51175-47400

Unavailable

30

CAP

51189-31230

$9.37
