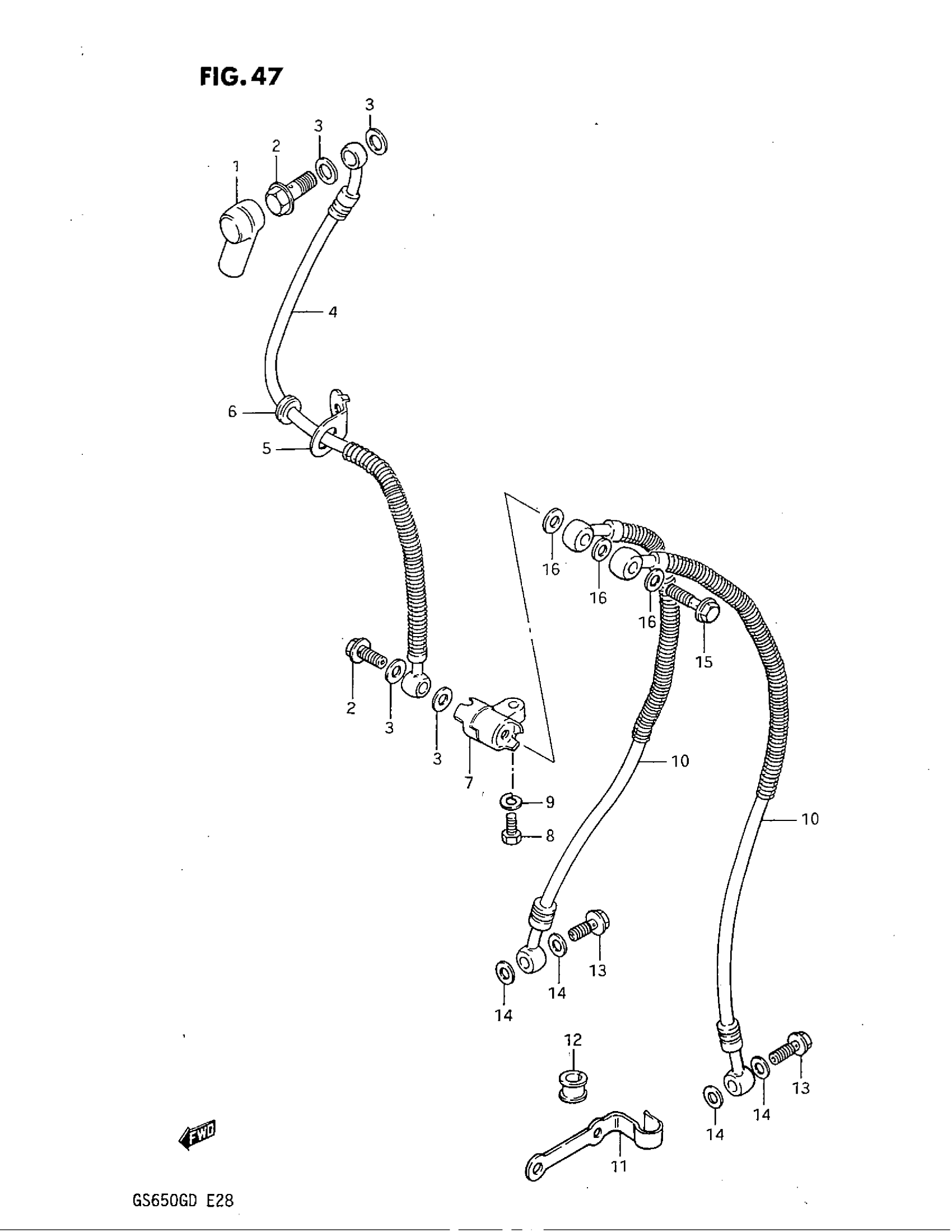

Suzuki GS650G (1983) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER

59711-49001

$7.51

2

UNION This part replaces 09360-10007.

09360-10017

$3.42

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO.1

59480-34200

Unavailable

5

GUIDE, HOSE

59243-31010

Unavailable

6

GROMMET This part replaces 09308-14007.

09308-14009

Unavailable

7

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

Unavailable

8

BOLT This part replaces 01107-06208.

01500-06207

$2.28

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

HOSE, BRAKE NO.2 This part replaces 59240-34200.

59240-47700

Unavailable

11

CLAMP

59268-49001

Unavailable

12

BUSHING

59244-49000

Unavailable

13

UNION This part replaces 09360-10007.

09360-10017

$3.42

14

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

15

UNION BOLT This part replaces 09360-10008.

09360-10018

$6.80

16

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
