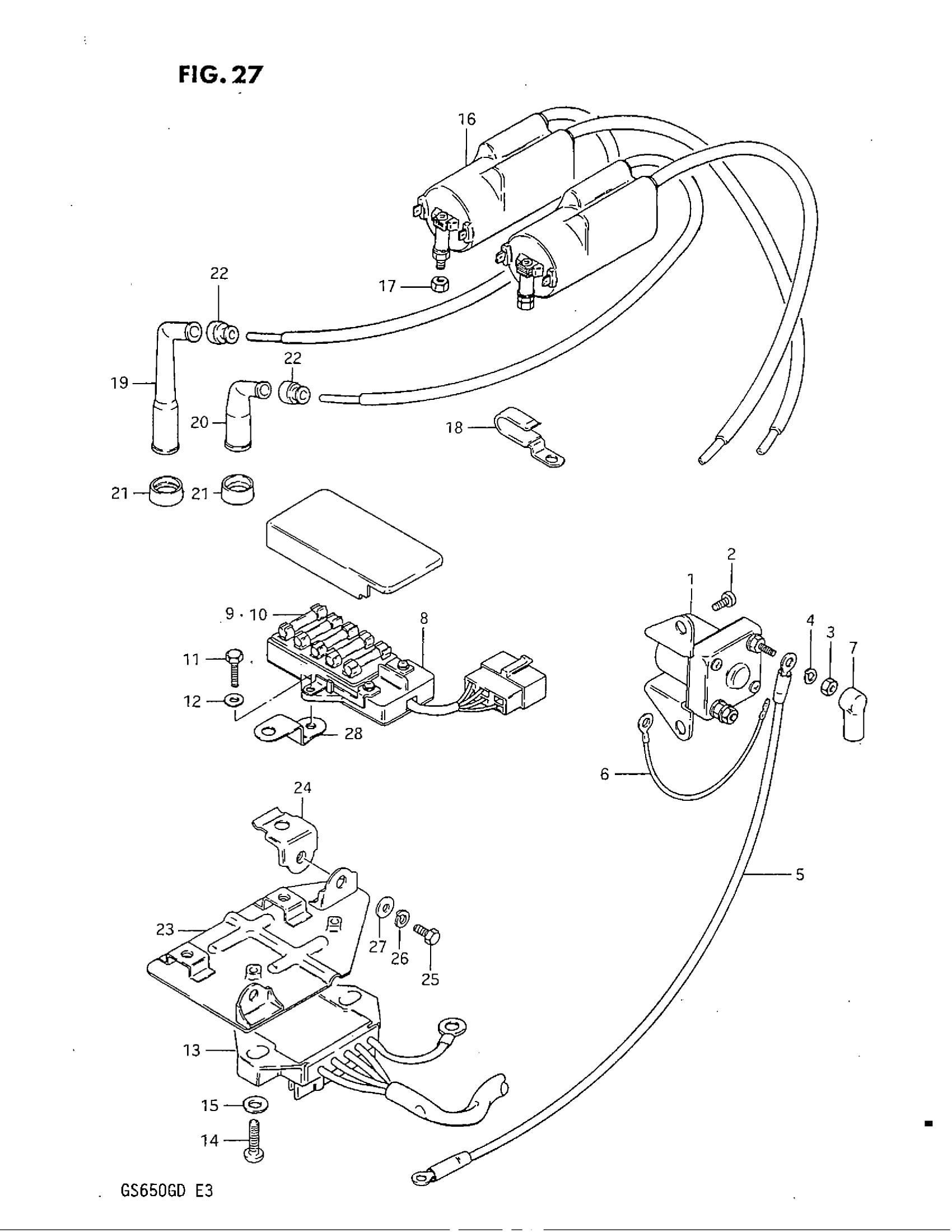

Suzuki GS650G (1983) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$71.42

2

SCREW This part replaces 02112-06088.

02112-06087

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, STARTING MOTOR This part replaces 33850-34301.

33850-48B00

Unavailable

6

LEAD WIRE, EARTH

36862-27690

$5.20

7

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

8

NO DESCRIPTION AVAILABLE | Includes Item(s) 9 - 10 This part replaces 36740-34200.

36740-34X00

Unavailable

9

FUSE (15A)

09481-15001

$2.06

10

FUSE (10A)

09481-10001

$1.71

11

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

RECTIFIER COMP This part replaces 32800-45220.

32800-471V0

Unavailable

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

COIL ASSY, IGNI This part replaces 33410-34210.

33410-31311

$161.13

17

.NUT This part replaces 08310-11068.

08310-00067

$2.13

18

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

19

CAP, SPARK PLUG (L)

33510-45010

$24.99

20

CAP, SPARK PLUG (S)

33510-43010

$24.99

21

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.68

22

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

23

PLATE, PARTS HOLDER

47410-34200

Unavailable

24

BRACKET, PARTS HOLDER

47420-34200

Unavailable

25

BOLT This part replaces 01107-06128.

01500-06127

$1.97

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

WASHER This part replaces 08322-21068.

08322-01067

$2.13

28

BRACKET

47454-34200

Unavailable
