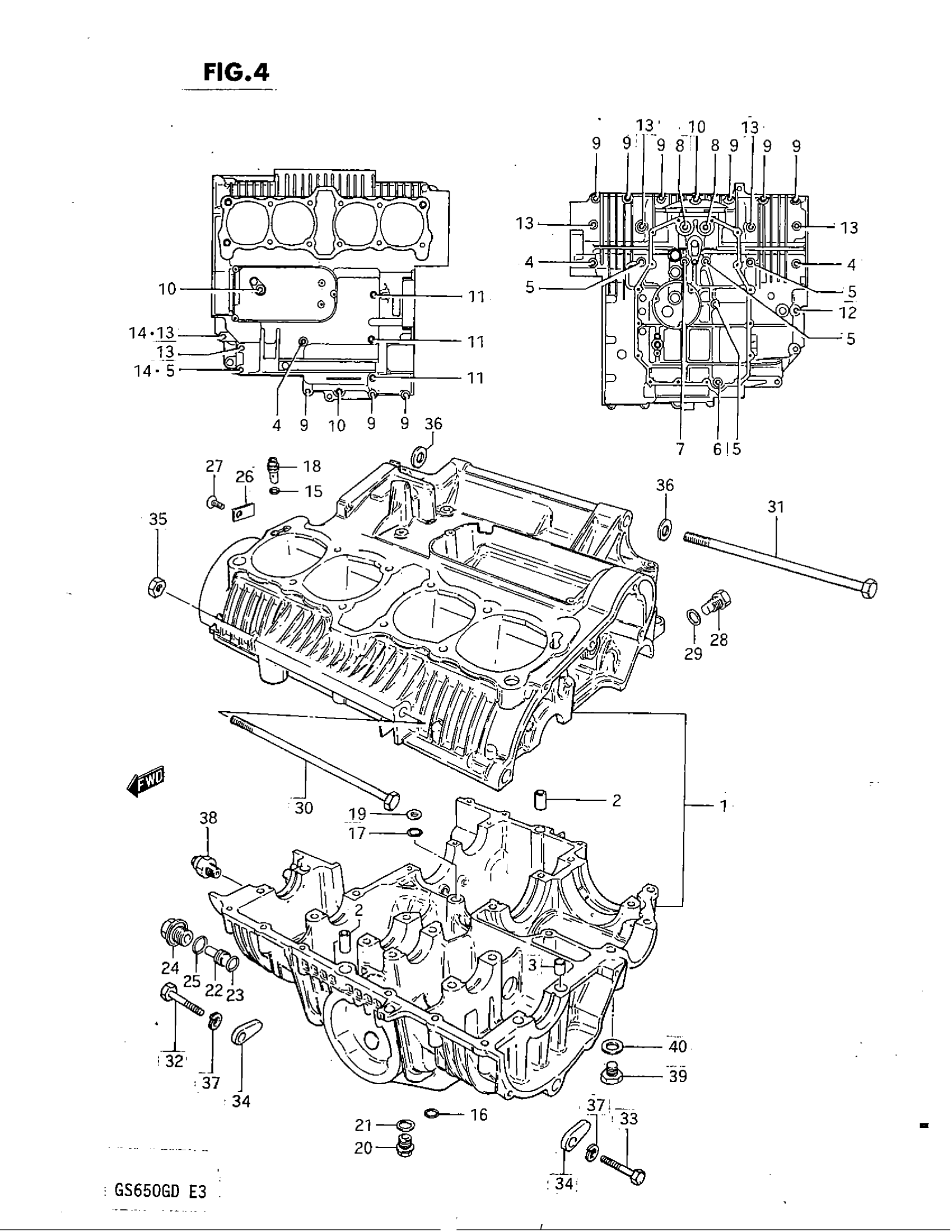

Suzuki GS650G (1983) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 29 This part replaces 11300-34890.

11300-34891

Unavailable

2

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

3

PIN

09206-13004

$2.40

4

BOLT (8X110) This part replaces 09103-08024.

09103-08134

$3.40

5

BOLT (8X120) This part replaces 09103-08091.

09103-08109

$3.18

6

BOLT (8x135)

09103-08038

Unavailable

7

BOLT (8X140)

09103-08040

$5.52

8

BOLT This part replaces 09106-08015.

07130-0860B

Unavailable

9

BOLT This part replaces 01517-06408.

01550-06407

$2.69

10

BOLT This part replaces 01517-06558.

01550-06557

$3.30

11

BOLT This part replaces 01517-06908.

01550-06907

$4.60

12

BOLT This part replaces 01517-08708.

01550-08707

$3.91

13

BOLT This part replaces 01517-08958.

01550-08957

$5.37

14

NUT This part replaces 08316-16085.

08316-1008B

$2.66

15

O RING, OIL GALLERY JET This part replaces 09280-04002.

09280-04004

$1.91

16

O RING, OIL GALLERY This part replaces 09280-12005.

09280-12012

$4.64

17

O RING

09280-13001

$2.72

18

JET

09493-24009

Unavailable

19

WASHER

08212-05161

Unavailable

20

PLUG

09247-16002

Unavailable

21

GASKET

09168-16002

$1.91

22

PIN

11329-45400

Unavailable

23

O RING (D:1.9,ID:9.8) This part replaces 09280-10005.

09280-10016

$3.37

24

PLUG

09247-18001

$8.83

25

O RING

09280-18004

$5.18

26

PLATE

11319-34200

Unavailable

27

SCREW This part replaces 02122-06168.

02122-06167

$1.49

28

PLUG

09247-12005

Unavailable

29

GASKET

09168-12002

$1.59

30

BOLT (10X200) This part replaces 09100-10111.

09103-10138

Unavailable

31

ENGINE MOUNT BO This part replaces 09101-10010.

09101-10010-XC0

Unavailable

32

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

33

BOLT This part replaces 01107-10408.

01500-10407

$3.55

34

NUT

09159-10020

$5.18

35

NUT This part replaces 08319-31105.

08319-3110A

$2.73

36

WASHER This part replaces 08322-11108.

08322-01107

$2.15

37

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

38

SWITCH ASSY,OIL PRESSURE This part replaces 37820-34200.

37820-33D11

$25.13

39

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

40

GASKET

09168-14004

$1.83
