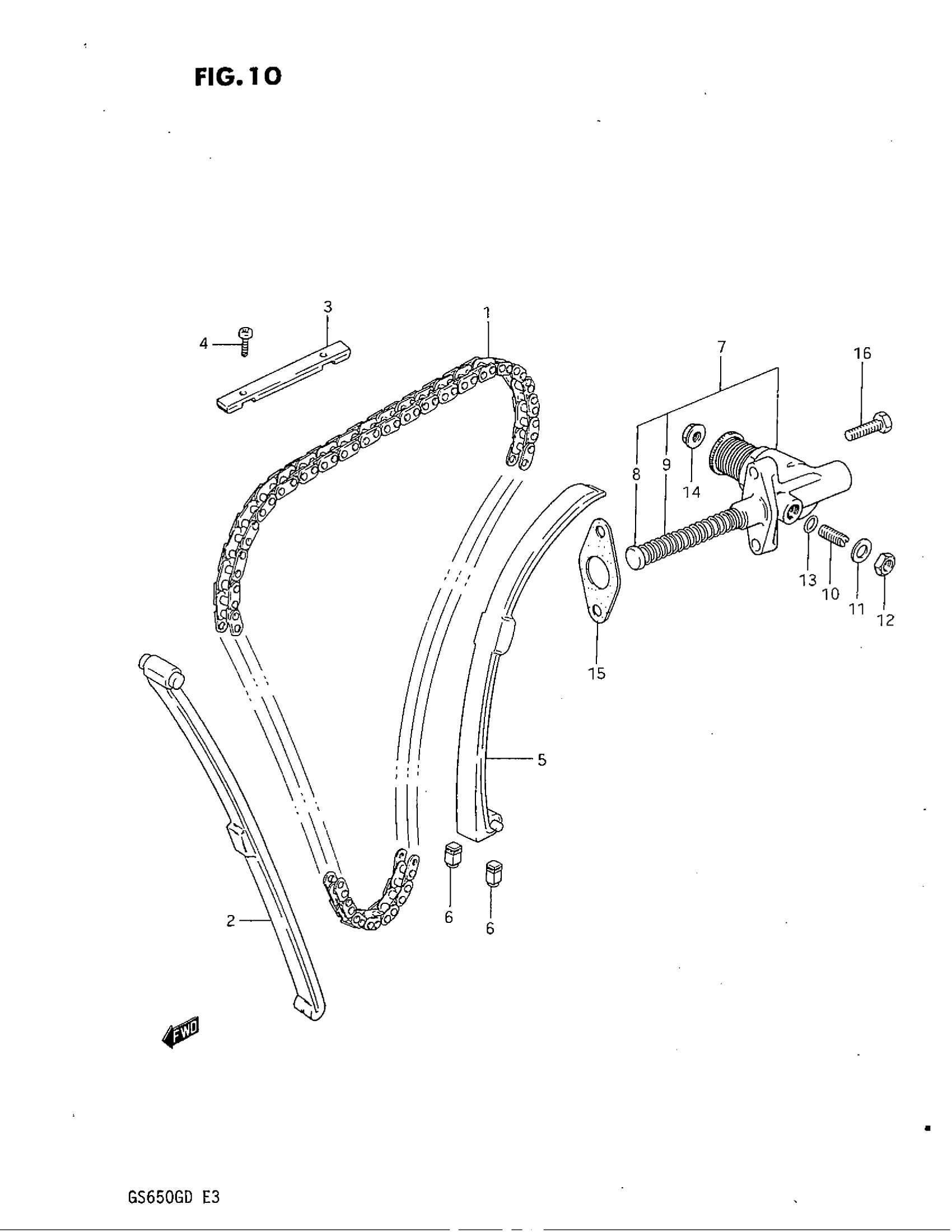

Suzuki GS650G (1983) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (120L)

12760-45040

$149.60

2

GUIDE, CAM CHAIN NO.1

12771-34200

Unavailable

3

GUIDE, CAM CHAIN This part replaces 12782-49140.

12782-33200

Unavailable

4

SCREW This part replaces 02112-05108.

02112-05107

$1.49

5

TENSIONER, CAM CHAIN

12810-34201

Unavailable

6

CUSHION

12814-44101

$6.60

7

ADJUSTER ASSY,T | Includes Item(s) 8 - 14 This part replaces 12830-47010.

12830-0930V

Unavailable

8

PUSH ROD

12833-47001

Unavailable

9

SPRING

09440-12017

$2.45

10

SCREW

12838-45001

$8.42

11

WASHER This part replaces 08322-11088.

08322-01087

$2.13

12

NUT This part replaces 08310-12088.

08310-00087

$2.13

13

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.49

14

NUT This part replaces 08316-16068.

08319-31067

$2.03

15

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$4.22

16

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47
