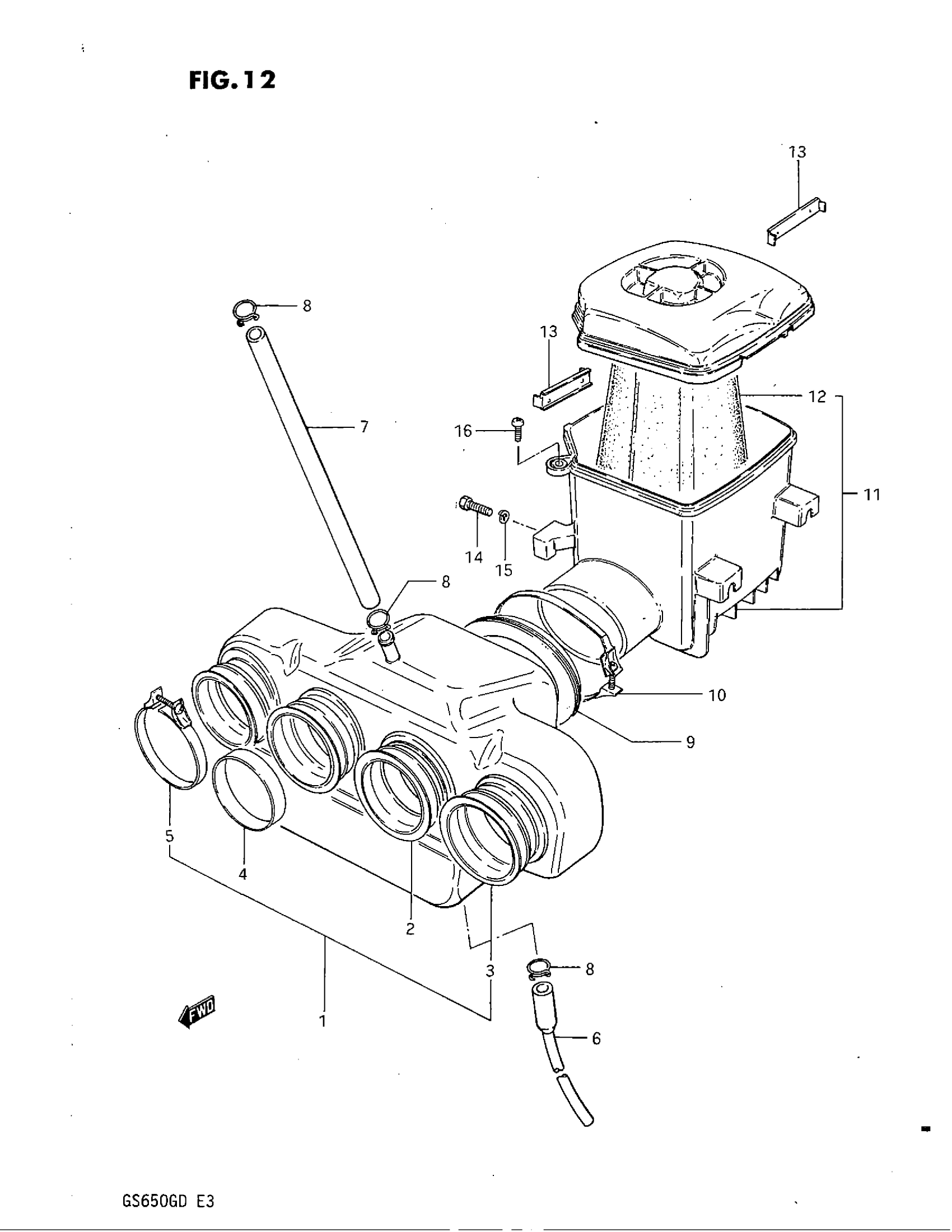

Suzuki GS650G (1983) AIR CLEANER Diagram

#

Description
Price

1

CHAMBER, AIR | Includes Item(s) 2 - 10

13710-34200

Unavailable

2

TUBE, OUTLET INNER

13881-34200

Unavailable

3

TUBE, OUTER OUTER

13882-34200

Unavailable

4

RING

13885-47030

$8.30

5

..CLAMP This part replaces 09402-60206.

09402-60208

$5.11

6

TUBE,DRAIN This part replaces 13870-00020.

13870-11459

$15.51

7

HOSE,11X15X2000 This part replaces 09343-11005.

09352-11154-00B

$48.35

8

CLIP

09401-14301

$2.35

9

TUBE, JOINT

13801-34200

Unavailable

10

CLAMP

09402-84206

Unavailable

11

CASE SET, REAR | Includes Item(s) 12 - 13

13700-34810

Unavailable

12

FILTER

13780-34200

Unavailable

13

SLIDER

13821-00011

$2.90

14

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

SCREW

02142-06167

$1.49
