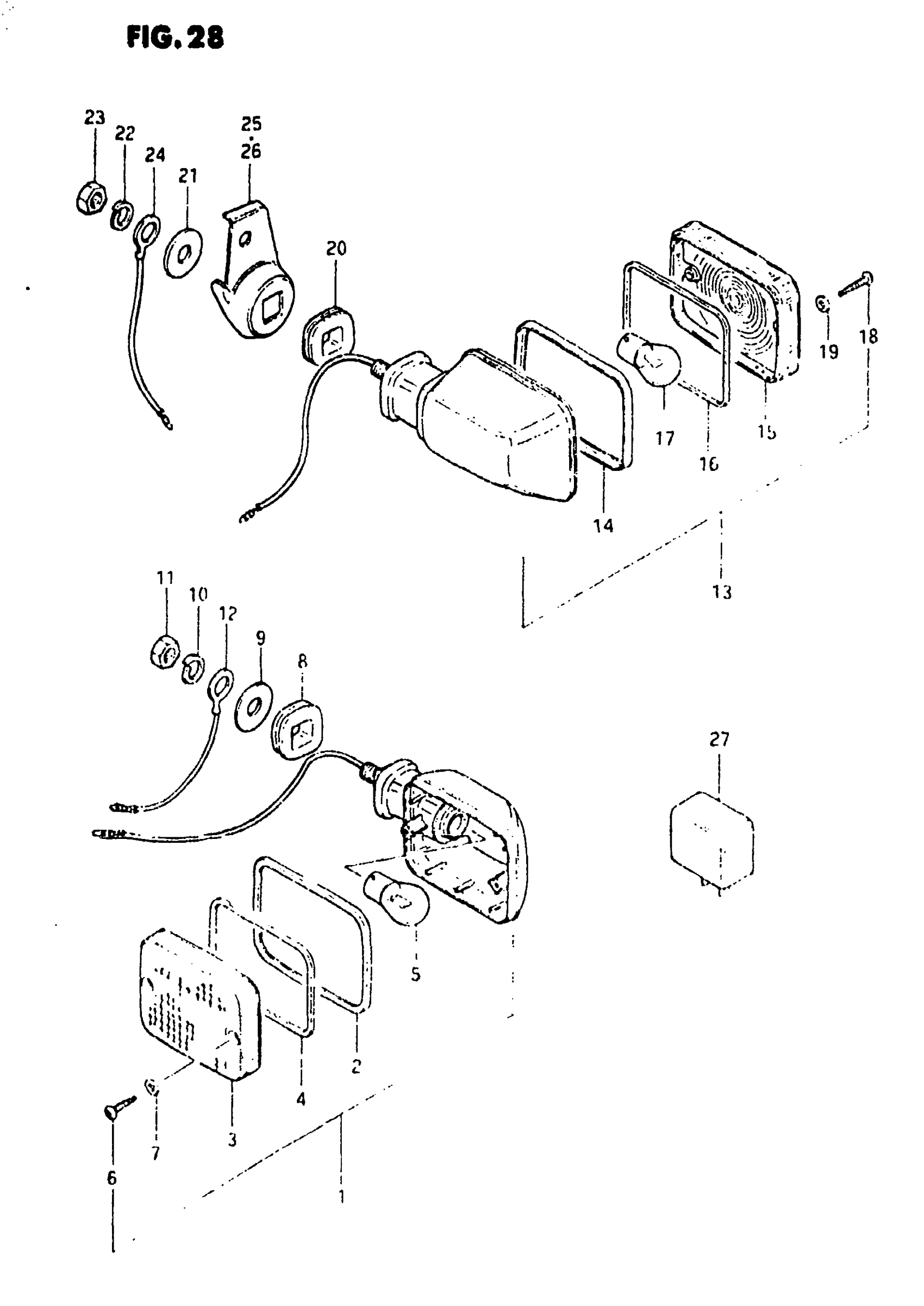

Suzuki GS650G (1982) TURN SIGNAL LAMP (MODEL X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 35601-44131.

35601-44184-999

Unavailable

2

RIM

35611-49230

$13.28

3

LENS

35612-49231

$17.75

4

GASKET

35613-49230

$5.38

5

BULB (12V,23W)

09471-12006

$3.98

6

SCREW This part replaces 03211-04208.

03211-04207

$1.49

7

GASKET

35627-43010

$2.28

8

CUSHION

09320-15002

$4.11

9

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

11

NUT This part replaces 08310-12108.

08310-00107

$2.19

12

LEAD WIRE, FRONT GROUND This part replaces 36862-45000.

36660-33000

$4.52

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 19 This part replaces 35601-44131.

35601-44184-999

Unavailable

14

RIM

35611-49230

$13.28

15

LENS

35612-49231

$17.75

16

GASKET

35613-49230

$5.38

17

BULB (12V,23W)

09471-12006

$3.98

18

SCREW This part replaces 03211-04208.

03211-04207

$1.49

19

GASKET

35627-43010

$2.28

20

CUSHION

09320-15002

$4.11

21

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

NUT This part replaces 08310-12108.

08310-00107

$2.19

24

LEAD WIRE, EARTH

36660-33000

$4.52

25

BRACKET, REAR RH This part replaces 35620-33200.

35620-33201

Unavailable

26

BRACKET, REAR LH This part replaces 35640-33200.

35640-33201

Unavailable

27

RELAY ASSY, TURNSIGNAL This part replaces 38610-45031.

38610-31X50

$80.15
