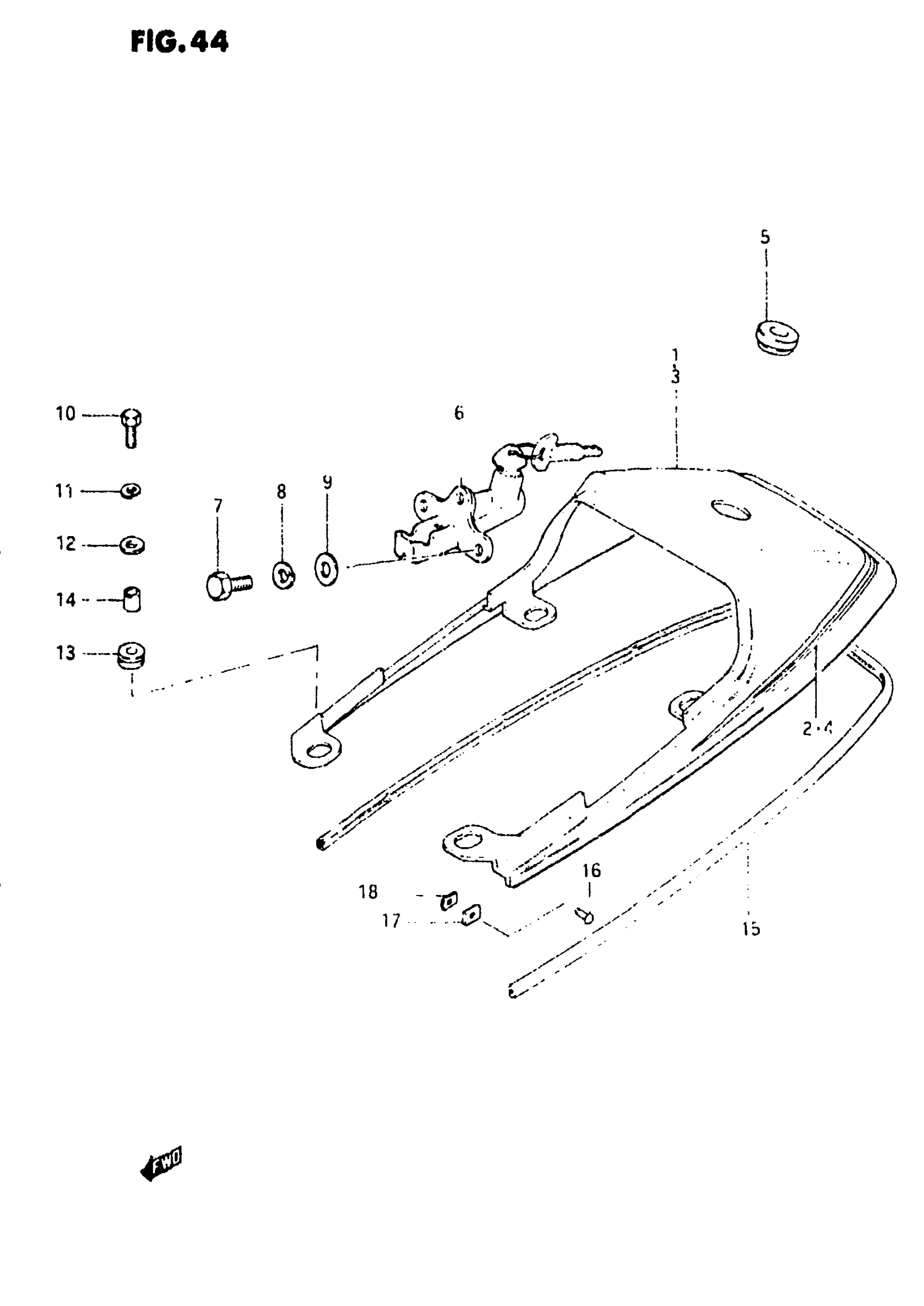

Suzuki GS650G (1982) SEAT TAIL COVER (MODEL Z) Diagram

#

Description
Price

1

COVER, SEAT TAIL (BLACK) | Includes Item(s) 2

45500-34210-13Z

Unavailable

2

TAPE SET

68160-34210-70G

Unavailable

3

COVER, SEAT TAIL (RED) | Includes Item(s) 4

45500-34210-05L

Unavailable

4

TAPE SET

68160-34210-71F

Unavailable

5

GROMMET

45522-49200

$4.58

6

LOCK ASSY, SEAT

95700-49830

Unavailable

7

BOLT This part replaces 01107-06128.

01500-06127

$1.97

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

BOLT This part replaces 01107-06208.

01500-06207

$2.28

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER This part replaces 09160-06012.

09160-06054

$1.62

13

CUSHION This part replaces 09320-10011.

09320-10072

$2.32

14

SPACER

09180-07004

$2.30

15

MOUL, SEAT TAIL | Includes Item(s) 16 - 18

45520-34200

Unavailable

16

RIVET

09220-03002

$2.38

17

WASHER

45528-34200

Unavailable

18

NUT

09148-03002

$2.15
