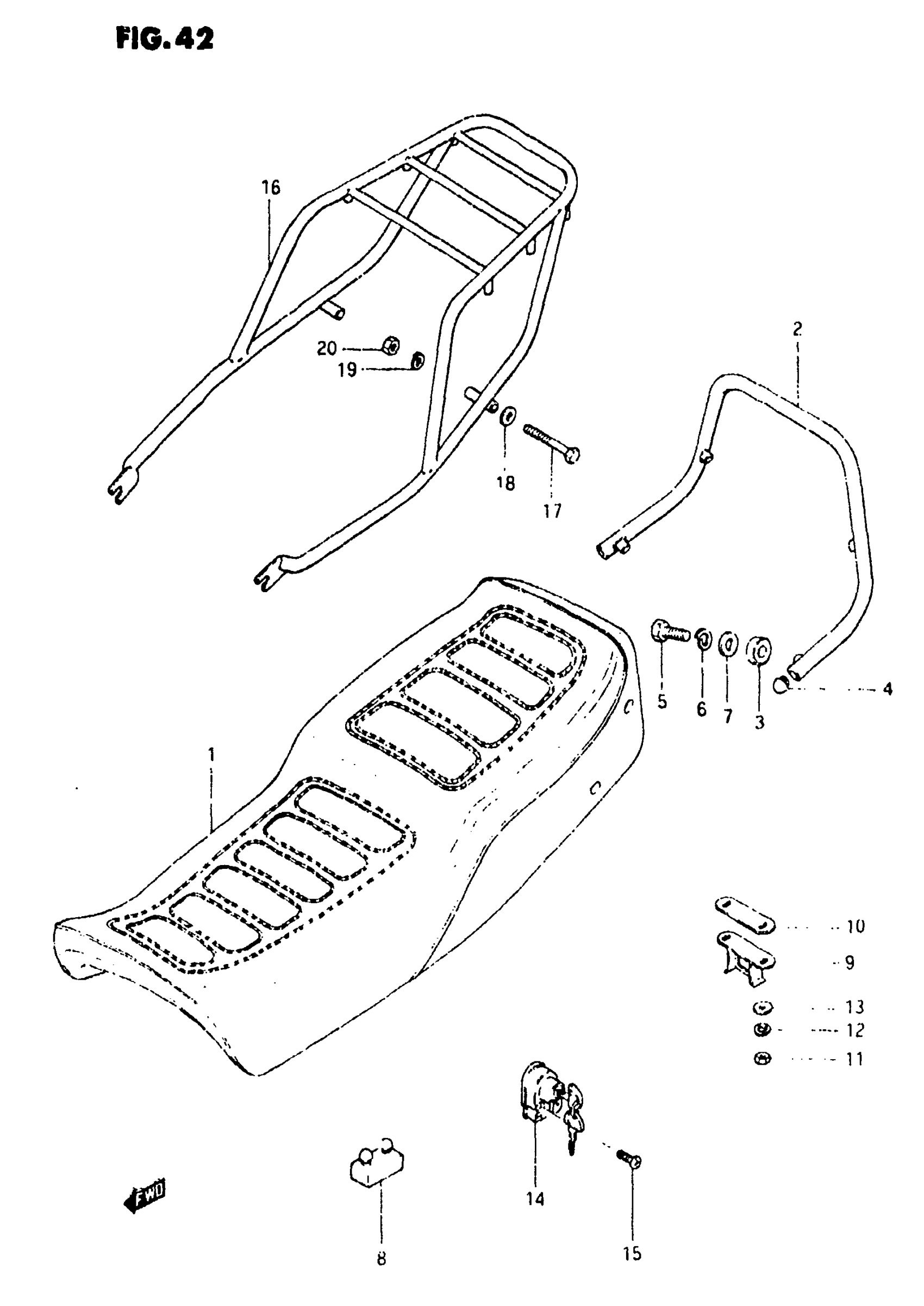

Suzuki GS650G (1982) SEAT Diagram

#

Description
Price

1

SEAT (BLACK) | MODEL X This part replaces 45100-34211-41G.

45100-34240-48G

Unavailable

1

SEAT (BLACK) | MODEL Z; Includes Item(s) 2 - 7 This part replaces 45100-34212-47G.

45100-34240-48G

Unavailable

2

HANDLE, PILLION RIDER

46210-34201

Unavailable

3

CUSHION

46212-49000

Unavailable

4

END, HANDLE

46213-49000

Unavailable

5

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

WASHER This part replaces 08322-21088.

08322-01087

$2.13

8

CUSHION

09321-08006

$2.90

9

STRIKER, SEAT LOCK

45210-44101

Unavailable

10

SHIM

45217-44100

Unavailable

11

.NUT This part replaces 08310-22068.

08310-00067

$2.13

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

LOCK ASSY, HELMET

95700-34210

Unavailable

15

BOLT This part replaces 09106-05008.

07130-0525B

$2.52

16

CARRIER, SPORTS | OPT

46310-34200

Unavailable

17

BOLT | OPT

01204-08957

Unavailable

18

WASHER | OPT This part replaces 08322-11088.

08322-01087

$2.13

19

.LOCK WASHER | OPT This part replaces 08321-21088.

08321-01087

$2.13

20

NUT | OPT This part replaces 08310-22088.

08310-00087

$2.13
