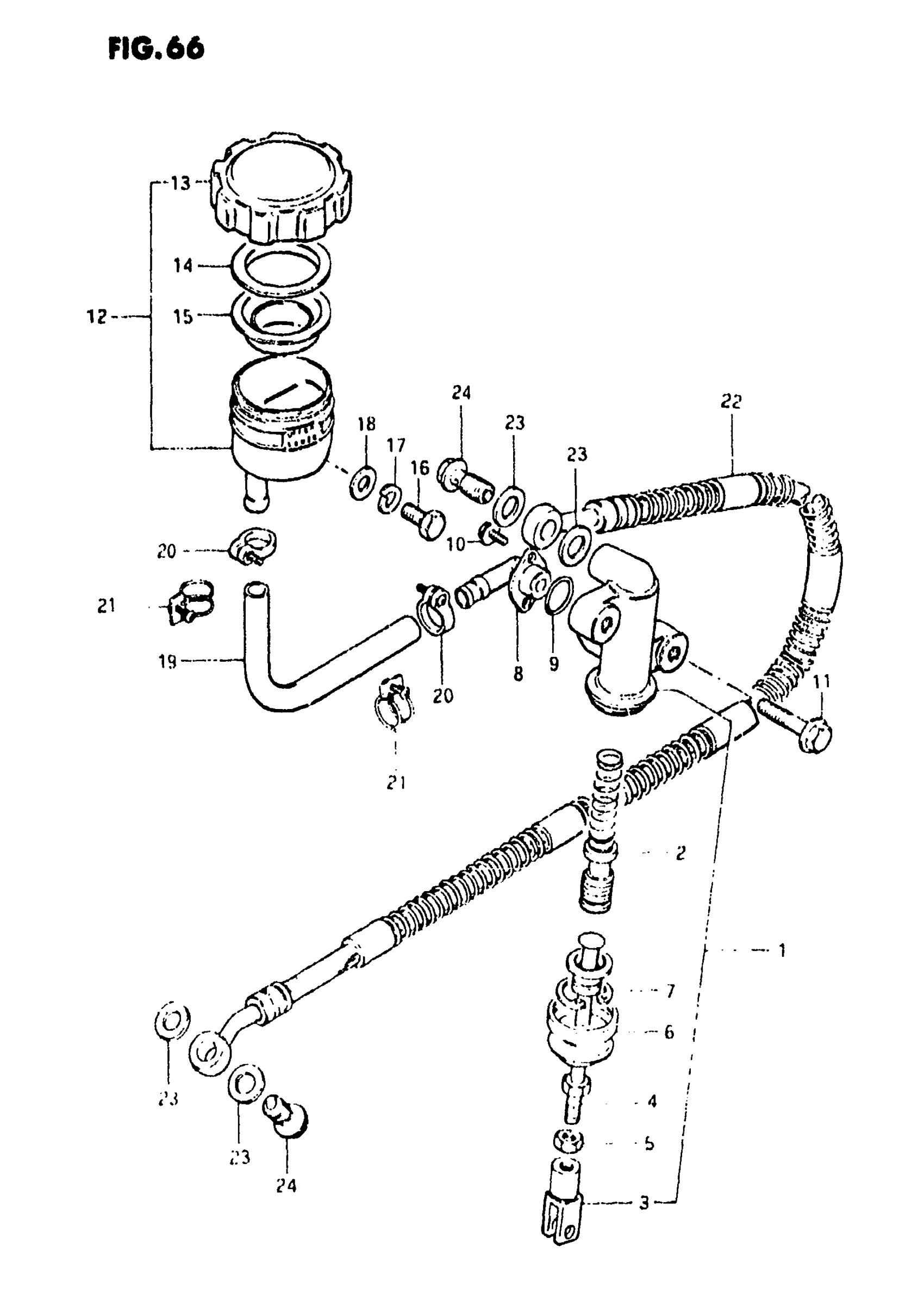

Suzuki GS650G (1982) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | MODEL X This part replaces 69600-34200.

69600-34201

Unavailable

1

CYLINDER ASSY, REAR MASTER | MODEL Z; Includes Item(s) 2 - 10

69600-34201

Unavailable

2

PISTON & CUP SET

69600-34810

$56.48

3

YOKE | MODEL X This part replaces 69692-45001.

69692-34300

Unavailable

3

YOIE | MODEL Z

69692-34300

Unavailable

4

ROD, PUSH | MODEL X This part replaces 69670-34200.

69670-34201

Unavailable

4

ROD, PUSH | MODEL Z

69670-34201

Unavailable

5

NUT | MODEL X This part replaces 08310-12088.

08310-00087

$2.13

5

NUT | MODEL Z This part replaces 69693-34300.

69693-05A00

$1.96

6

BOOT

69691-45001

$5.70

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-34200

Unavailable

9

O RING

69686-34200

$2.93

10

.SCREW This part replaces 69688-34200.

57465-17C00

$2.19

11

BOLT This part replaces 01517-08358.

01550-08357

$3.49

12

TANK ASSY,RR RS | Includes Item(s) 13 - 15 This part replaces 69740-34230.

69740-31D00

Unavailable

13

CAP This part replaces 59669-33603.

59669-07D00

$31.72

14

PLATE, DIAPHRAGM

59668-18441

$4.52

15

DIAPHRAGM

59667-18441

$10.28

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

HOSE

69731-34200

Unavailable

20

CLAMP | MODEL X

69735-34200

Unavailable

21

CLAMP | MODEL Z This part replaces 09400-16302.

09400-16304

$3.10

22

HOSE, REAR BRAKE

69480-34201

Unavailable

23

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

24

UNION This part replaces 09360-10007.

09360-10017

$3.42
