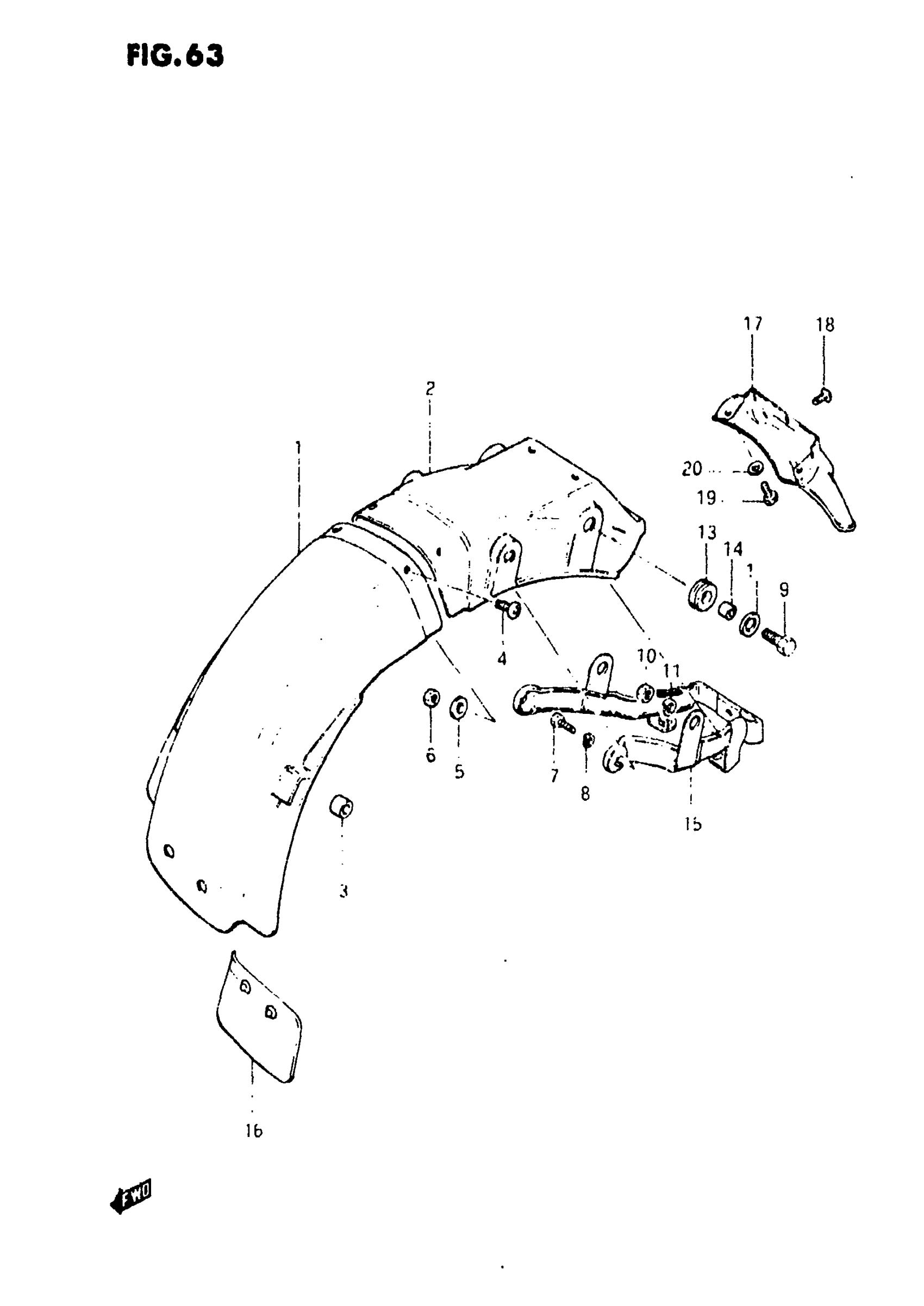

Suzuki GS650G (1982) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT | MODEL X This part replaces 63112-34201.

63112-34202

Unavailable

1

BODY, REAR FENDER FRONT | MODEL Z

63112-34202

Unavailable

2

BODY, REAR FENDER REAR

63113-34200

Unavailable

3

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

4

SCREW This part replaces 02142-05128.

02142-05127

$1.97

5

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

6

NUT This part replaces 08310-11058.

08310-00057

$1.84

7

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

BOLT This part replaces 01107-08308.

01500-08307

$3.04

10

NUT This part replaces 08310-12088.

08310-00087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER This part replaces 08322-11088.

08322-01087

$2.13

13

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

14

SPACER This part replaces 09180-08021.

09180-08188

$2.56

15

REINFORCEMENT, REAR FENDER

63120-34200

Unavailable

16

MUD GUARD, REAR FENDER

63411-31900

Unavailable

17

EXTENTION, REAR FENDER

63311-34200

Unavailable

18

SCREW

02142-06167

$1.49

19

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

20

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91
