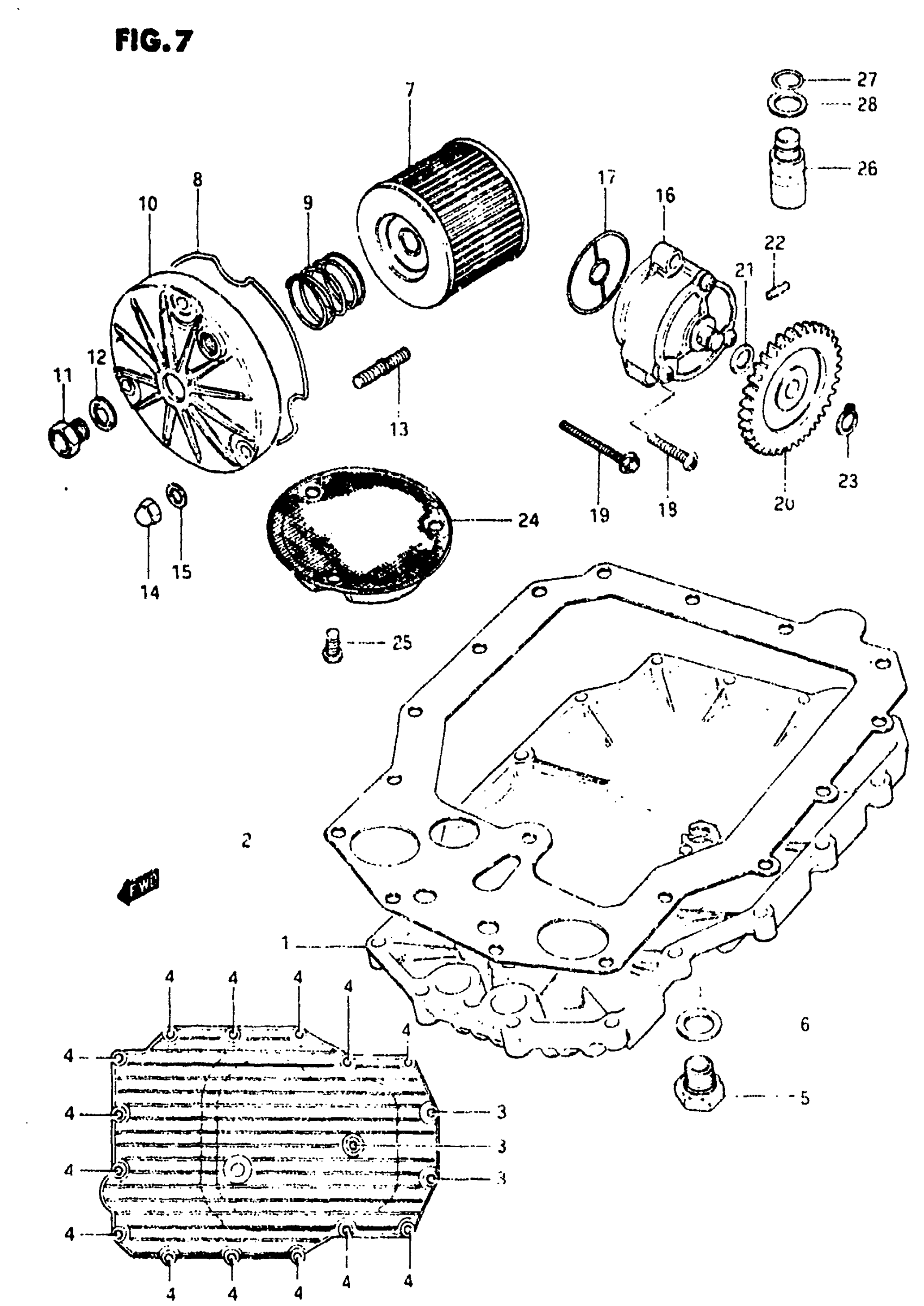

Suzuki GS650G (1982) OIL PUMP - OIL FILTER Diagram

#

Description
Price

1

PAN, OIL | ~E.NO.136328 This part replaces 11511-34200.

11511-34201

Unavailable

1

PAN, OIL | E.NO.136329~

11511-34201

Unavailable

2

GASKET,OIL PAN( | ~E.NO.136328 This part replaces 11489-34200.

11489-34210

Unavailable

2

GASKET,OIL PAN( | E.NO.136329~ This part replaces 11489-34201.

11489-34210

Unavailable

3

BOLT This part replaces 01517-06308.

01550-06307

$2.69

4

BOLT This part replaces 01517-06258.

01550-06257

$2.30

5

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

6

GASKET

09168-14004

$1.83

7

FILTER, ENGINE OIL

16510-45040

$5.96

8

O RING

16518-45000

$5.70

9

SPRING

09440-32004

$2.92

10

NO DESCRIPTION AVAILABLE This part replaces 16512-34200.

16512-33311

Unavailable

11

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

12

GASKET

09168-14004

$1.83

13

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

14

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

PUMP, ENGINE OIL | ~E.NO.123251 This part replaces 16400-34300.

16400-34310

Unavailable

16

PUMP, ENGINE OIL | E.NO.123252~

16400-34310

Unavailable

17

O RING This part replaces 16491-49200.

16491-31300

$13.90

18

SCREW | ~E.NO.123251 This part replaces 02112-06258.

02112-06257

$1.78

19

BOLT | E.NO.123252~ This part replaces 01517-06408.

01550-06407

$2.69

20

GEAR, DRIVEN (NT:33) | NT:33 This part replaces 16331-49990.

16331-49000

Unavailable

21

WASHER

08221-10185

$2.15

22

PIN

09261-04009

$1.56

23

CIRCLIP

08331-31109

$1.78

24

STRAINER, ENGINE OIL

16520-34200

Unavailable

25

SCREW This part replaces 02112-06128.

02112-06127

$1.84

26

REGULATOR, ENGINE OIL

16440-34200

Unavailable

27

O RING, OIL GALLERY This part replaces 09280-12005.

09280-12012

$4.64

28

WASHER | MODEL X

08212-14181

Unavailable
