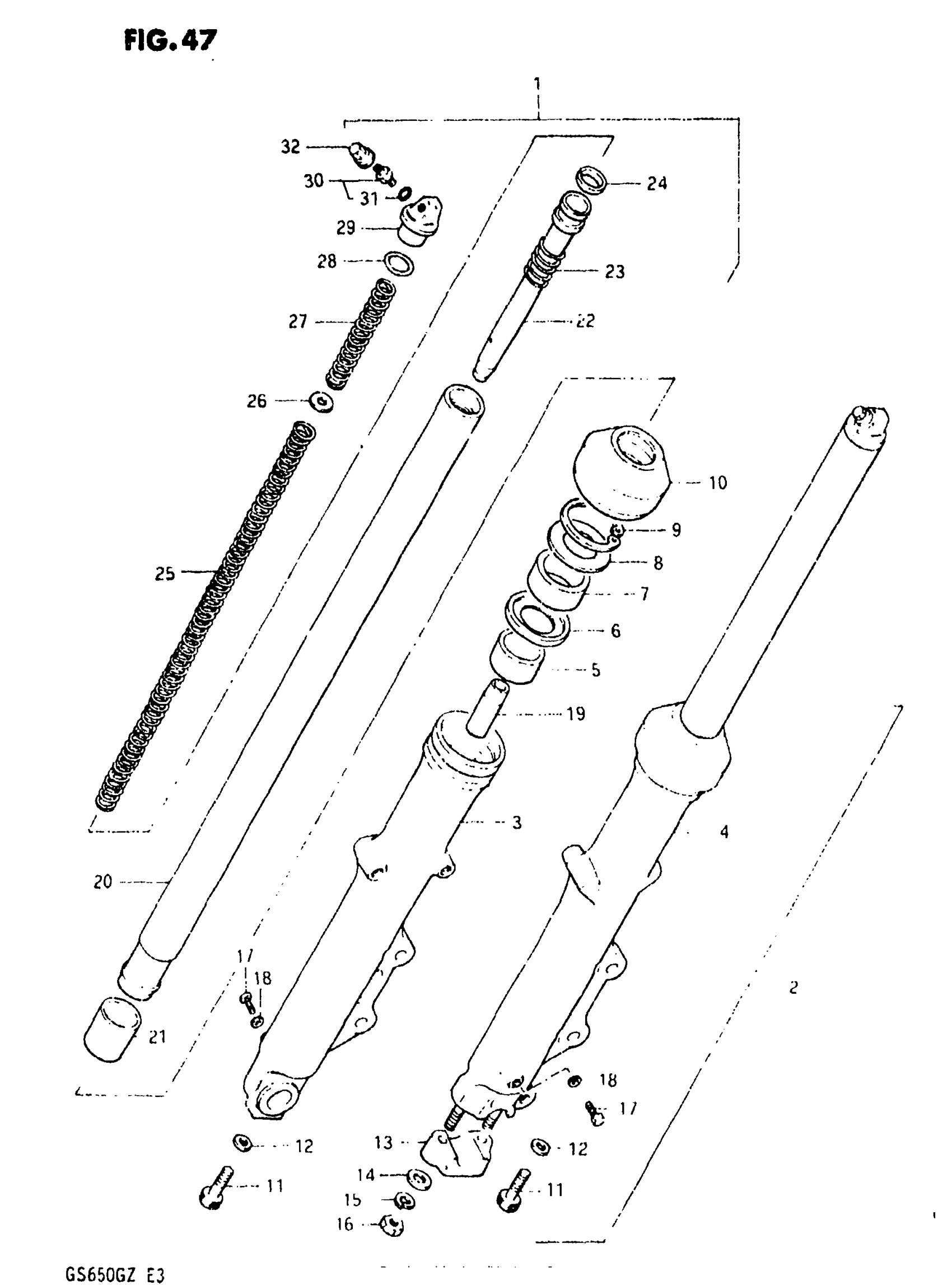

Suzuki GS650G (1982) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-34200

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 29

51104-34200

Unavailable

3

OUTER TUBE, RH

51130-34200

Unavailable

4

OUTER TUBE, LH

51140-34200

Unavailable

5

GUIDE, TUBE

51152-45400

$15.10

6

SPACER, SEAL This part replaces 51168-45031.

51168-30B00

$6.31

7

SEAL, OIL This part replaces 51153-34200.

51153-19D10

$22.96

8

RING

51158-45440

Unavailable

9

RING, STOPPER This part replaces 51156-45440.

51156-01A00

$4.34

10

DUST SEAL This part replaces 51571-34200.

51571-20520

Unavailable

11

BOLT

51147-48130

$4.34

12

O RING This part replaces 51148-31030.

51148-36011

$3.56

13

HOLDER, AXLE

51132-31030

Unavailable

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

NUT

09140-08008

$1.49

17

BOLT

09100-06011

$1.67

18

GASKET

51183-31030

$3.77

19

PIECE, OIL LOCK

51195-45030

Unavailable

20

INNER TUBE

51110-34200

Unavailable

21

PISION

51121-45400

Unavailable

22

PIPE, SEAT This part replaces 51146-34200.

51146-47600

Unavailable

23

SPRING

51177-45030

Unavailable

24

RING, PISTON

51196-31230

Unavailable

25

SPRING B

51184-34200

Unavailable

26

GUIDE, SPRING

51192-47200

Unavailable

27

SPRING A

51171-34200

Unavailable

28

O RING This part replaces 51117-31030.

51181-31030

$4.37

29

BOLT

51351-45440

Unavailable

30

VALVE, AIR | Includes Item(s) 31 - 32

51293-45440

Unavailable

31

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

32

CAP

51294-45440

Unavailable
