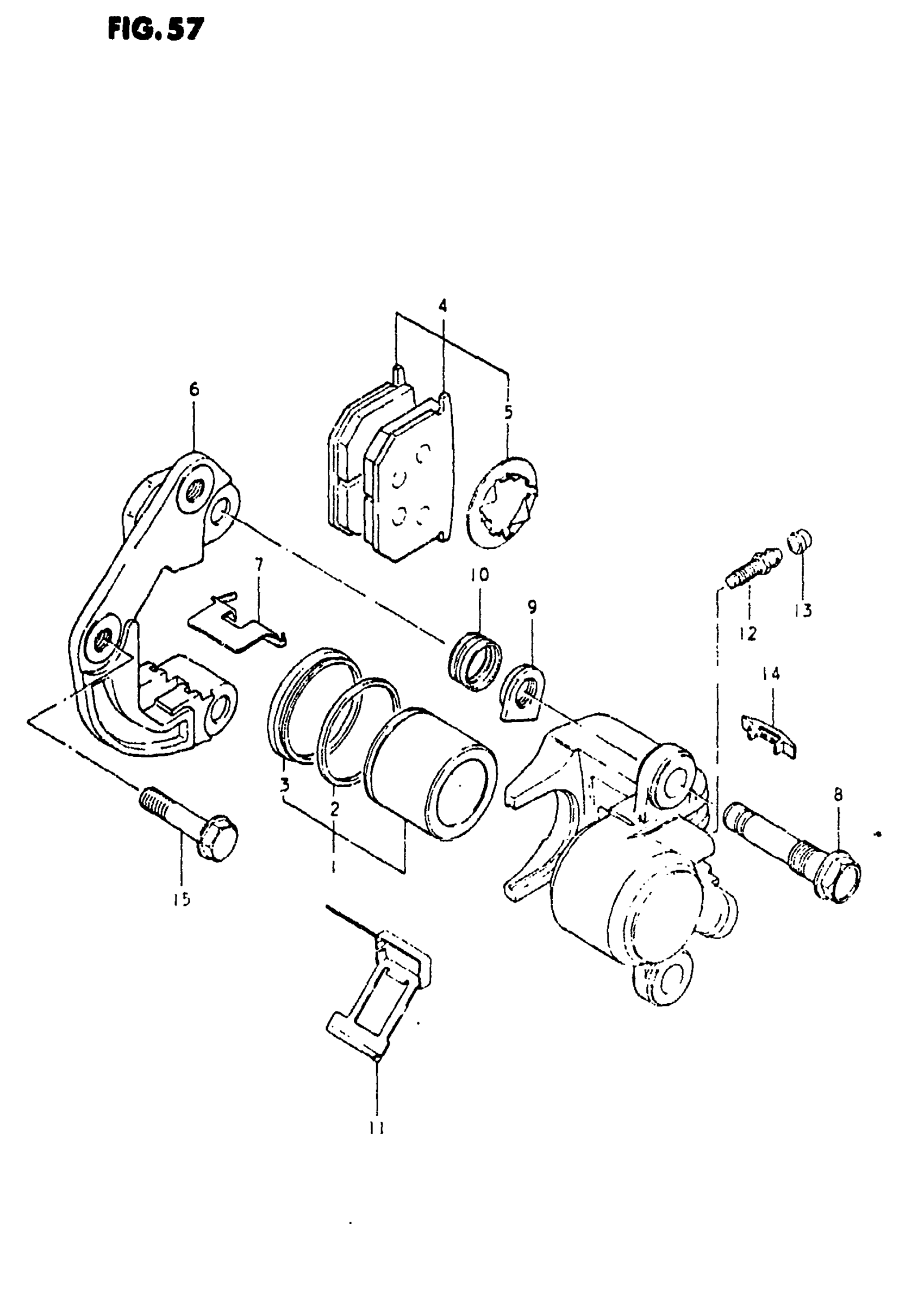

Suzuki GS650G (1982) FRONT CALIPERS (MODEL X) Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE This part replaces 59100-49001.

59100-49020

Unavailable

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 14 This part replaces 59300-49001.

59300-49020

Unavailable

1

PISTON SET This part replaces 59300-49810.

59300-49811

Unavailable

2

PISTON SEAL This part replaces 59107-34020.

59107-34021

Unavailable

3

BOOT, PISTON

59308-49000

Unavailable

4

PAD SET This part replaces 59300-49820.

59300-49850

Unavailable

5

SHIM, PAD

59371-49000

Unavailable

6

HOLDER, CALIPERS RH This part replaces 59150-49000.

59150-49001

Unavailable

6

HOLDER, CALIPERS LH This part replaces 59350-49000.

59350-49001

Unavailable

7

GUIDE, PAD This part replaces 59316-49000.

59316-49001

Unavailable

8

AXLE, CALIPERS This part replaces 59305-49000.

59305-49001

$42.64

9

NUT

59317-49000

Unavailable

10

BOOT

59312-49000

Unavailable

11

SPRING

59315-49000

Unavailable

12

BREATHER This part replaces 59121-47050.

59121-34020

$13.35

13

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

$5.17

14

COVER

59324-49000

Unavailable

15

BOLT

09103-10019

$2.63
