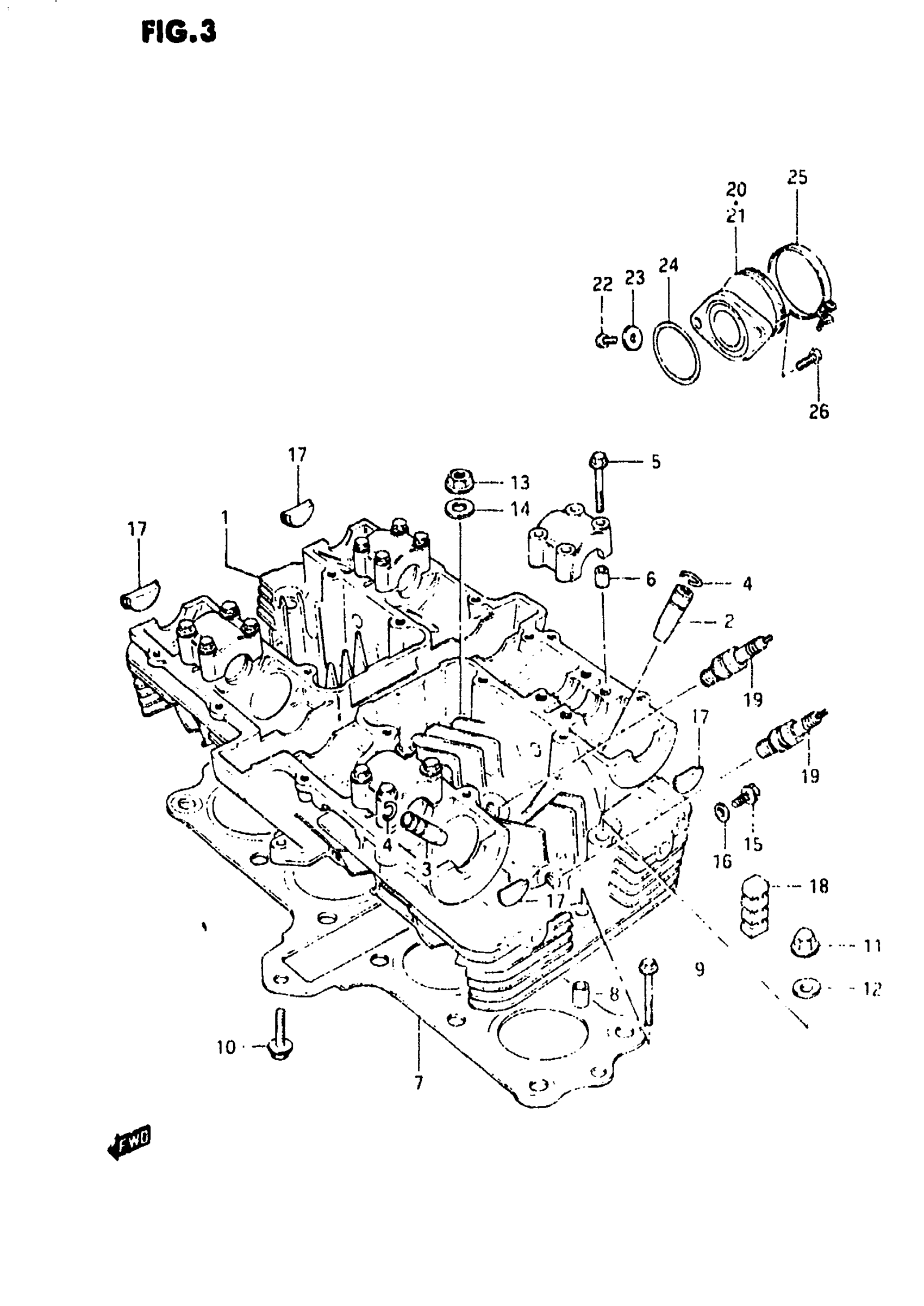

Suzuki GS650G (1982) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | ~F.NO.103560 This part replaces 11100-34200.

11100-34810

Unavailable

1

CYLINDER HEAD SET | F.NO.103561~; Includes Item(s) 2 - 6

11100-34210

Unavailable

2

GUIDE, INTAKE VALVE

11115-34270

Unavailable

3

GUIDE, EXHAUST VALVE

11116-47740

$40.73

4

RING, VALVE GUIDE

09381-10003

$2.47

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

GASKET SET,CYL | MODEL X This part replaces 11141-34200.

11140-34811

Unavailable

7

GASKET SET,CYL | MODEL Z This part replaces 11141-34202.

11140-34811

Unavailable

8

PIN

04211-11189

$1.78

9

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

10

BOLT This part replaces 01517-06308.

01550-06307

$2.69

11

NUT

09159-08029

$5.81

12

GASKET This part replaces 09168-08009.

09168-08013

$2.92

13

NUT This part replaces 09159-08031.

09159-08034

$1.62

14

WASHER

09160-08039

$2.03

15

BOLT This part replaces 01517-06128.

01550-06127

$2.30

16

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

17

PLUG, CYLINDER HEAD SIDE

09241-23002

$6.17

18

PAD CYLINDER This part replaces 11252-36500.

11251-36200

Unavailable

19

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

19

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

20

PIPE,INTAKE,R This part replaces 13110-47010.

13110-47011

$31.76

21

PIPE,INTAKE,L This part replaces 13120-47010.

13120-47011

$32.86

22

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.62

23

WASHER This part replaces 08322-21058.

08322-01057

$2.13

24

O RING This part replaces 09280-38003.

09280-38004

$2.92

25

CLAMP

09402-50306

$4.77

26

SCREW This part replaces 02112-06168.

02112-06167

$1.49
