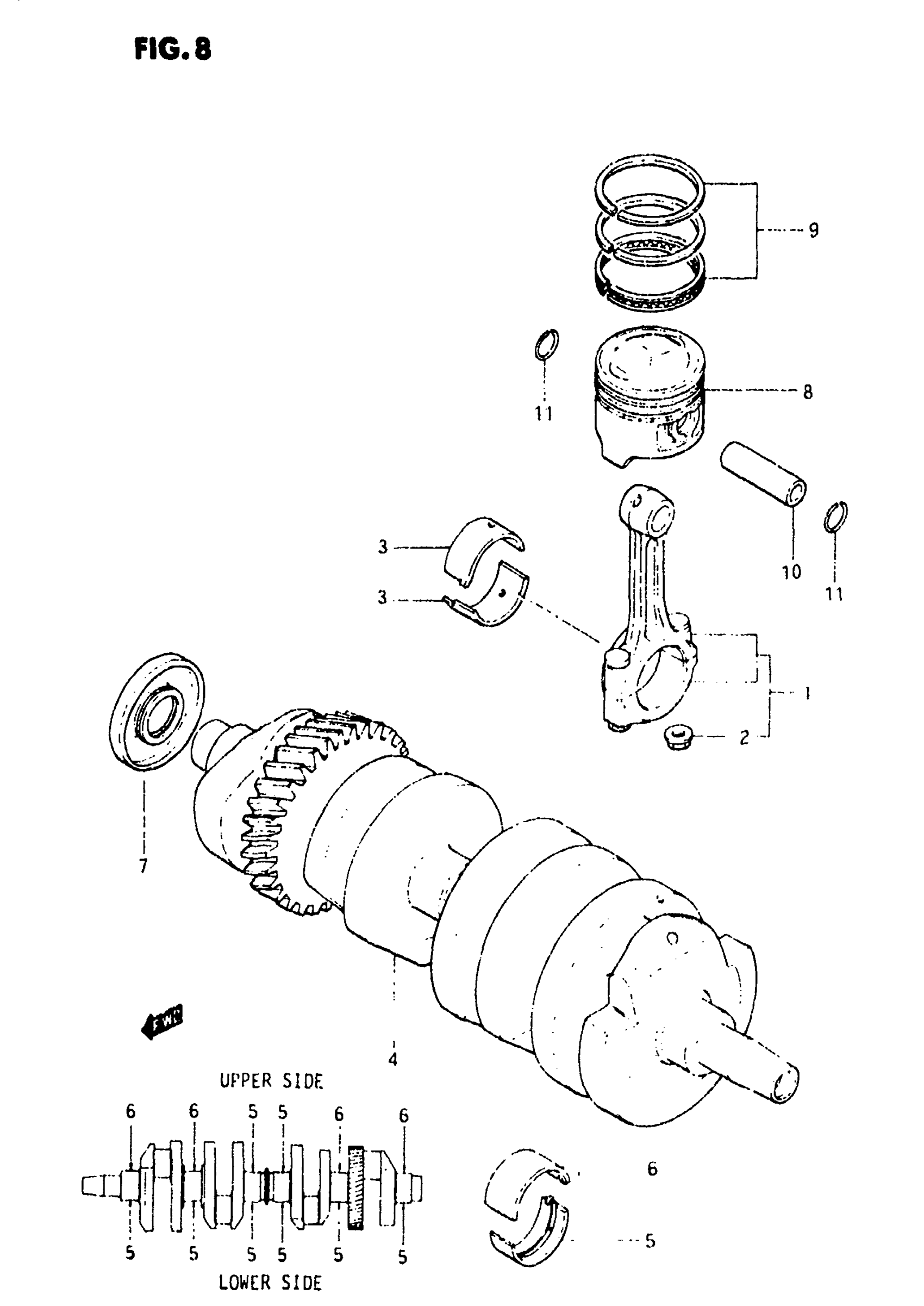

Suzuki GS650G (1982) CRANKSHAFT Diagram

#

Description
Price

1

ROD, CONNECTING | Includes Item(s) 2

12160-34202

Unavailable

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-34210-010.

12164-17E01-0A0

$16.98

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-34210-020.

12164-17E01-0B0

$16.98

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-34210-030.

12164-17E01-0C0

$14.45

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-34210-040.

12164-17E01-0D0

$17.65

3

BEARING, CRANK PIN (US:0.25) | OPT

12164-34210-025

Unavailable

3

BEARING, CRANK PIN (US:0.5) | OPT

12164-34210-050

Unavailable

4

CRANKSHAFT This part replaces 12220-34202.

12220-34203

Unavailable

5

BEARING, CRANKSHAFT (GREEN) This part replaces 12229-45400-010.

12229-09301-0A0

Unavailable

5

BEARING, CRANKSHAFT (BLACK) This part replaces 12229-45400-020.

12229-09301-0B0

Unavailable

5

BEARING, CRANKSHAFT (BROWN) This part replaces 12229-45400-030.

12229-09301-0C0

Unavailable

5

BEARING, CRANKSHAFT (YELLOW) This part replaces 12229-45400-040.

12229-09301-0D0

Unavailable

5

BEARING, CRANKSHAFT (US:0.25) | OPT

12229-45400-025

Unavailable

5

BEARING, CRANKSHAFT (GREEN) | OPT This part replaces 12229-45400-010.

12229-09301-0A0

Unavailable

6

BEARING, CRANKSHAFT (GREEN) This part replaces 12229-45410-010.

12229-06B10-0A0

$12.00

6

BEARING, CRANKSHAFT (BLACK) This part replaces 12229-45410-020.

12229-06B10-0B0

$10.21

6

BEARING, CRANKSHAFT (BROWN) This part replaces 12229-45410-030.

12229-06B10-0C0

$10.21

6

BEARING, CRANKSHAFT (YELLOW) This part replaces 12229-45410-040.

12229-06B10-0D0

$12.45

6

BEARING, CRANKSHAFT (US:0.25) | OPT This part replaces 12229-45410-025.

12229-45400-025

Unavailable

6

BEARING, CRANKSHAFT (US:0.5) | OPT This part replaces 12229-45410-050.

12229-45400-050

Unavailable

7

OIL SEAL This part replaces 09283-30031.

09283-30048

Unavailable

8

PISTON (STD) This part replaces 12111-34202.

12111-34210

Unavailable

8

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-34202-050.

12103-34830-050

Unavailable

8

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-34202-100.

12103-34830-100

Unavailable

9

PISTON RING SET (STD) This part replaces 12140-34211.

12140-34240

$58.38

9

PISTON RING SET (OS:0.5) | OPT This part replaces 12140-34211-050.

12140-34240-050

Unavailable

9

PISTON RING SET (OS:1.0) | OPT This part replaces 12140-34211-100.

12140-34240-100

Unavailable

10

PIN, PISTON

12151-67001

$16.43

11

SNAP RING This part replaces 09381-16002.

09381-16001

$1.67
