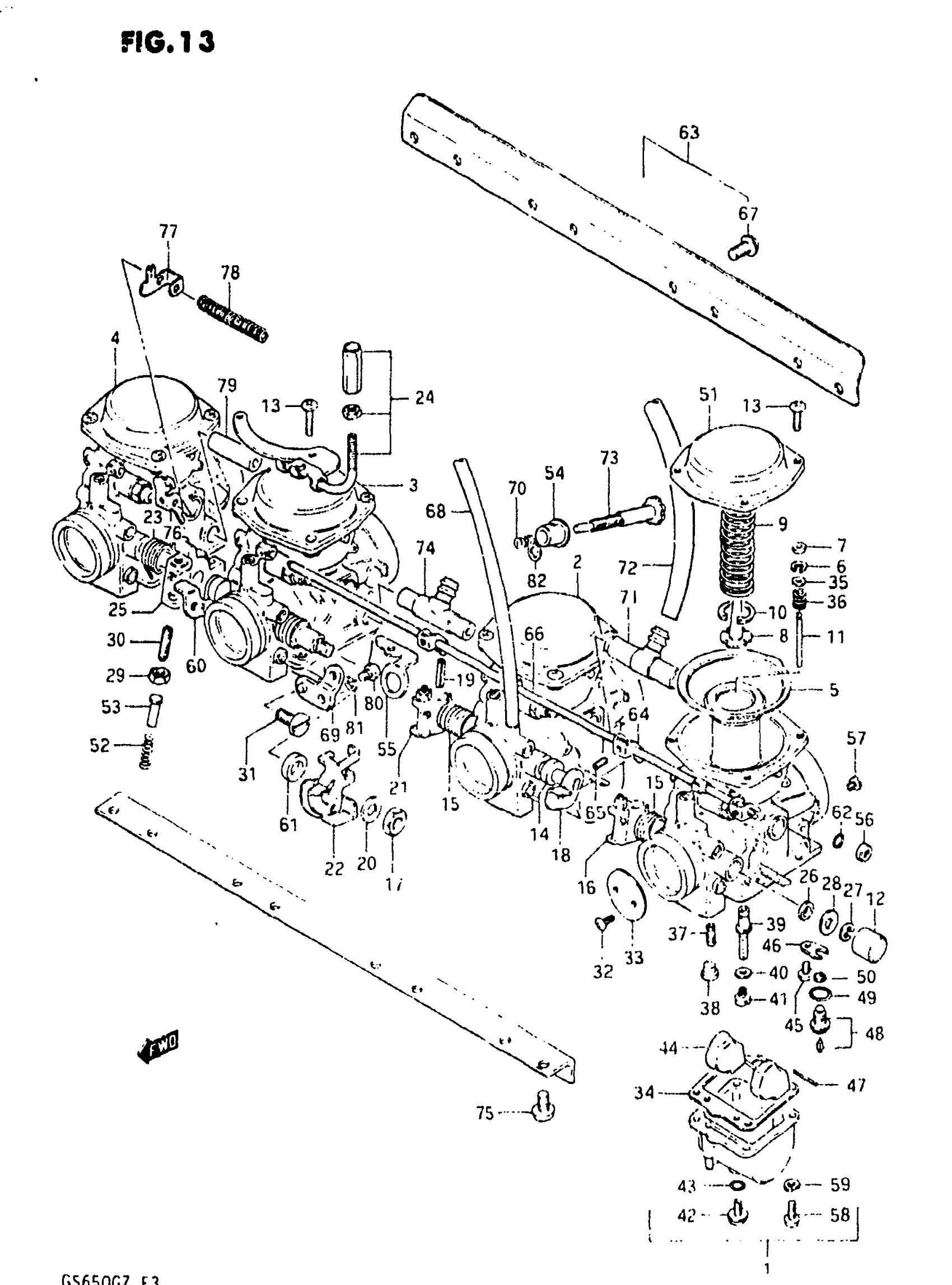

Suzuki GS650G (1982) CARBURETOR (MODEL Z) Diagram

#

Description
Price

1

CARBURETOR, LH

13201-34300

Unavailable

2

CARBURETOR, ML

13202-34300

Unavailable

3

CARBURETOR, MR

13203-34300

Unavailable

4

CARBURETOR, RH | Includes Item(s) 5 - 62

13204-34300

Unavailable

5

DIAPHRAGM This part replaces 13500-45110.

13500-45111

Unavailable

6

E RING

13394-31210

$4.64

7

RING

13387-44030

$5.83

8

HOLDER, GUIDE

13389-44030

Unavailable

9

SPRING

13503-47070

Unavailable

10

CLIP

13581-44030

$6.78

11

NEEDLE, JET (5C45)

13383-34200

Unavailable

12

CAP | LH, RH

13578-47070

$4.52

13

SCREW This part replaces 02112-05168.

02112-05167

$1.97

14

GASKET | ML, MR

13557-47070

$3.59

15

SPRING | LH, ML

13573-47070

Unavailable

16

SHAFT | LH

13550-47070

Unavailable

17

NUT | MR This part replaces 08310-22088.

08310-00087

$2.13

18

SHAFT | ML

13550-47080

Unavailable

19

PIN | LH, ML, RH

13563-47070

Unavailable

20

WASHER | MR

13606-47070

Unavailable

21

LEVER | ML

13553-47070

Unavailable

22

LEVER | MR

13555-47070

Unavailable

23

SPRING | MR, RH

13573-47080

Unavailable

24

BRACKET | MR

13621-47180

Unavailable

25

SHAFT | RH

13550-47090

Unavailable

26

SEAL This part replaces 13556-31210.

13651-51011

$2.20

27

E RING | LH, RH

13617-44080

$2.90

28

GASKET | LH, RH

13557-47070

$3.59

29

NUT | LH, ML, RH

13607-47070

$3.13

30

SCREW | LH, ML, RH

13605-47080

$7.77

31

SCREW | MR This part replaces 13605-45410.

13605-73000

$11.95

32

SCREW, THROTTLE VALVE

13604-44080

$2.92

33

THROTTLE VALVE (135)

13551-47090

Unavailable

34

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

$8.68

35

WASHER

13382-44030

$3.71

36

SPRING

13388-44030

$8.12

37

JET, PILOT (42.5)

09492-42007

Unavailable

38

PLUG

13357-44080

$5.10

39

JET, NEEDLE (Y-7)

09494-00319

Unavailable

40

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

41

JET, MAIN (110)

09491-22016

$10.06

42

SCREW

13247-44080

$7.97

43

GASKET

13246-44080

$2.80

44

FLOAT

13250-44080

$28.49

45

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

46

PLATE

13373-11400

$7.05

47

PIN

13254-92311

$2.07

48

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-11400.

13370-44500

$50.98

49

O RING This part replaces 13374-44080.

13374-35C00

$5.99

50

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

51

COVER

13502-45110

Unavailable

52

SPRING | LH, ML, RH

13268-44010

Unavailable

53

PIN | LH, ML, RH

13575-47070

Unavailable

54

BUSHING | MR

13276-31210

Unavailable

55

BRACKET | MR

13627-44090

Unavailable

56

.CAP, STARTER VALVE

13682-31210

$4.37

57

JET (160)

09493-32002

$16.57

58

SCREW This part replaces 02112-05168.

02112-05167

$1.97

59

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

60

SHAFT | MR

13550-47100

Unavailable

61

WASHER | MR

13589-47070

$1.98

62

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

63

FLANGE ASSY | Includes Item(s) 64 - 82

13210-47180

Unavailable

64

LEVER

13422-44080

Unavailable

65

SCREW

13605-47070

Unavailable

66

SHAFT

13410-47070

Unavailable

67

SCREW This part replaces 02152-05128.

02142-05127

$1.97

68

HOSE(4.5X8.5X60 This part replaces 13683-31610.

09355-45001-600

$9.48

69

BRACKET

13627-47070

Unavailable

70

SPRING

13271-93011

$5.32

71

NIPPLE

13685-47070

$28.65

72

HOSE(6X10X600) This part replaces 13683-47070.

09352-60104-600

$8.99

73

ADJUSTER

13267-47070

Unavailable

74

NIPPLE

13685-47080

Unavailable

75

SCREW This part replaces 02112-06128.

02112-06127

$1.84

76

LEVER

13413-49220

Unavailable

77

LEVER

13421-49220

Unavailable

78

SPRING

13437-49220

Unavailable

79

NIPPLE

13685-47090

Unavailable

80

SCREW This part replaces 02112-05108.

02112-05107

$1.49

81

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

82

WASHER

13432-47090

$2.28
