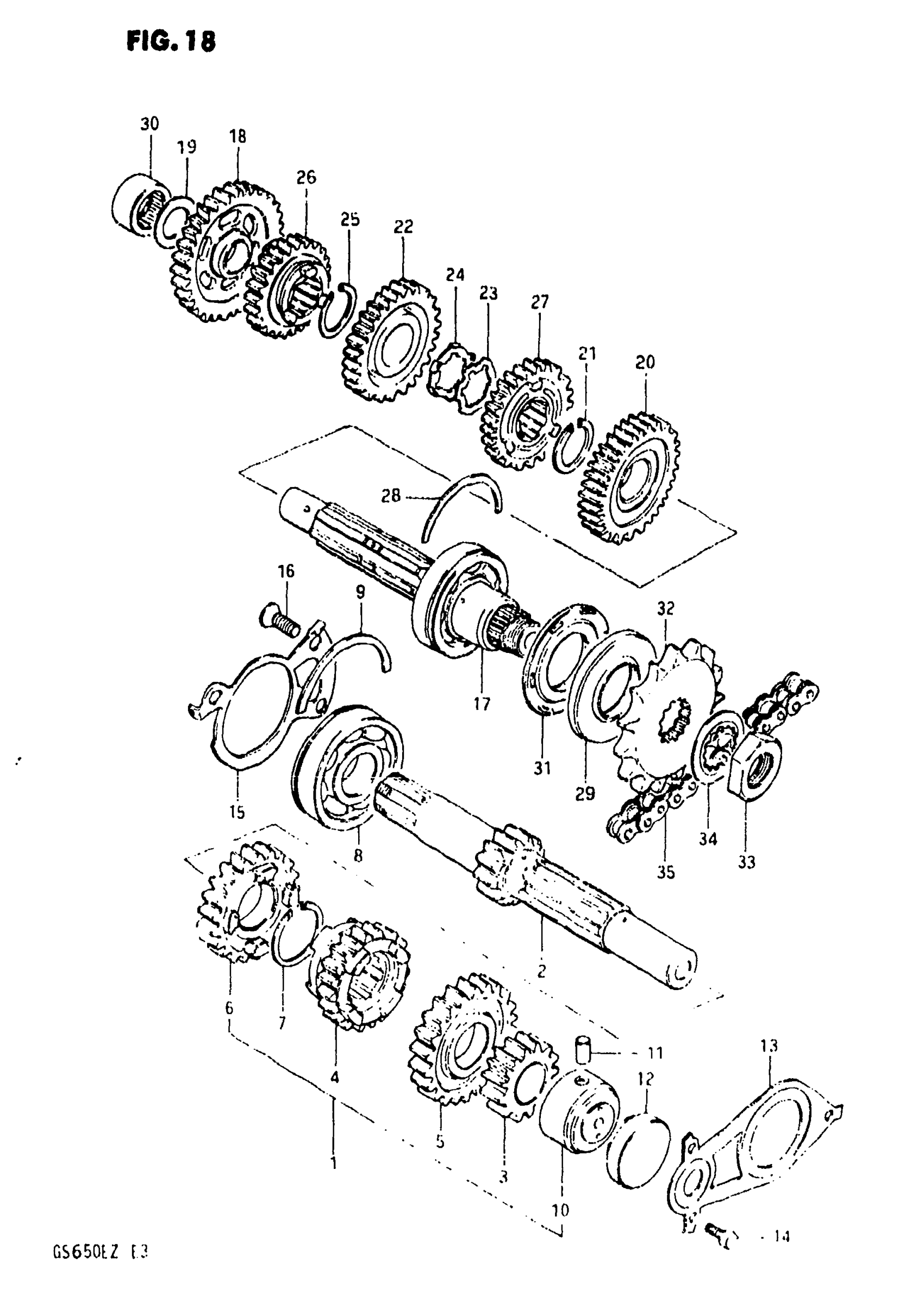

Suzuki GS650E (1982) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2

24120-34500

Unavailable

2

COUNTERSHAFT (NT:12)

24121-34500

Unavailable

3

GEAR, 2ND DRIVE (NT:16) | Includes Item(s) 4 - 7

24221-34500

Unavailable

4

GEAR, 3RD DRIVE (NT:19)

24231-34500

Unavailable

5

GEAR, 4TH DRIVE (NT:21)

24240-34500

Unavailable

6

GEAR, 5TH DRIVE (NT:22)

24250-34500

Unavailable

7

CIRCLIP

09380-25010

$2.91

8

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

9

C RING This part replaces 09390-62006.

09390-62012

$7.31

10

NO DESCRIPTION AVAILABLE This part replaces 09263-20029.

09263-20030

Unavailable

11

PIN

04221-07129

$1.86

12

PLUG

09241-34001

Unavailable

13

HOLDER, OIL SEAL This part replaces 23117-47000.

23117-44000

Unavailable

14

BOLT This part replaces 01107-06128.

01500-06127

$1.97

15

HOLDER, BEARING

24741-44000

Unavailable

16

SCREW This part replaces 02122-06168.

02122-06167

$1.49

17

NO DESCRIPTION AVAILABLE This part replaces 24100-34810.

24100-34812

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 24100-34811.

24100-34812

Unavailable

18

GEAR, 1ST DRIVEN (NT:33)

24310-34500

Unavailable

19

WASHER

08211-20341

$2.80

20

GEAR, 2ND DRIVEN (NT:29)

24320-34500

Unavailable

21

CIRCLIP

09380-25010

$2.91

22

GEAR, 3RD DRIVEN (NT:26)

24330-34500

Unavailable

23

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

24

LOCK WASHER, RH

09169-25001

$2.70

25

CIRCLIP

09380-25010

$2.91

26

GEAR, 4TH DRIVEN (NT:24)

24341-34500

Unavailable

27

GEAR, 5TH DRIVEN (NT:22)

24351-34500

Unavailable

28

C RING This part replaces 09390-62006.

09390-62012

$7.31

29

OIL SEAL, LH

09283-32015

$15.74

30

BEARING, RH (20X34X17) This part replaces 09263-20028.

09263-20027

Unavailable

31

OIL SEAL

09282-32002

$11.65

32

SPROCKET, ENG 1 This part replaces 27511-47000.

27511-47B00

$40.28

33

NUT (H:12)

09140-20009

Unavailable

33

NUT (H:15.5)

09140-20011

Unavailable

34

WASHER (25.3X41.6X1) This part replaces 09167-25011.

09167-25019

$2.19

35

NO DESCRIPTION AVAILABLE This part replaces 27600-34560.

27600-17C20-106

Unavailable
