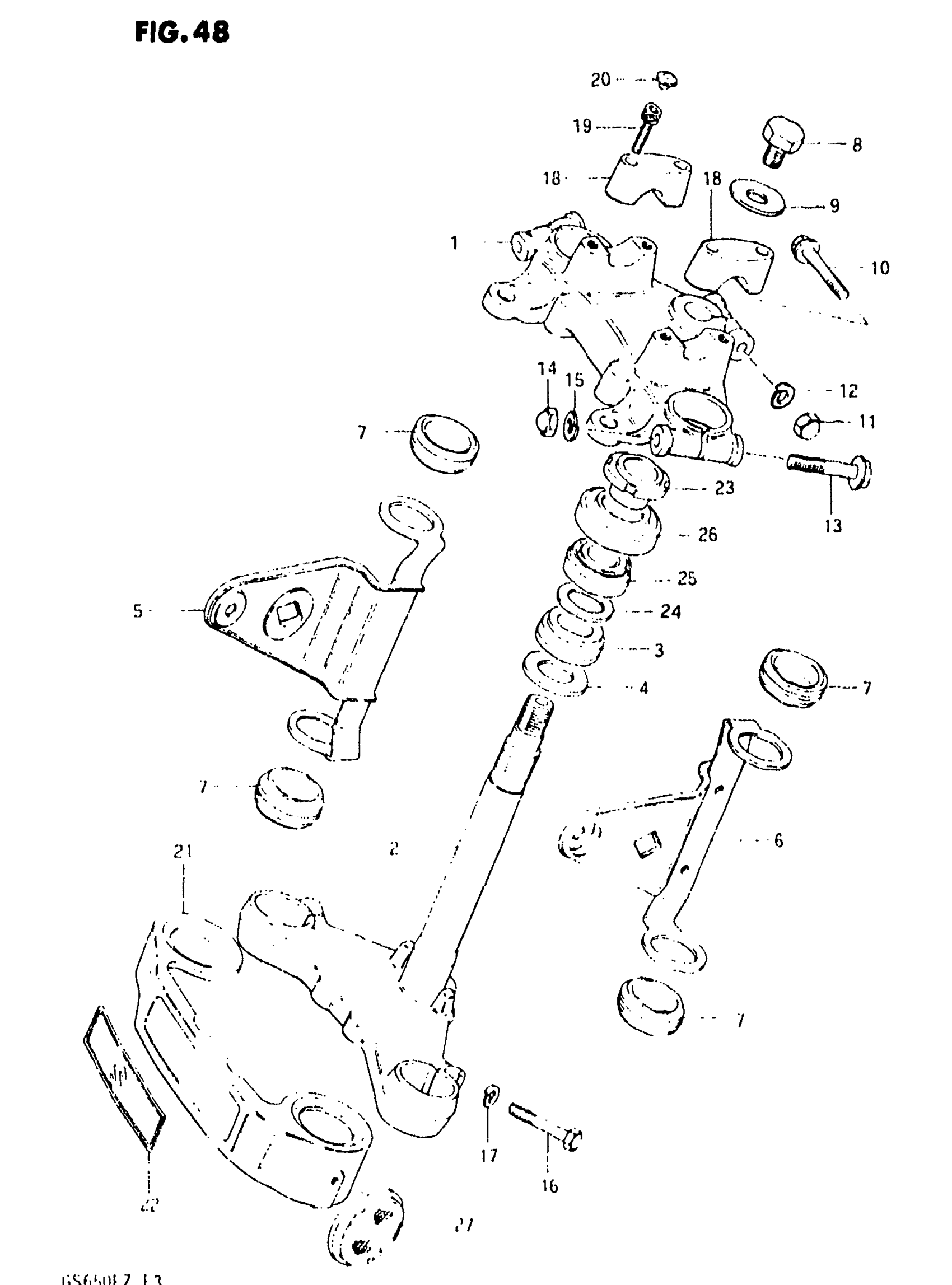

Suzuki GS650E (1982) STEERING STEM (MODEL Z) Diagram

#

Description
Price

1

STEM HEAD, STEERING | BLACK

51311-34200-291

Unavailable

2

STEERING STEM SET | Includes Item(s) 3 - 4 This part replaces 51401-34810.

51400-44870

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE | BLACK This part replaces 51530-34200-291.

51500-34810-291

Unavailable

6

BRACKET, HEADLAMP LH | BLACK

51540-34200-291

Unavailable

7

CUSHION This part replaces 51553-47000.

51553-34280

$5.50

8

BOLT

09104-12015

Unavailable

9

WASHER

09160-12048

Unavailable

10

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

11

NUT This part replaces 08313-11085.

08313-1008B

$2.80

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

BOLT This part replaces 01517-10558.

01550-10557

$3.91

14

NUT

09145-10002

Unavailable

15

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

16

BOLT This part replaces 01107-10408.

01500-10407

$3.55

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

CLAMP, HANDLEBAR UPPER | BLACK

56211-34300-291

Unavailable

19

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

20

CAP

09250-06004

$1.49

21

COVER, FRONT FORK

51871-34501

Unavailable

22

EMBLEM

68211-34500

Unavailable

23

NUT, STEERING STEM

51631-34200

Unavailable

24

WASHER

09160-18002

$2.38

25

BEARING

09265-25008

Unavailable

26

SEAL,DUST This part replaces 51643-40501.

51643-40503

$6.15

27

REFLEX REFLECTOR, FRONT

35950-49080

$17.24
