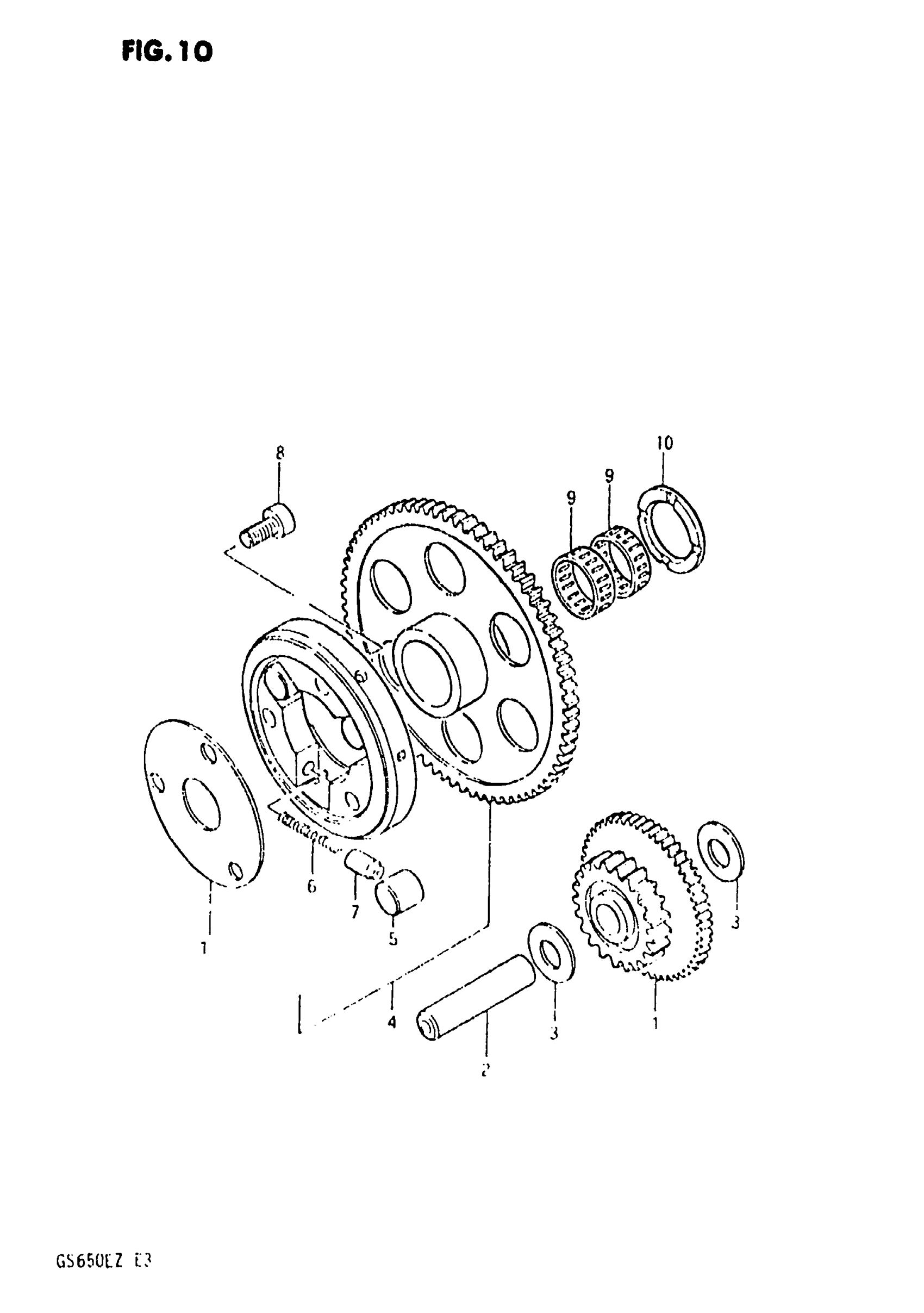

Suzuki GS650E (1982) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE (NT:52/21)

12611-47000

Unavailable

2

PIN

09206-13003

$15.70

3

WASHER

09160-13003

$1.99

4

STARTER CLUTCH SET | Includes Item(s) 5 - 7

12600-34820

Unavailable

5

ROLLER

09261-15001

$3.29

6

SPRING

09440-04015

$2.22

7

PIECE, PUSH

12633-31000

$8.77

8

BOLT This part replaces 09106-08006.

07130-0816A

$3.16

9

BEARING

09263-25030

Unavailable

10

WASHER,25X38X1 This part replaces 09160-25019.

09160-25080

$19.37

11

SHIM, STARTER CLUTCH

12649-45000

$9.17
