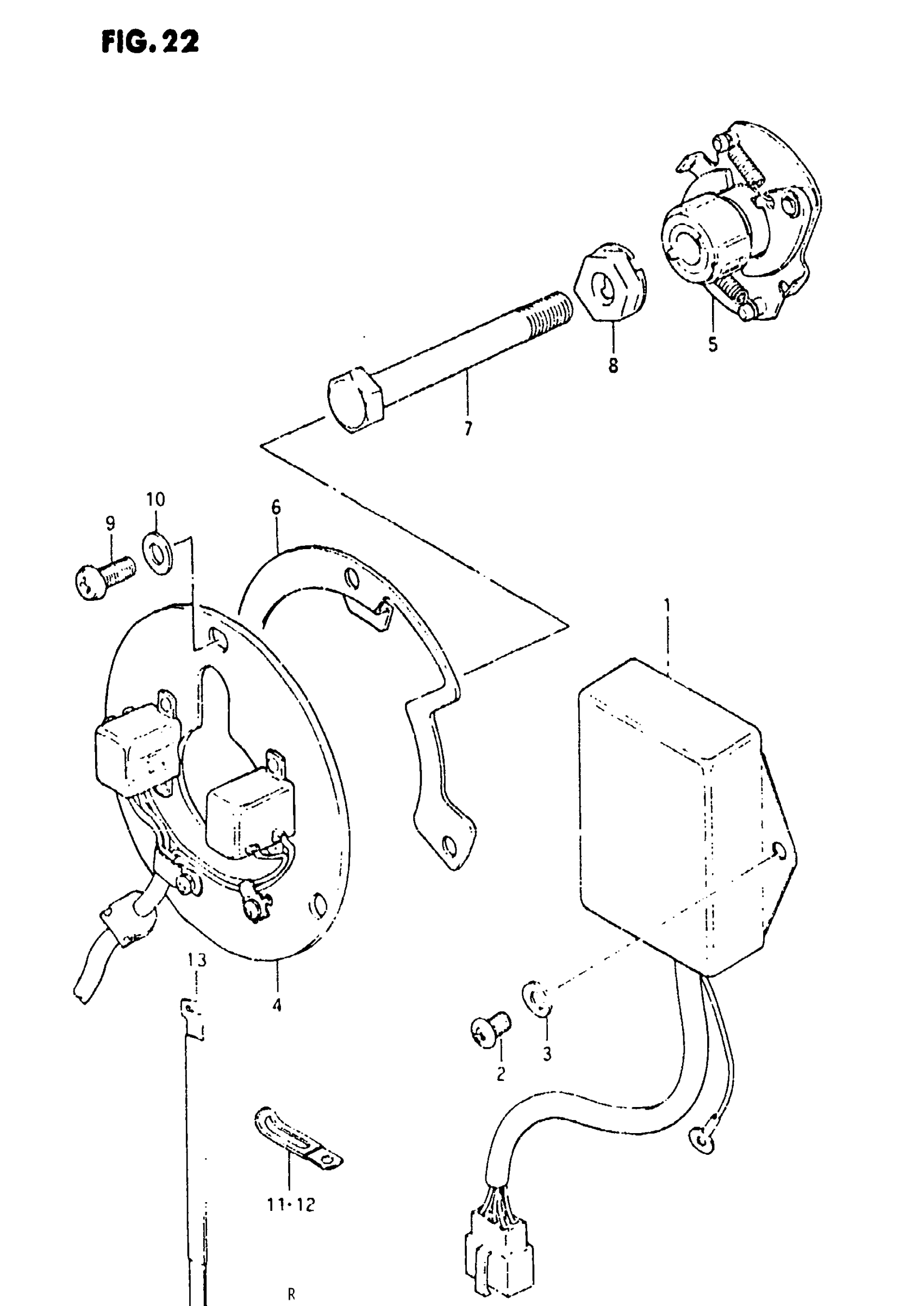

Suzuki GS650E (1982) SIGNAL GENERATOR Diagram

#

Description
Price

1

IGNITER UNIT

32900-47320

Unavailable

2

SCREW This part replaces 02112-06108.

02112-06107

$1.49

3

WASHER This part replaces 08322-21068.

08322-01067

$2.13

4

NO DESCRIPTION AVAILABLE This part replaces 33110-47020.

33110-47030

Unavailable

5

GOVERNOR ASSY, ADVANCE

33120-34520

Unavailable

6

PLATE, TIMING

33371-45001

Unavailable

7

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

8

WASHER

33465-47000

Unavailable

9

SCREW

09125-05024

$1.72

10

WASHER This part replaces 09160-05027.

08322-01057

$2.13

11

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

12

CLAMP This part replaces 09404-08401.

09404-08420

$3.16

13

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
