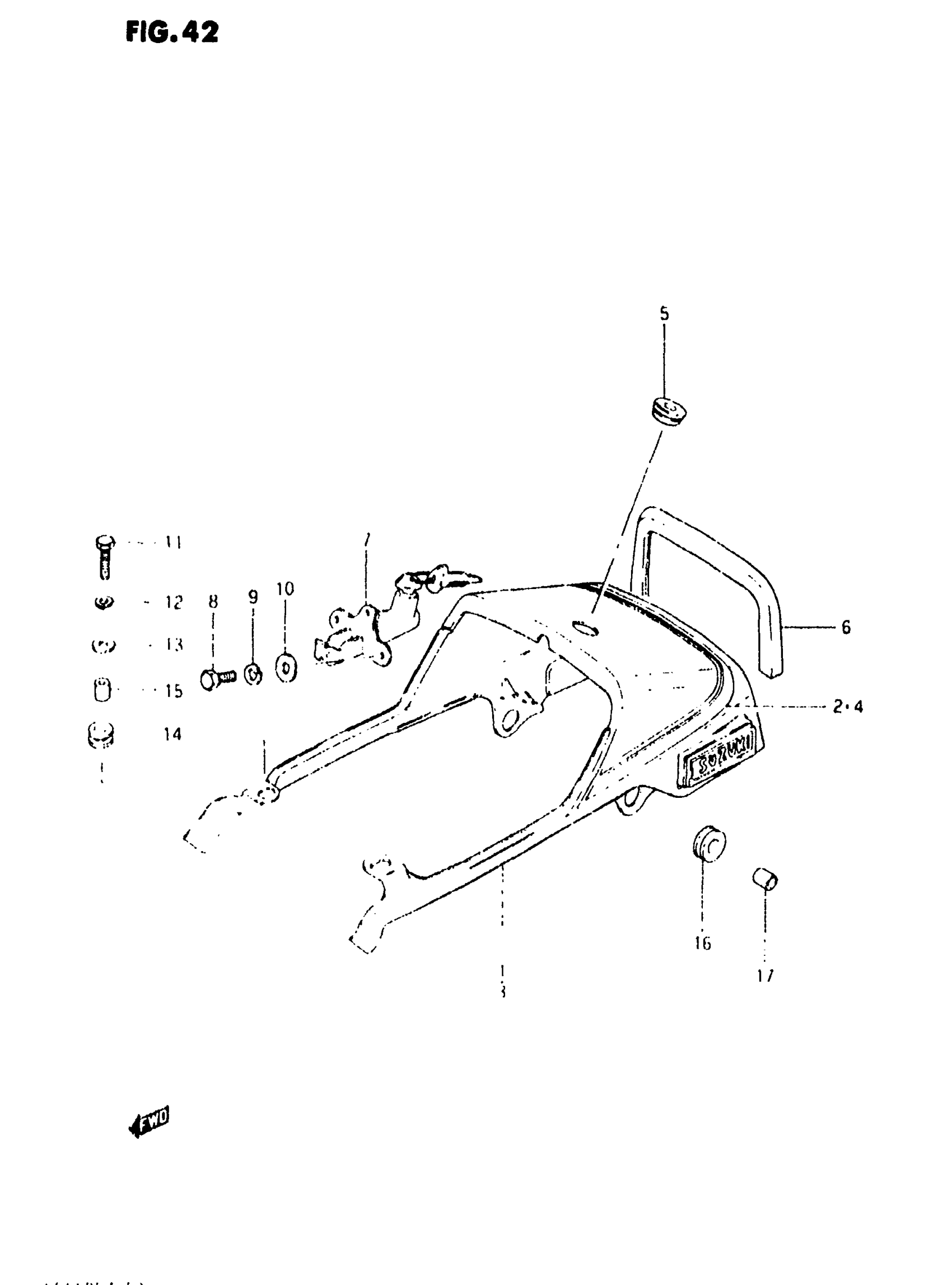

Suzuki GS650E (1982) SEAT TAIL COVER (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 45500-34540-13Z.

45511-34500

Unavailable

2

TAPE SET

68167-34530-75F

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 45500-34540-03F.

45511-34500

Unavailable

4

TAPE SET

68167-34530-81E

Unavailable

5

GROMMET

45522-49200

$4.58

6

CUSHION

45522-34500

Unavailable

7

LOCK ASSY, SEAT

95700-49830

Unavailable

8

BOLT This part replaces 01107-06128.

01500-06127

$1.97

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

BOLT This part replaces 01107-06208.

01500-06207

$2.28

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

WASHER This part replaces 09160-06012.

09160-06054

$1.62

14

CUSHION This part replaces 09320-10011.

09320-10072

$2.32

15

SPACER, FRONT

09180-07004

$2.30

16

CUSHION, REAR

09320-13007

$3.49

17

SPACER,8.5X14X1 This part replaces 09180-08083.

09180-08201

$3.05
