1982 Suzuki GS650E Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 1982 Suzuki GS650E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

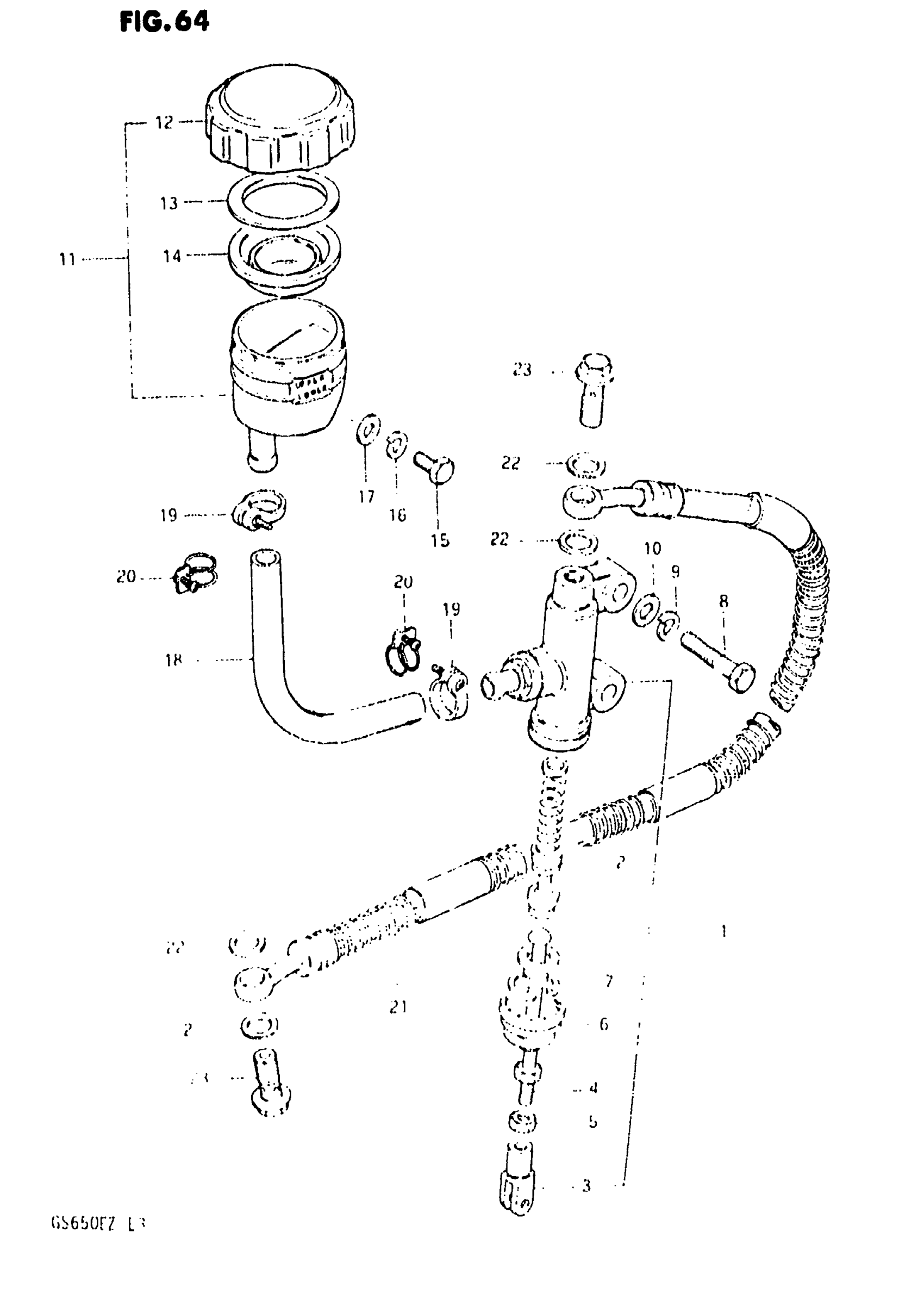

1982 Suzuki GS650E Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY,R | MODEL X This part replaces 69600-47002.

69600-47011

1
Out of stock

1

CYLINDER ASSY,R | MODEL Z; Includes Item(s) 2 - 7 This part replaces 69600-47003.

69600-47011

1
Out of stock

2

PISTON & CUP SET | MODEL X This part replaces 69600-45810.

69600-45820

1
Out of stock

2

PISTON & CUP SET | MODEL Z

69600-45820

1
Out of stock

3

YOKE | MODEL X This part replaces 69692-45002.

69692-34300

1
Out of stock

3

YOKE | MODEL Z

69692-34300

1
Out of stock

4

ROD, PUSH

69670-45001

1
Out of stock

5

NUT | MODEL X This part replaces 08310-12088.

08310-00087

2
Out of stock

5

NUT | MODEL Z This part replaces 69693-34300.

69693-05A00

1
Out of stock

6

BOOT

69691-45001

1
Out of stock

7

CIRCLIP

51162-70040

1
Out of stock

8

BOLT This part replaces 01107-08308.

01500-08307

2
Out of stock

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

2
Out of stock

10

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

11

TANK ASSY,RR RS | Includes Item(s) 12 - 14 This part replaces 69740-34230.

69740-31D00

1
Out of stock

12

CAP This part replaces 59669-33603.

59669-07D00

1
Out of stock

13

PLATE, DIAPHRAGM

59668-18441

1
Out of stock

14

DIAPHRAGM

59667-18441

1
Out of stock

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

1
Out of stock

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

1
Out of stock

17

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

18

HOSE

69731-34500

1
Out of stock

19

CLAMP | MODEL X

69735-34200

2
Out of stock

20

CLAMP | MODEL Z This part replaces 09400-16302.

09400-16304

2
Out of stock

21

HOSE, REAR BRAKE

69480-34503

1
Out of stock

22

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock

23

UNION This part replaces 09360-10007.

09360-10017

2
Out of stock
