1982 Suzuki GS650E Rear Combination Lamp Diagram

← All diagrams

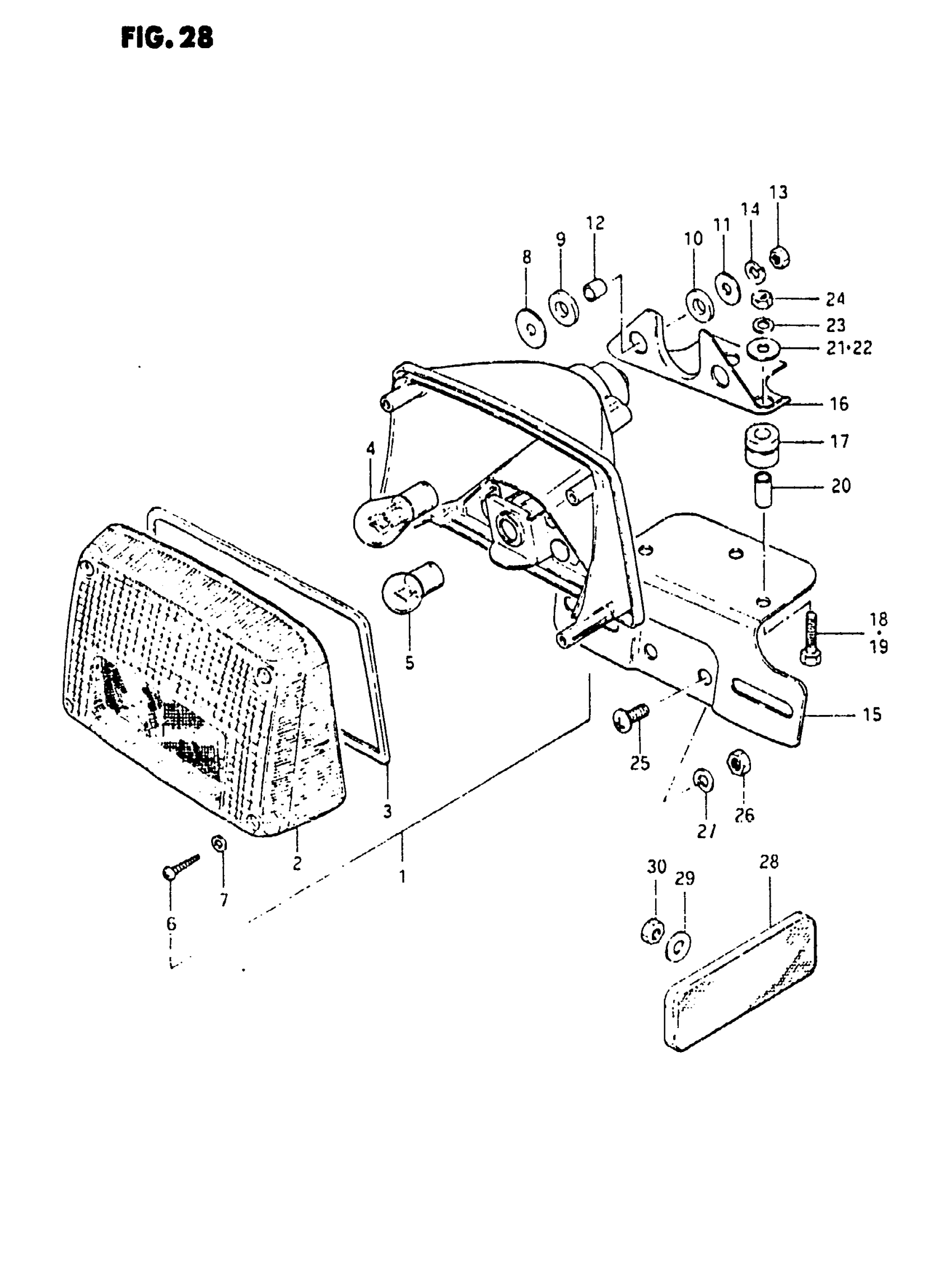

Find the part on the Rear Combination Lamp diagram for your 1982 Suzuki GS650E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS650E Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP, REAR COMBINATION | Includes Item(s) 2 - 7 This part replaces 35710-49030.

35710-34310

1
Out of stock

2

LENS

35712-49031

1
Out of stock

3

GASKET

35713-49030

1
Out of stock

4

BULB (12V,32/3CP)

09471-12035

1
Out of stock

5

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

1
Out of stock

6

SCREW This part replaces 35627-49030.

03511-0416A

4
Out of stock

7

GASKET

35627-43010

4

$2.65

In stock

8

WASHER This part replaces 09160-06007.

09160-06084

2
Out of stock

9

CUSHION

09320-09004

2
Out of stock

10

CUSHION

09320-09003

2
Out of stock

11

WASHER This part replaces 09160-06012.

09160-06054

2
Out of stock

12

SPACER (6.1X9X7.5)

09180-06038

2
Out of stock

13

.NUT This part replaces 08310-11068.

08310-00067

2
Out of stock

14

2

$2.28

In stock

15

PLATE, LICENSE

35927-49031

1
Out of stock

16

BRACKET, LICENSE PLATE

35928-49031

1
Out of stock

17

CUSHION This part replaces 35794-49000.

35765-30950

3
Out of stock

18

BOLT This part replaces 01107-06258.

01500-06257

2
Out of stock

19

BOLT, REAR This part replaces 01107-06308.

01500-06307

1
Out of stock

20

SPACER (6.5X9X15.5) This part replaces 09180-06087.

09180-06269

3
Out of stock

21

WASHER This part replaces 09160-06007.

09160-06084

3
Out of stock

22

WASHER

09169-06016

1
Out of stock

23

3

$2.28

In stock

24

.NUT This part replaces 08310-11068.

08310-00067

3
Out of stock

25

SCREW

02142-06167

2
Out of stock

26

.NUT This part replaces 08310-11068.

08310-00067

2
Out of stock

27

2

$2.28

In stock

28

REFLECTOR, REAR SIDE This part replaces 35970-34530.

35970-24D60

2
Out of stock

29

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

30

NUT This part replaces 08310-11058.

08310-00057

2
Out of stock
