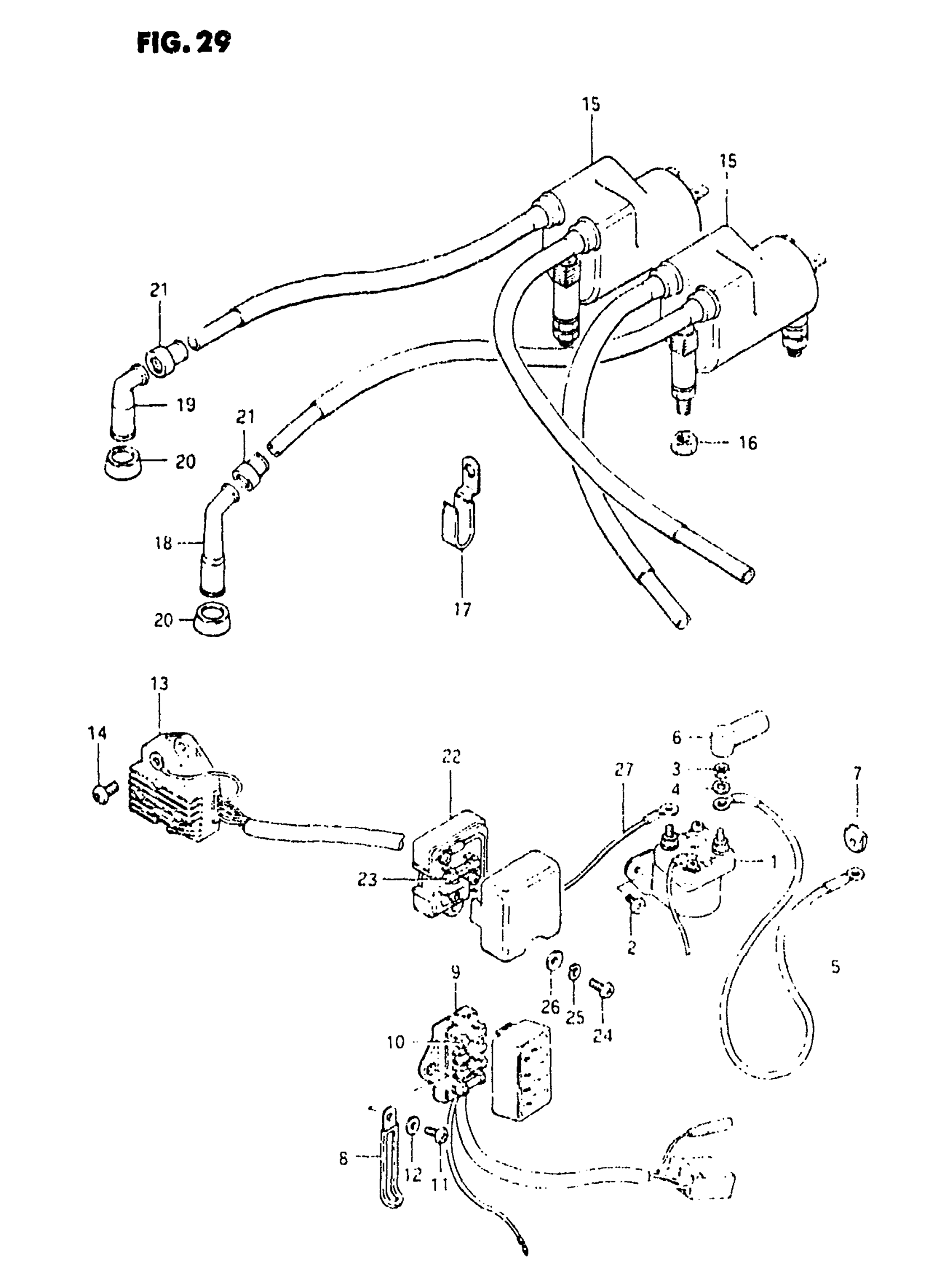

Suzuki GS650E (1982) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$69.94

2

SCREW This part replaces 02112-06088.

02112-06087

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$1.91

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

5

LEAD WIRE, STARTING MOTOR This part replaces 33850-47020.

33850-48B00

Unavailable

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$7.40

7

CROMMET

31482-47000

$3.80

8

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.81

9

BOX ASSY,FUSE | Includes Item(s) 10 - 10 This part replaces 36740-34500.

36740-34X01

Unavailable

10

FUSE (15A)

09481-15001

$2.14

10

FUSE (10A)

09481-10001

$1.80

11

SCREW This part replaces 02112-06128.

02112-06127

$1.89

12

WASHER This part replaces 08322-21068.

08322-01067

$1.93

13

RECTIFIER ASSY This part replaces 32800-47020.

32800-47121

Unavailable

14

SCREW This part replaces 02112-06168.

02112-06167

$1.46

15

NO DESCRIPTION AVAILABLE This part replaces 33410-34520.

33410-34521

Unavailable

16

.NUT This part replaces 08310-11068.

08310-00067

$1.91

17

CLAMP This part replaces 09403-06307.

09403-06329

$2.52

18

CAP, SPARK PLUG (L)

33510-45010

$24.59

19

CAP, SPARK PLUG (S)

33510-43010

$23.90

20

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.60

21

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.15

22

TERMINAL, POWER SOURCE | Includes Item(s) 23

38850-47000

Unavailable

23

FUSE (10A)

09481-10001

$1.80

24

SCREW This part replaces 02112-06168.

02112-06167

$1.46

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

26

WASHER This part replaces 08322-21068.

08322-01067

$1.93

27

LEAD WIRE

36851-34500

Unavailable
