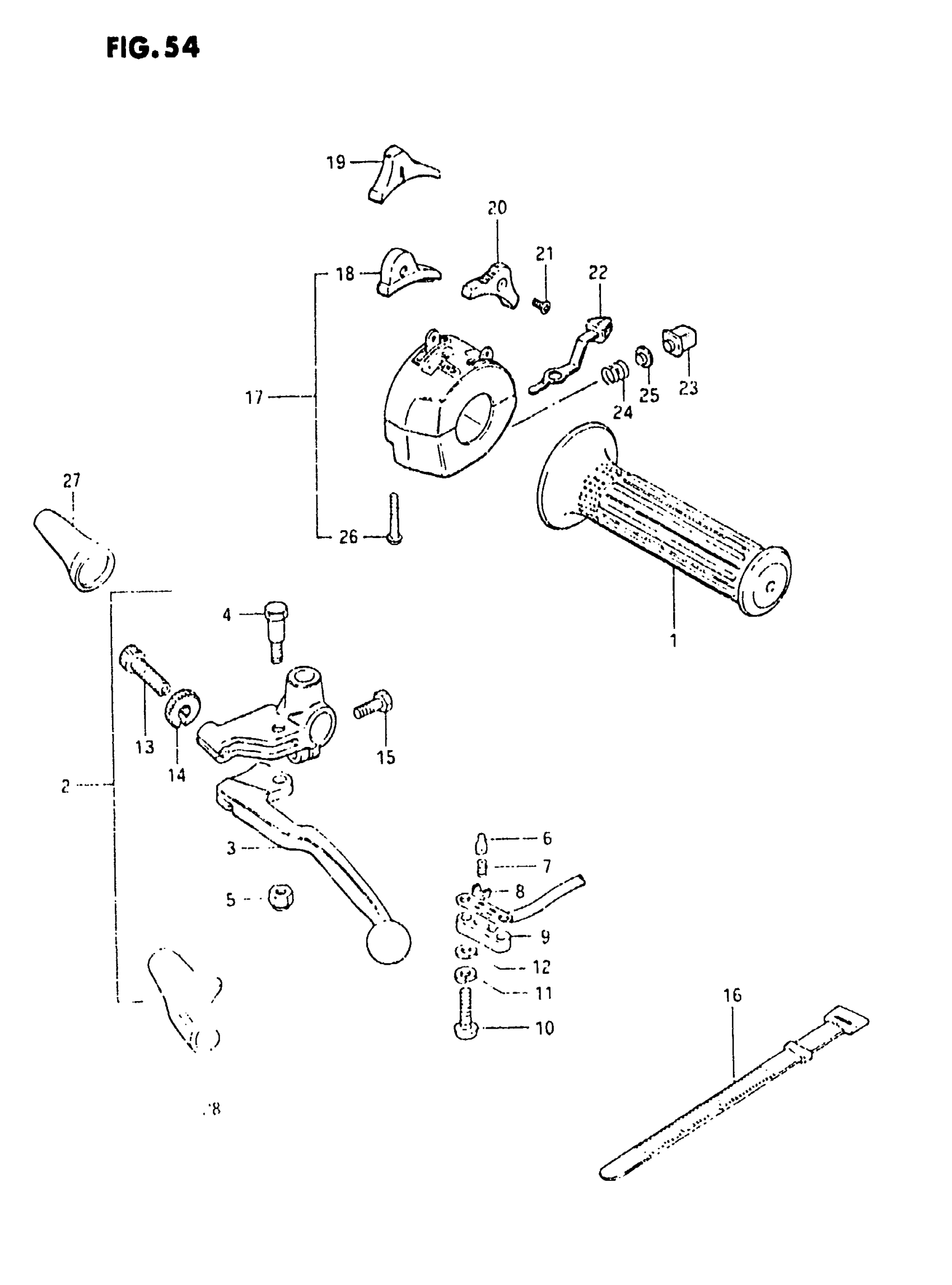

Suzuki GS650E (1982) LEFT HANDLE SWITCH (MODEL X) Diagram

#

Description
Price

1

GRIP This part replaces 57211-45030.

57211-24201

Unavailable

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 15 This part replaces 57500-49112.

57500-49301

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT This part replaces 57431-11011.

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

7

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

8

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

9

COVER

57481-33010

$5.84

10

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

11

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

12

WASHER This part replaces 08322-21038.

08322-01037

$1.93

13

ADJUSTER, CABLE

57441-11010

$5.62

14

NUT

57442-11010

$2.79

15

BOLT

57451-49100

Unavailable

16

BAND (L:120)

09407-12402

$3.04

17

SWITCH ASSY, HANDLE LH | Includes Item(s) 18 - 26

37400-34280

Unavailable

18

KNOB, STOPPER

37414-45602

Unavailable

19

KNOB, DIMMER (OPT)

37411-45012

$5.24

20

KNOB, DIMMER

37421-45012

$6.17

21

SCREW This part replaces 02122-03068.

02122-03067

$1.80

22

KNOB, TURN SIGNAL

37513-45011

$7.22

23

BUTTON, HORN

57371-45000

$4.52

24

SPRING

57382-45000

$3.37

25

CONTACT

57372-45000

$4.45

26

SCREW This part replaces 02112-05258.

02112-05257

$1.49

27

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

28

COVER

57661-31000

$7.25
