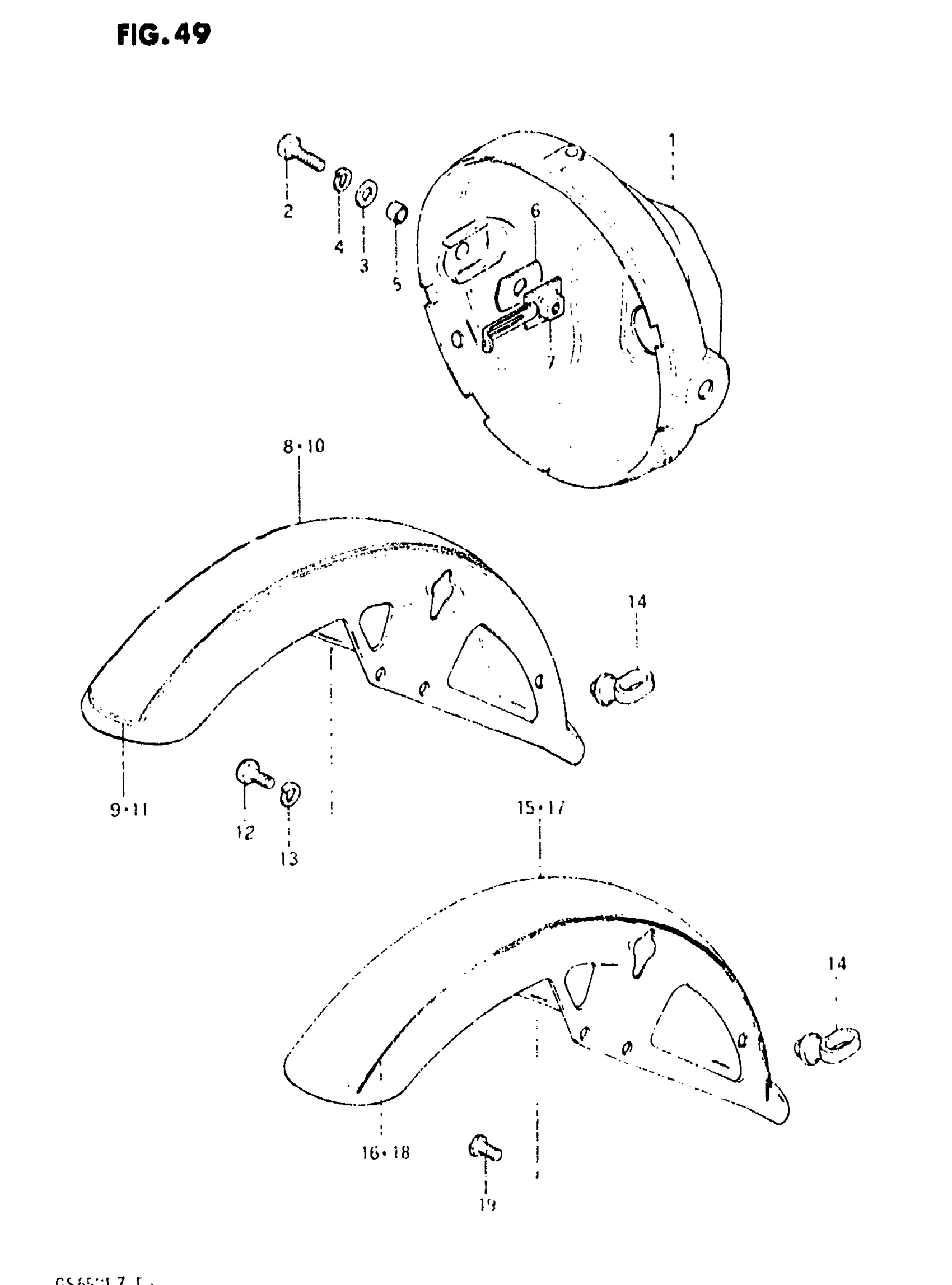

Suzuki GS650E (1982) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK) | BLACK This part replaces 51811-34500-291.

51811-34501-019

Unavailable

2

BOLT

01204-08257

$1.96

3

WASHER This part replaces 08322-11086.

08322-0108A

$1.92

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

SPACER This part replaces 09180-08030.

09180-08187

$2.65

6

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

7

PLATE,HEADLAMP This part replaces 51820-45000.

51820-45001

$5.50

8

NO DESCRIPTION AVAILABLE | SILVER This part replaces 53100-34500-737.

53110-34510-13L

Unavailable

9

TAPE | MODEL X

68150-47300-79L

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL X FRANCY This part replaces 53100-34500-10S.

53110-34510-13L

Unavailable

11

TAPE | MODEL X

68150-47300-66N

Unavailable

12

PLUG, DRAIN | MODEL X This part replaces 01107-08168.

01500-0816B

$2.50

13

.LOCK WASHER | MODEL X This part replaces 08321-21088.

08321-01087

$2.13

14

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68

15

NO DESCRIPTION AVAILABLE | BLACK This part replaces 53100-34520-13Z.

53110-34510-13L

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 68150-34510-75F.

68150-34500-75F

Unavailable

17

NO DESCRIPTION AVAILABLE | BLUE This part replaces 53100-34520-03F.

53110-34510-13L

Unavailable

18

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 68150-34510-81E.

68150-34500-81E

Unavailable

19

BOLT,TRIM TAB This part replaces 09100-08135.

09100-08215

Unavailable
