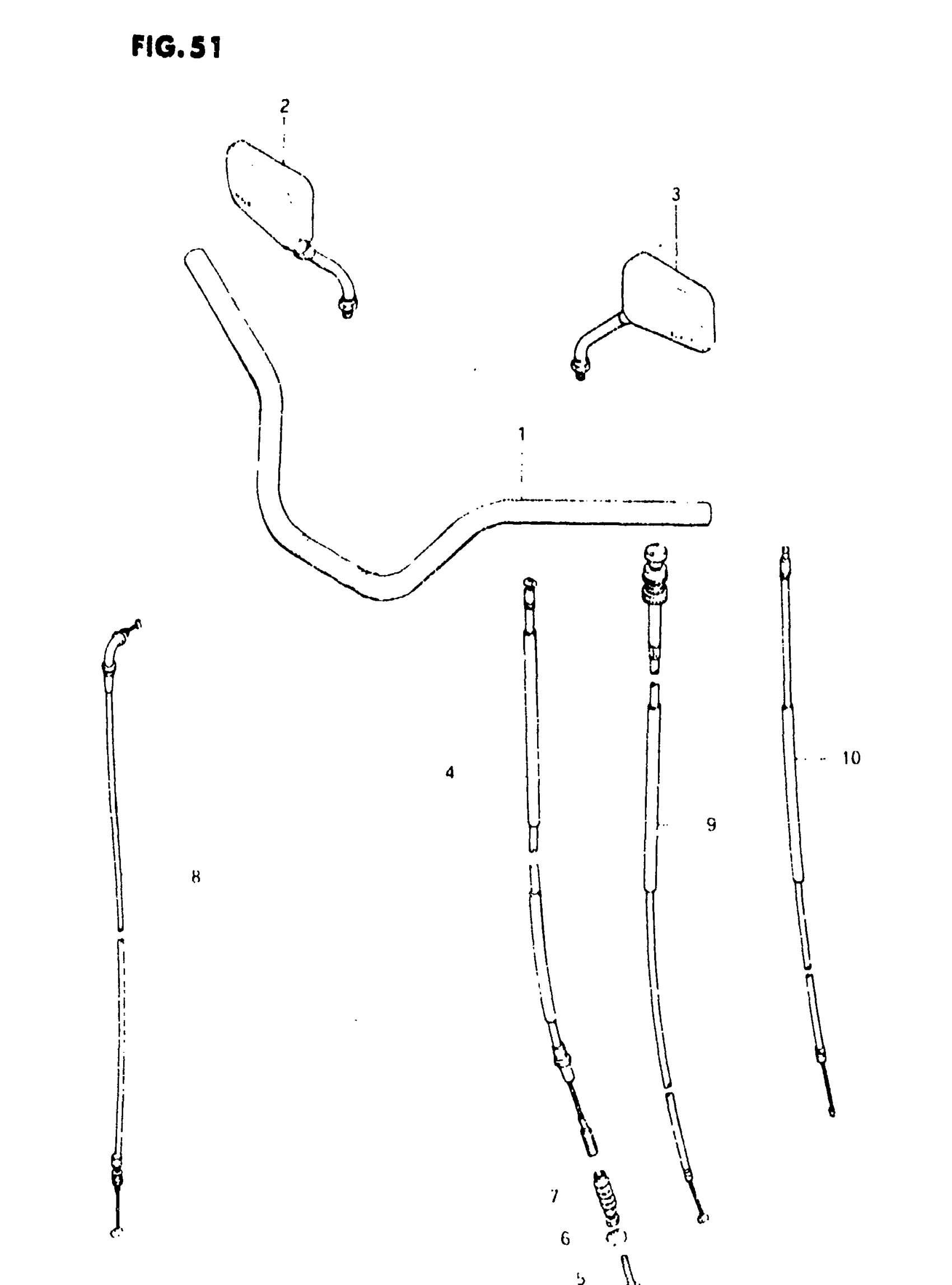

Suzuki GS650E (1982) HANDLEBAR Diagram

#

Description

Price

1

HANDLEBAR This part replaces 56110-34520-291.

56110-47300

Unavailable

2

MIRROR ASSY,REA This part replaces 56500-34300.

56500-01D02

$123.17

3

MIRROR ASSY,REA This part replaces 56600-34300.

56600-01D02

$125.48

4

CABLE,CLUTCH | Includes Item(s) 5 - 7 This part replaces 58200-34200.

58200-34X00

Unavailable

5

SCREW

09125-05034

Unavailable

6

PIN

09209-10019

Unavailable

7

DUST SEAL This part replaces 09287-07004.

09287-07003

Unavailable

8

CABLE, THROTTLE This part replaces 58300-44230.

58300-44232

Unavailable

9

CABLE, STARTER | MODEL X This part replaces 58400-47000.

58400-45110

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 58410-34520.

58410-34X04

Unavailable
