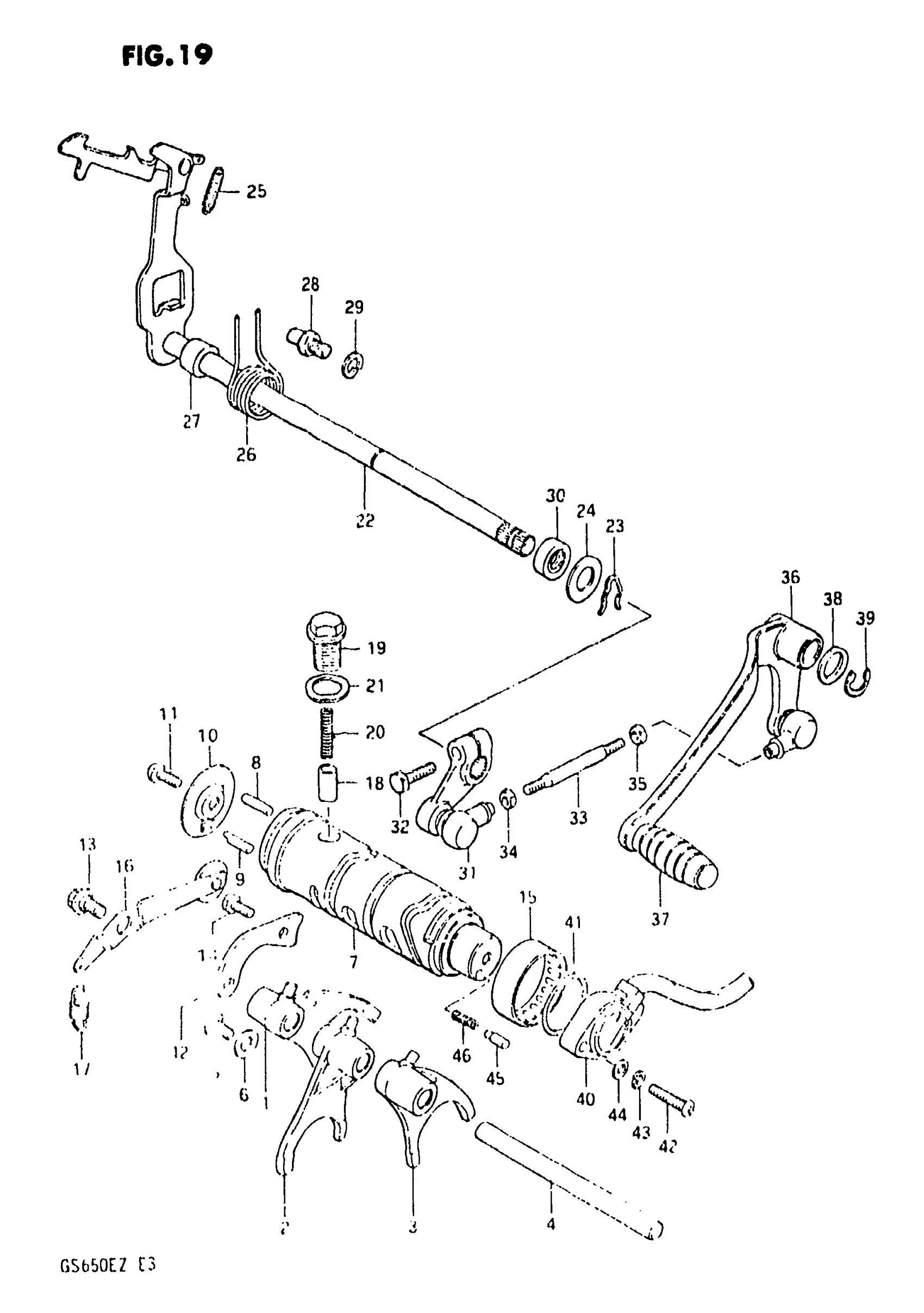

Suzuki GS650E (1982) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-34500

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-34500

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-34500

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

$23.07

5

SCREW

02142-06108

$2.45

6

WASHER

08211-06141

$1.59

7

CAM, GEAR SHIFTING

25311-34500

Unavailable

8

PIN

09261-04001

$1.72

9

PIN

09209-04013

Unavailable

10

HOLDER, DRIVE PIN

25322-44000

Unavailable

11

SCREW This part replaces 02112-06168.

02112-06167

$1.49

12

GUIDE, CAM This part replaces 25341-44000.

25341-33300

Unavailable

13

BOLT This part replaces 09111-06019.

09111-06054

$3.70

14

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

15

BEARING

09263-40001

$29.53

16

STOPPER, CAM NO.1

25350-44000

Unavailable

17

SPRING

09443-09007

$2.56

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

19

HOLDER, SPRING

25354-30000

$9.17

20

SPRING

09440-06020

$1.79

21

GASKET

09168-14004

$1.83

22

SHAFT, GEAR SHIFTING

25510-47000

Unavailable

23

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78

24

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

25

SPRING

09443-07013

$2.07

26

SPRING This part replaces 09444-26012.

09444-26013

$3.10

27

SPACER

09180-12068

$3.16

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

29

.LOCK WASHER This part replaces 09162-08005.

08321-01087

$2.13

30

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

31

ARM,GEAR SHIFT This part replaces 25520-47000.

25520-47021

$42.92

32

BOLT This part replaces 01107-06208.

01500-06207

$2.28

33

ROD, GEAR SHIFT LINK This part replaces 25525-47000.

25525-47020

$9.15

34

.NUT This part replaces 08310-11068.

08310-00067

$2.13

35

NUT, LH

09140-06011

$1.49

36

NO DESCRIPTION AVAILABLE | Includes Item(s) 37 This part replaces 25600-34500.

25600-34510

Unavailable

37

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

38

WASHER

09160-12011

$1.54

39

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

40

BODY, GEAR SHIFTING SWITCH

37720-45100

$101.35

41

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

42

SCREW This part replaces 02112-05208.

02112-05207

$1.97

43

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

44

WASHER This part replaces 08322-21058.

08322-01057

$2.13

45

CONTACT

09209-05011

$2.20

46

SPRING

09440-04010

$1.54
