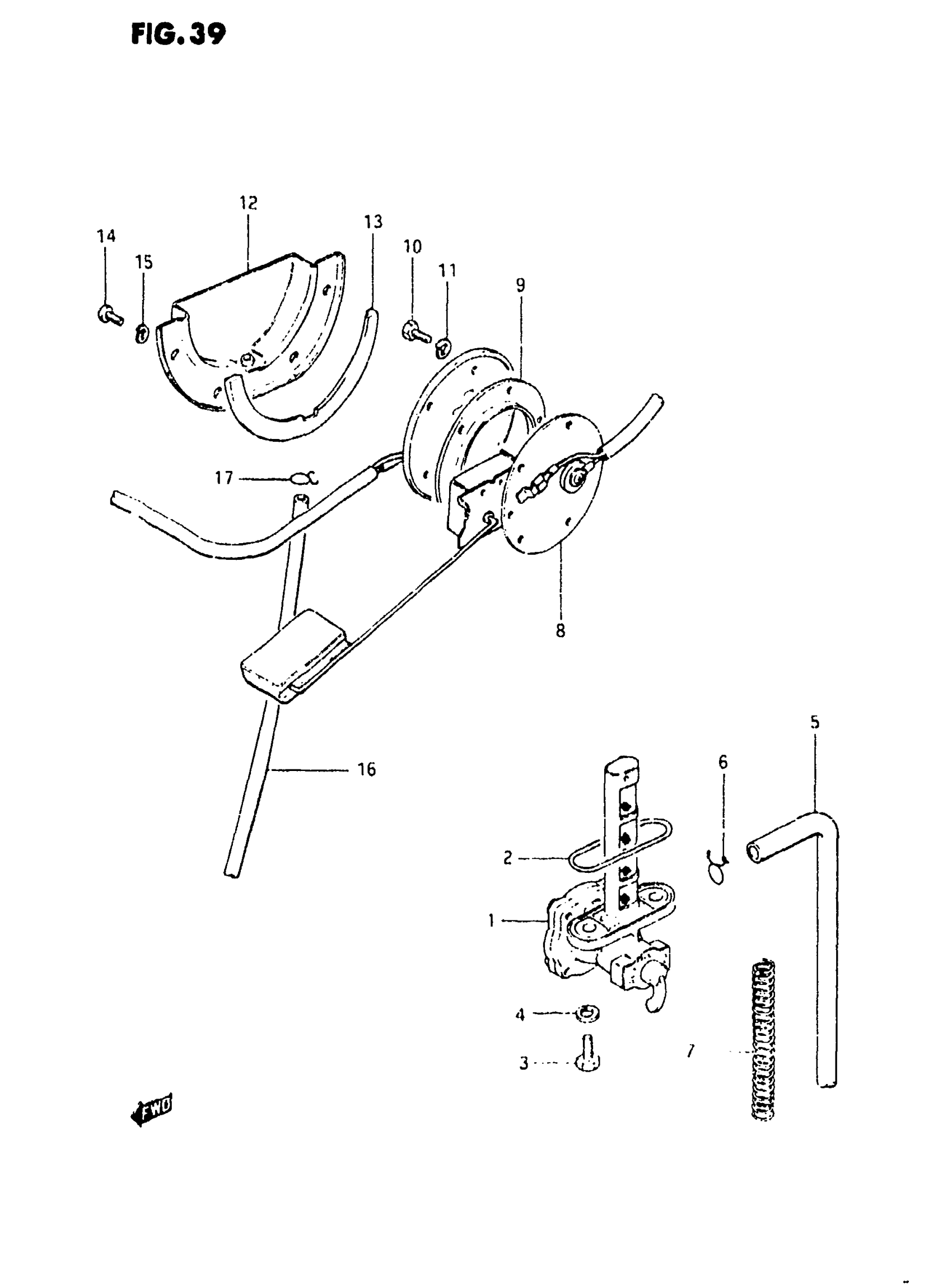

Suzuki GS650E (1982) FUEL COCK (MODEL Z) Diagram

#

Description
Price

1

COCK ASSY,FUEL | Includes Item(s) 2 This part replaces 44300-34470.

44300-45373

$72.12

2

O RING This part replaces 44348-49170.

44348-49171

$2.88

3

BOLT This part replaces 09128-06006.

09128-06057

$1.65

4

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

5

HOSE(7X10.2X200 This part replaces 09343-07073.

09352-70104-00B

$15.32

6

CLIP

09401-10403

$1.65

7

SPRING This part replaces 09440-13018.

09440-13043

$6.04

8

QUAGE ASSY, FUEL LEVEL | Includes Item(s) 9

34810-34500

Unavailable

9

GASKET

34825-45100

$5.80

10

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

PLATE, FUEL DRAIN

34885-34500

Unavailable

13

GASKET,FUEL DRA This part replaces 34888-34500.

34888-34501

Unavailable

14

SCREW This part replaces 02112-05088.

02112-05087

$1.49

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

16

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

17

CLIP

09401-08402

$1.49
