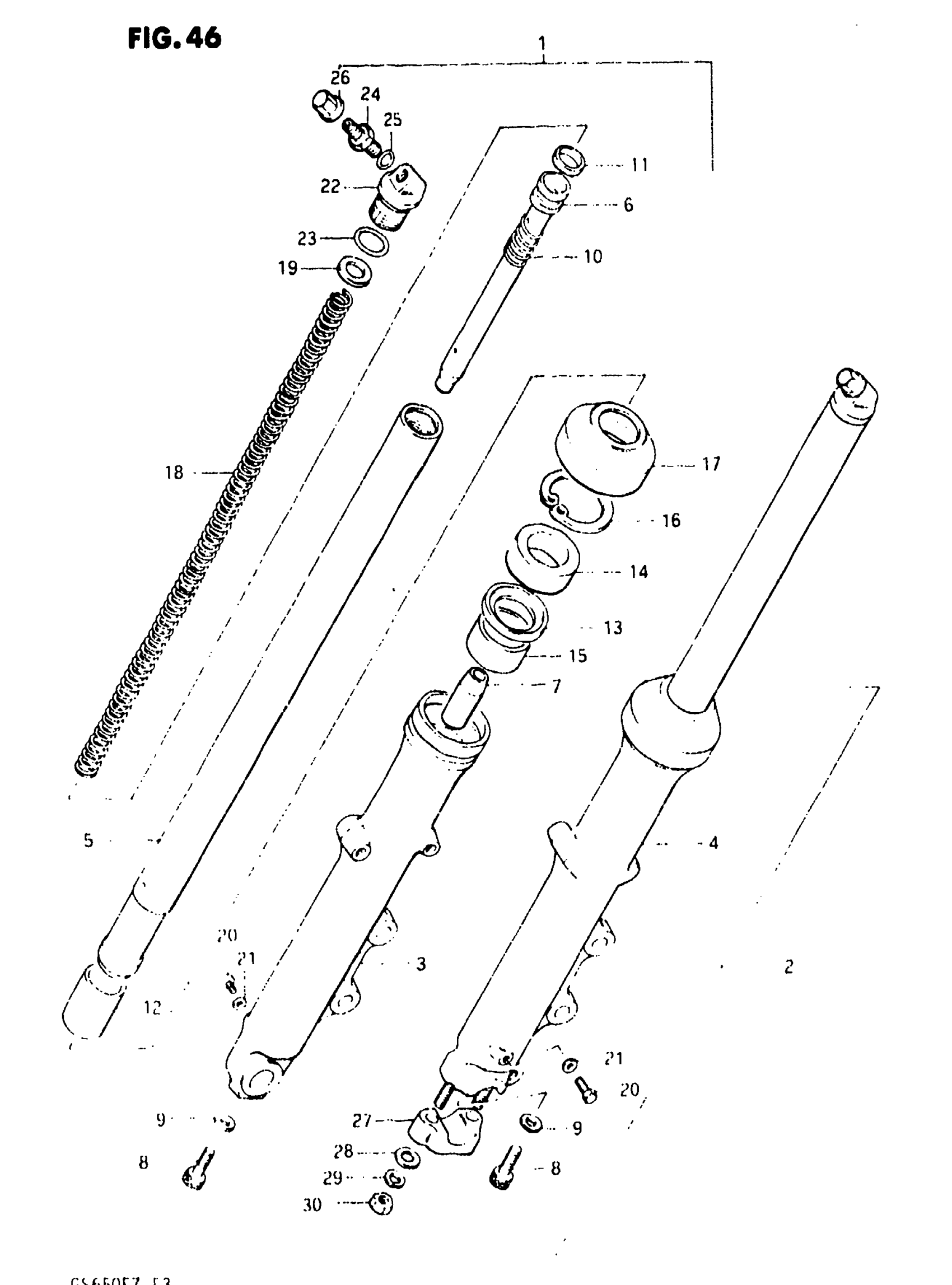

Suzuki GS650E (1982) FRONT FORK (MODEL Z) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-34540

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 30

51104-34540

Unavailable

3

OUTER TUBE, RH

51130-34540

Unavailable

4

OUTER TUBE, LH

51140-34540

Unavailable

5

INNER TUBE

51110-34540

Unavailable

6

PIPE, SEAT This part replaces 51146-34200.

51146-47600

Unavailable

7

PIECE, OIL LOCK

51195-45030

Unavailable

8

BOLT

51147-48130

$4.34

9

O RING This part replaces 51148-31030.

51148-36011

$3.56

10

SPRING

51177-45030

Unavailable

11

RING, PISTON

51196-31230

Unavailable

12

BUSH, GUIDE

51152-45400

$15.10

13

SPACER, SEAL This part replaces 51168-45031.

51168-30B00

$6.31

14

SEAL, OIL This part replaces 51153-34200.

51153-19D10

$22.96

15

PISTON

51121-45400

Unavailable

16

RING, STOPPER This part replaces 51156-45440.

51156-01A00

$4.34

17

DUST SEAL This part replaces 51571-34200.

51571-20520

Unavailable

18

SPRING

51171-34540

Unavailable

19

GUIDE, SPRING This part replaces 51192-45030.

51192-47200

Unavailable

20

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

21

GASKET

51183-31030

$3.77

22

BOLT

51351-45440

Unavailable

23

O RING This part replaces 51117-31030.

51181-31030

$4.37

24

VALVE, AIR

51293-45440

Unavailable

25

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

26

CAP

51294-45440

Unavailable

27

HOLDER, AXLE | LH This part replaces 51132-44040.

51132-44040-15T

Unavailable

28

WASHER | LH This part replaces 08322-21088.

08322-01087

$2.13

29

.LOCK WASHER | LH This part replaces 08321-21088.

08321-01087

$2.13

30

NUT | LH This part replaces 08310-12088.

08310-00087

$2.13
